Allen Key Adjustable Feet - ADJ1000
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £1.79 | £2.15 |
| 500 - 999 | £1.54 | £1.85 |
| 1000 - 4999 | £1.37 | £1.64 |
| 5000 - 9999 | £1.27 | £1.52 |
| 10000 + | £0.94 | £1.13 |
Product Specification
| Thread | M8 x 100mm |
| Base Diameter | 30mm |
| Weight Rating | 400kg |
| Base & Hex Nut Height | 15.0mm |
| Style | 4mm Swivel Base |
| Material | Zinc Plated stem & Polypropylene base |
Frequently Bought Together
Total Price: £0.00

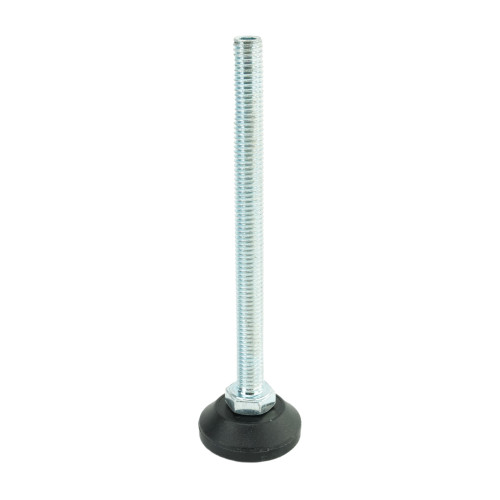

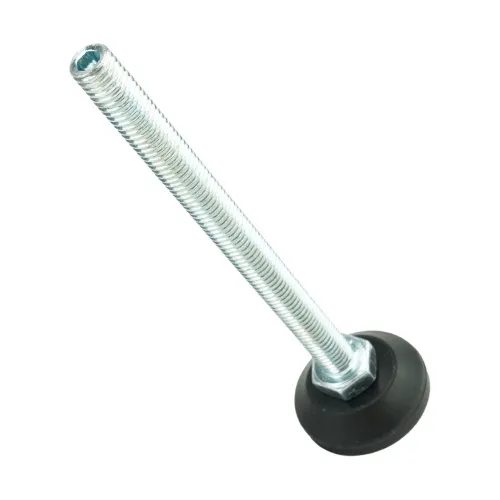

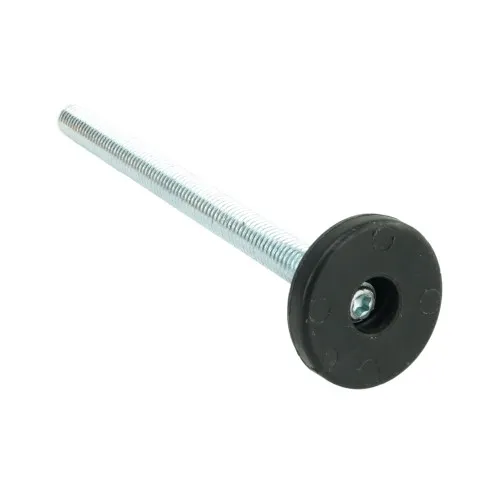

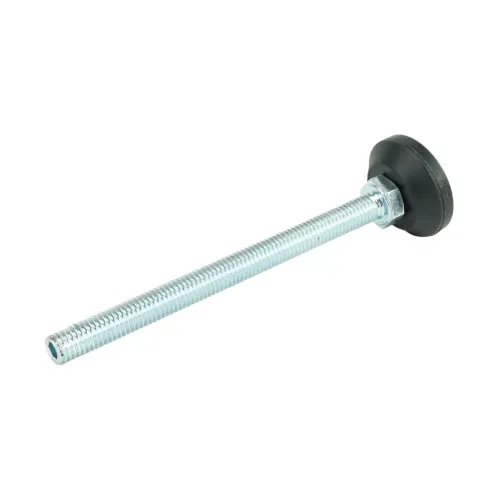

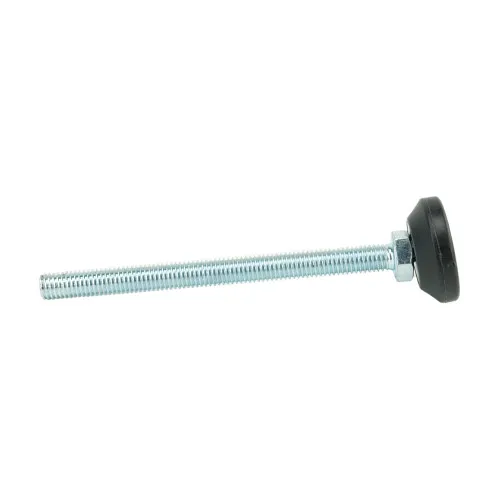

M8 x 100mm Allen Key Adjustable Foot | 30mm Base Diameter | 4mm Swivel Base | Zinc Plated Stem & Polypropylene Base
These M8 x 100mm Allen Key Adjustable Feet are designed for compact machinery where adjustment needs to be made neatly from above, giving installers an Allen key adjustable foot that can be set accurately once the frame is in position. The 30mm base has a 400kg weight rating while the 4mm swivel base allows the foot pad to settle more easily on slightly uneven floors.
The zinc plated stem gives the threaded section strength while the polypropylene base helps provide a clean contact surface for furniture and light machinery. The compact base footprint keeps the support point neat while still giving a practical load bearing surface. With a 15mm base and hex nut height, this option is suited to fabricated steel frames that need a practical adjustable support at the base.
Common Applications
- Conveyor support legs requiring M8 x 100mm threaded adjustment
- Above-base adjustment with an allen key using a swivel base
- Equipment installations needing a 30mm base with a 400kg static weight rating
- Inspection station supports where Allen key access helps simplify final levelling
M8 x 100mm 4mm Swivel Allen Key Adjustable Foot Dimensions
- Thread: M8 x 100mm
- Base Diameter: 30mm
- Weight Rating: 400kg
- Base & Hex Nut Height: 15.0mm
- Style: 4mm Swivel Base
- Material: Zinc Plated stem & Polypropylene base
View our full range of Allen Key Adjustable Feet.
