Self Adhesive ANSI Flange Discs - FD007

Product code: FD007
View All Specifications

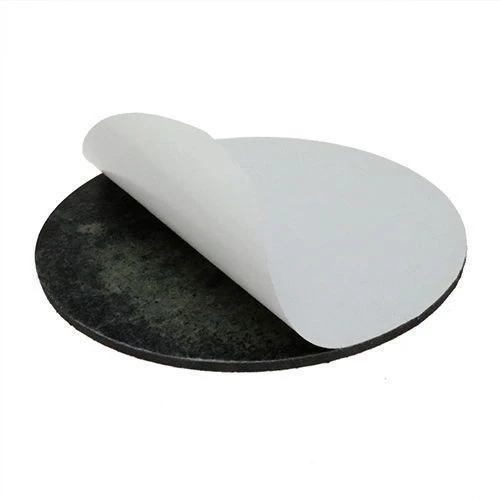

160mm Adhesive Flange Discs for Pipe Protection

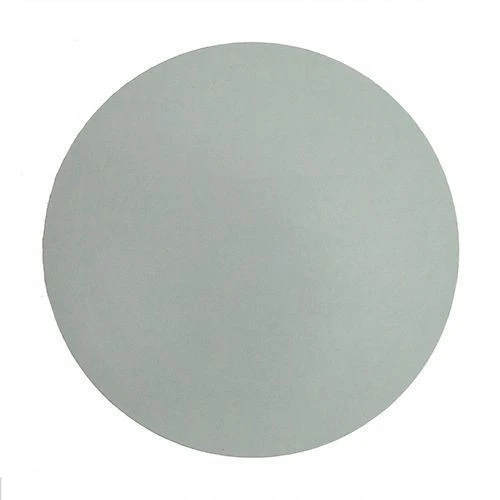

160mm Adhesive Flange Discs for Pipe Protection

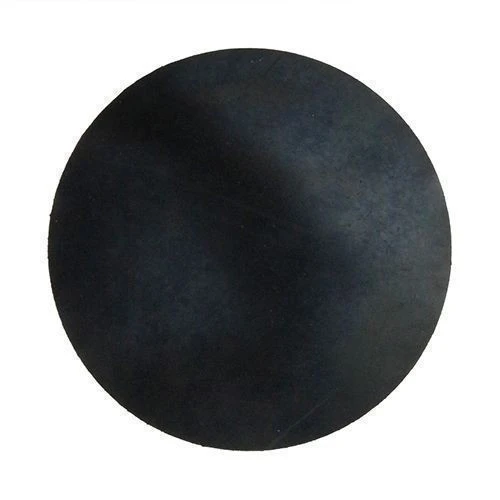

160mm Adhesive Flange Discs for Pipe Protection

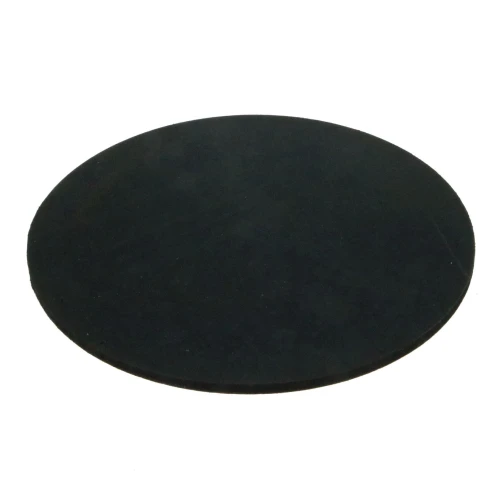

160mm Adhesive Flange Discs for Pipe Protection

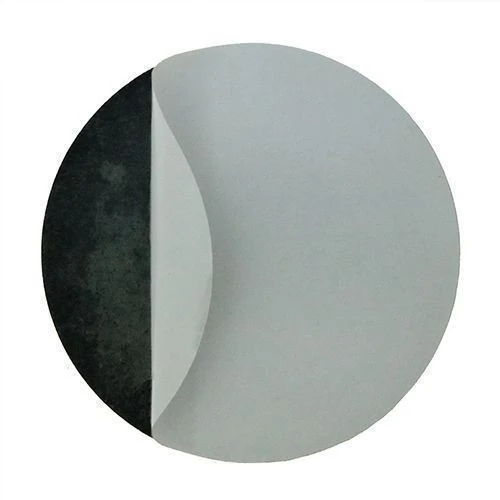

160mm Adhesive Flange Discs for Pipe Protection
160mm Adhesive Flange Discs for Pipe Protection
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £3.16 £3.79
100 - 499 £2.37 £2.84
500 - 999 £1.98 £2.37
1000 - 4999 £1.58 £1.90
5000 + £1.43 £1.71

£3.79 / each


Up to 51 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 1,950 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
1,950 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Disc Size 160mm
Thickness 1.5mm
To Fit ANSI Flange Size 4"
Colour Black
Material Neoprene

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

160mm ANSI Self-Adhesive Flange Disc for 4" Flanges – Black Neoprene

Protect ANSI flange faces during handling and storage with this 160mm self-adhesive Neoprene disc. Sized for a 4" flange, its low-tack backing allows the protector to be positioned directly over the mating face before removal when the connection is needed.

What Are ANSI Adhesive Flange Discs?

ANSI adhesive flange discs are temporary, round rubber face protectors. The low-tack adhesive holds the disc against a suitable flange surface while the Neoprene covers the mating face; remove the disc before fitting the flange connection. This 160mm disc is specified to fit a 4" ANSI flange.

Common Applications

  • Coated flange protection: Providing a removable barrier over an internally coated flange face while equipment awaits fitting on a 4" flange.
  • Industrial maintenance: Offering temporary contact protection for a flange separated during equipment servicing on a 4" flange.
  • Pipework transportation: Covering the flange face while a compatible pipe section is moved from fabrication to installation on a 4" flange.
  • Plant maintenance: Shielding disconnected flange faces during a planned shutdown or replacement task on a 4" flange.

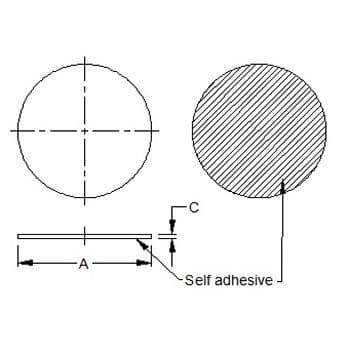

160mm ANSI Adhesive Flange Disc Dimensions

  • Disc Size: 160mm
  • To Fit ANSI Flange Size: 4"
  • Thickness: 1.5mm
  • Colour: Black
  • Material: Neoprene

Key Benefits

  • Round profile provides straightforward placement over a compatible flange face.
  • Low-tack backing is intended to reduce adhesive residue when the disc is removed.
  • Low-tack adhesive makes temporary positioning possible without a separate retaining fixture for the 160mm disc.
  • Removable construction allows access to the mating face before flange assembly.

Browse our self-adhesive ANSI flange protectors to compare disc diameters and ANSI flange fitting sizes. If you need help selecting the correct protector, call us on 01233 713581.
