15.4-30.1mm Ribbed Pipe Plug (28.0-28.5mm Pipe OD) | Red LDPE
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.66 | £0.79 |
| 2 - 10 | £0.66 | £0.79 |
| 11 - 50 | £0.62 | £0.75 |
| 51 - 100 | £0.57 | £0.69 |
| 101 - 500 | £0.53 | £0.64 |
| 501 + | £0.49 | £0.59 |
£0.79 / each
Product Specification
| To Fit Internal Diameter | 15.4-30.1mm |
| Max Wall Thickness | 5.5mm |
| Head Diameter | 27.6 |
| Pipe Outside Diameter | 28.0-28.5mm |
| Material | Red LDPE |
Frequently Bought Together
- Material LDPE
- Colour Natural
- Internal Diameter 28.0mm
- Wall Thickness N/A
- Internal Height 25.0mm
- Material LDPE
- Colour Black
- Outside Diameter 28.0mm
- Wall Thickness 1.0-3.0mm
- Head Height 5.0mm
- Insert Length 11.5mm
- To Fit Tube Size 22.0-26.0mm
- Style Round
- Material LDPE
- Colour Black
- Length 8.00mm
- Size 1"
Total Price: £0.00

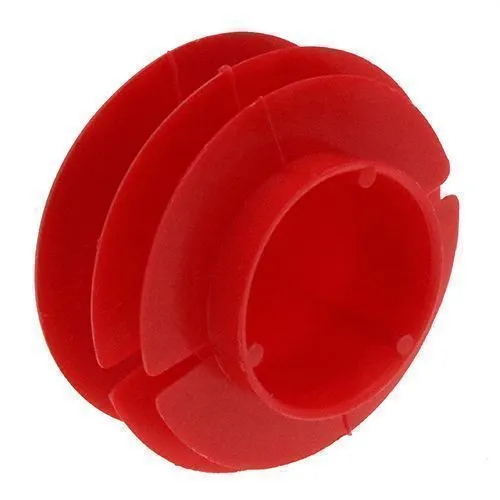

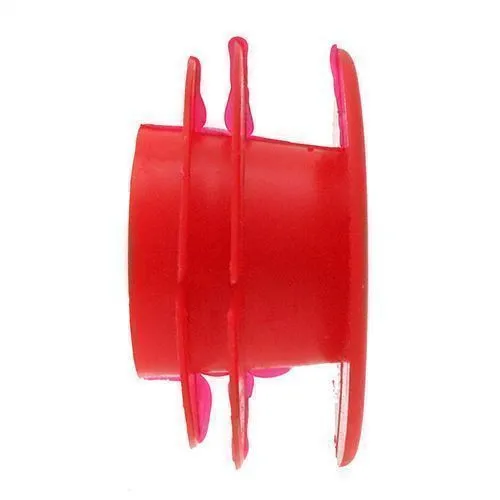

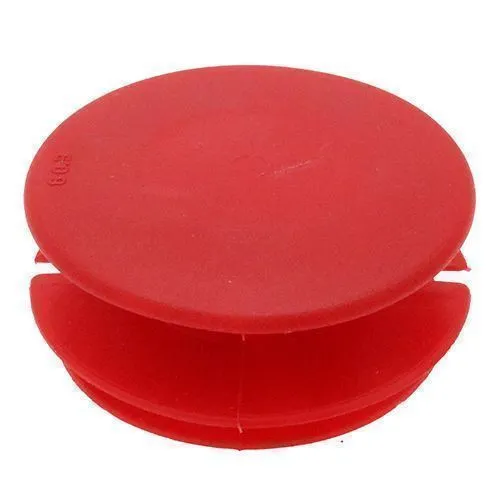

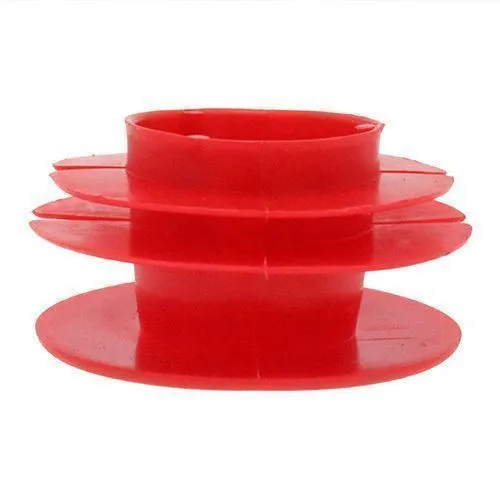

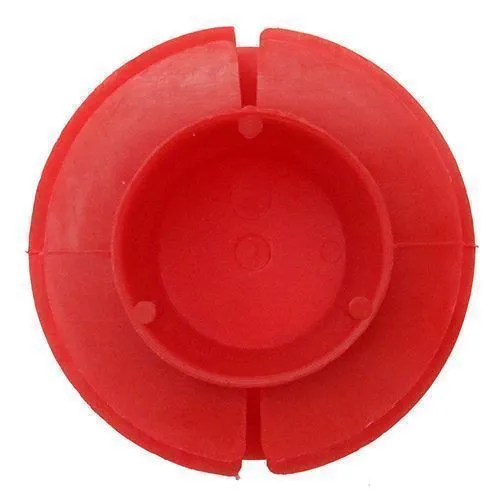

28.0-28.5mm Ribbed Pipe End Plug (15.4-30.1mm Internal Fit) | Red LDPE
Frequently specified for 28.0-28.5mm tube, this red ribbed pipe end protector helps preserve internal cleanliness before installation. Its flexible LDPE shank fits bores from 15.4-30.1mm and pipe walls up to 5.5mm thick. The 27.6 head diameter remains flush to the end face for easy identification.
What Are Ribbed Pipe End Plugs?
The plug is fitted by hand into the open pipe. Successive ribs compress against the internal wall to create resistance across a range of bore dimensions, helping one design suit related tube tolerances. It remains removable when the component needs welding, connection or final inspection.
Common Applications
- Industrial Furniture Frames: Protects open structural tubing during manufacture and delivery.
- Conveyor Equipment: Covers suitable pipe sections before bearings or fittings are installed.
- Maintenance Workshops: Temporarily closes spare tube and pipe components.
- Sheet Metal and Tube Fabrication: Keeps prepared bores cleaner between forming and assembly.

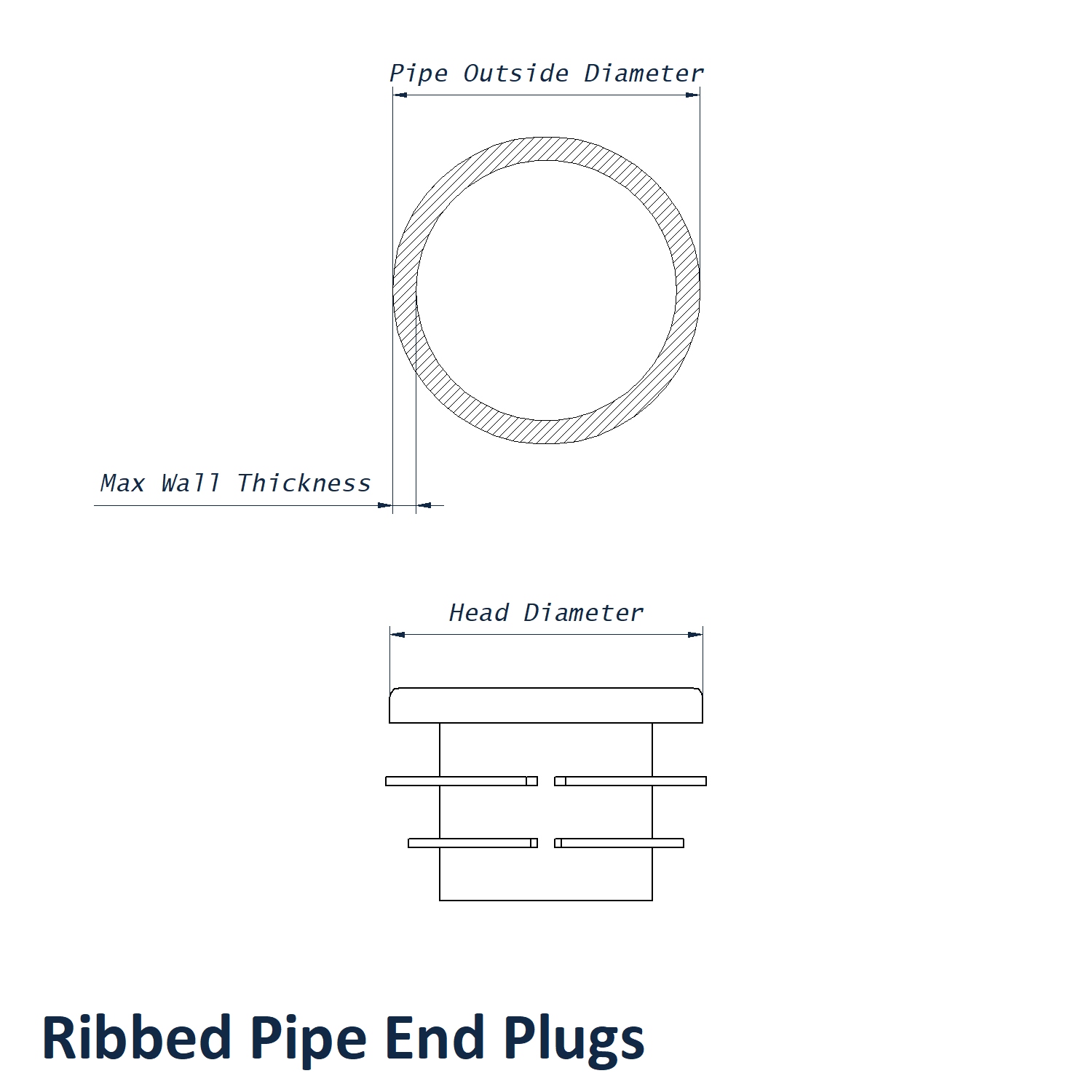

28.0-28.5mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 28.0-28.5mm
- Max Wall Thickness: 5.5mm
- To Fit Internal Diameter: 15.4-30.1mm
- Head Diameter: 27.6
- Material: Red LDPE
Key Benefits
- Suited to 28.0-28.5mm pipe outside diameters
- 15.4-30.1mm internal fitting range supports varied bores
- Head helps protect the exposed pipe edge
- Push-fit format allows fast removal without damaging the tube
The full choice of pipe outside diameters can be reviewed on the Ribbed Pipe End Plugs product page. For sizing support or larger order requirements, telephone our technical sales team on 01233 713 581.
| Code | Material | Head Diameter | Pipe Outside Diameter | Max Wall Thickness | To Fit Internal Diameter | Stock | |
|---|---|---|---|---|---|---|---|
| RPP008 | Red LDPE | 21.8 | 22.0mm | 4.5mm | 11.9-22mm |
Checking...
|
|
| RPP012 | Red LDPE | 29.8 | 30.0mm | 8.0mm | 15.5-30.1mm |
Checking...
|
|
| RPP009 | Red LDPE | 24.7 | 24.8-25.0mm | 4.5mm | 15.8-30.1mm |
Checking...
|
|
| RPP010 | Red LDPE | 26.2 | 26.0-26.9mm | 5.5mm | 16-30.1mm |
Checking...
|
|
| RPP013 | Red LDPE | 32.2 | 33.7mm | 8.0mm | 17.9-38mm |
Checking...
|
|
| RPP014 | Red LDPE | 34.6 | 35.0mm | 8.0mm | 18.1-38mm |
Checking...
|
|
