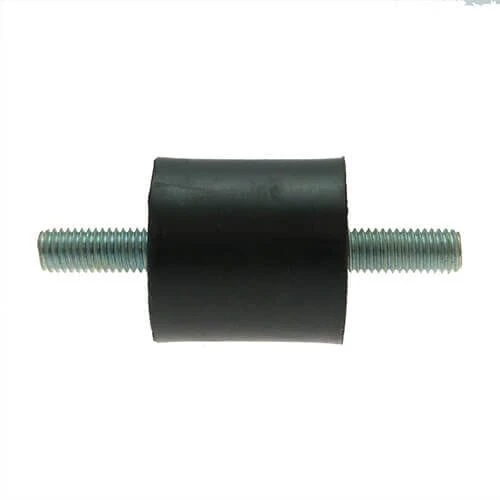

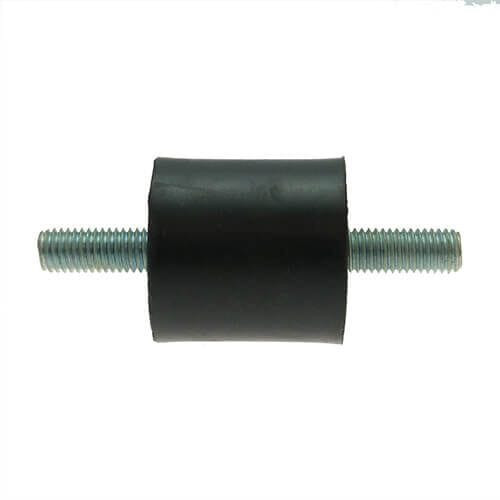

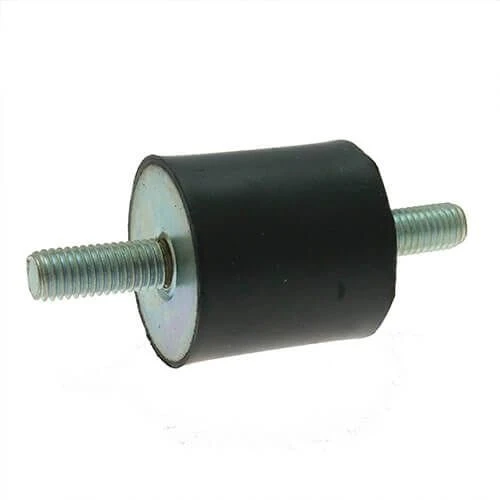

M12 x 37mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 150kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £15.03 | £18.04 |
| 2 - 249 | £15.03 | £18.03 |
| 250 - 499 | £13.95 | £16.74 |
| 500 - 999 | £12.88 | £15.46 |
| 1000 - 2499 | £11.81 | £14.17 |
| 2500 + | £10.73 | £12.88 |
£18.04 / each
.png)
Product Specification
| Diameter | 75mm |
| Height | 40mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 150kg |
| Deflection | 3.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Male Anti Vibration Mount | 75mm x 40mm Bobbin | 150kg Weight Rating | Zinc Steel & Natural Rubber
A practical option for access panel manufacture, this M12 male to male vibration isolation mount helps absorb movement where rigid metal-to-metal mounting would transfer vibration.
Bonded zinc steel and natural rubber construction gives a durable mounting point for repeated equipment vibration. With a male stud on each side, this bobbin is well suited to bridging two fixed surfaces. It helps keep the equipment held in position while reducing direct vibration transfer. It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings.
Common Applications
- Protecting sensitive monitoring devices
- Mounting industrial sensor housings
- Fixing machine guards
- Fixing fabricated steel brackets

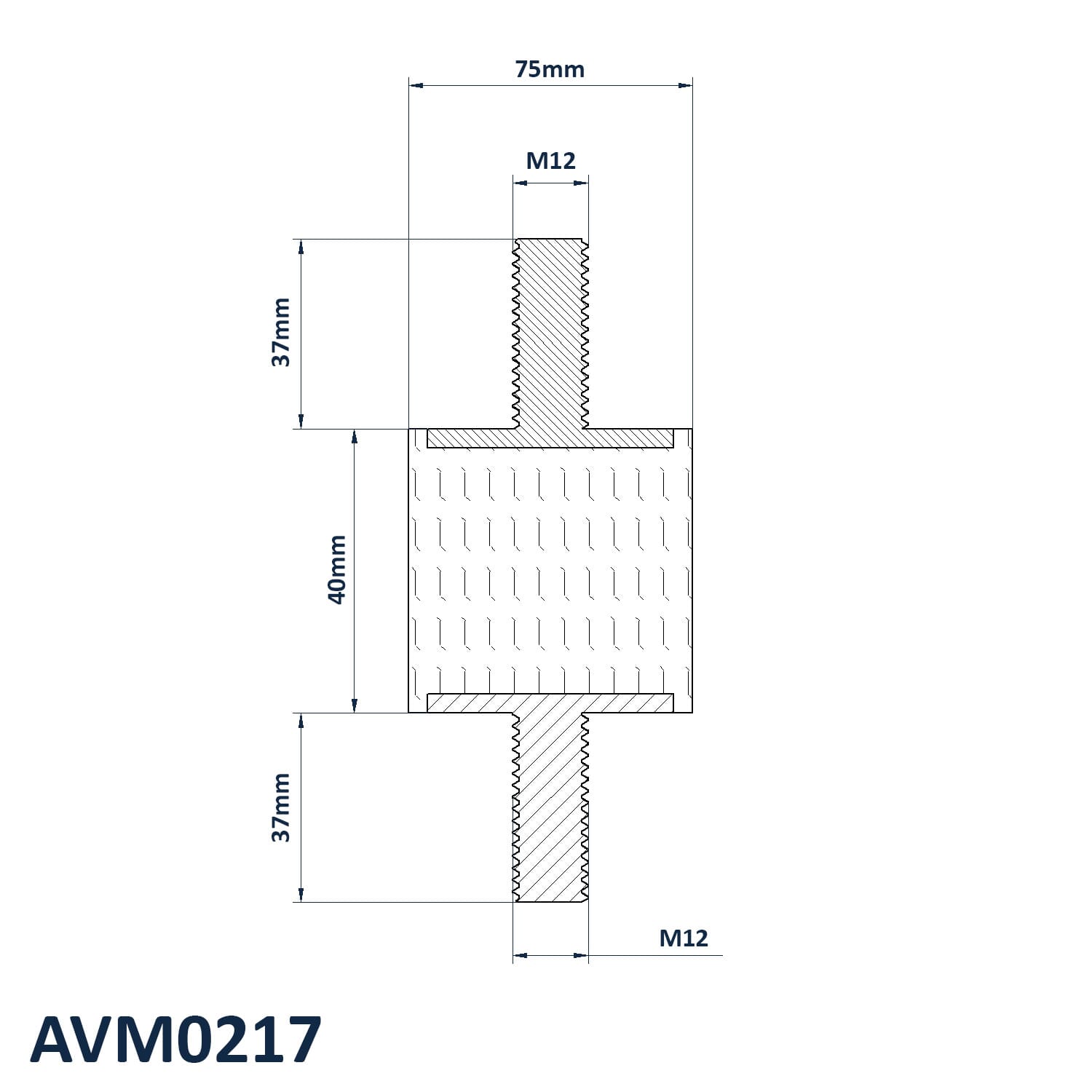

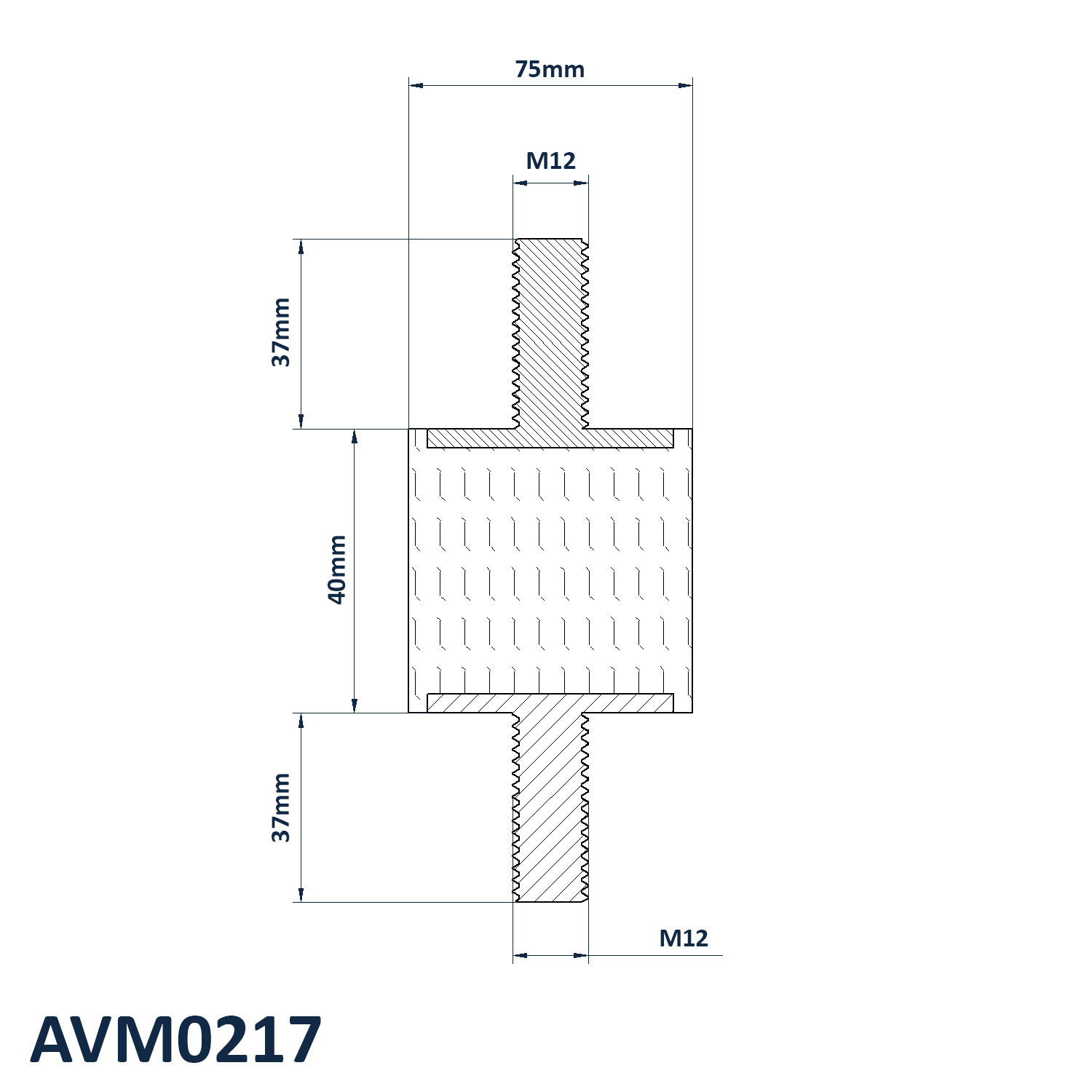

M12 x 37mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 75mm
- Height: 40mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 150kg
- Deflection: 3.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
