M14 x 35mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 512kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £27.12 | £32.55 |
| 2 - 249 | £27.12 | £32.54 |
| 250 - 499 | £25.18 | £30.22 |
| 500 - 999 | £23.24 | £27.89 |
| 1000 - 2499 | £21.31 | £25.57 |
| 2500 + | £19.37 | £23.24 |
£32.55 / each
.png)
Product Specification
| Diameter | 80mm |
| Height | 30mm |
| Thread Size | M14 |
| Thread Length | 35mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 512kg |
| Deflection | 2.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M14 x 35mm Male to Male Anti Vibration Mount | 80mm x 30mm Bobbin | 512kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for lighting frames, this male to male anti vibration rubber mount offers a simple rubber mounting solution for light to heavy duty assemblies.
The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed. Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. A 2.4mm deflection value helps the mount cushion movement while maintaining a stable fixing point.
Common Applications
- Fitting vehicle body panels
- Supporting marine interior equipment
- Securing fabricated access doors
- Mounting lightweight machine frames

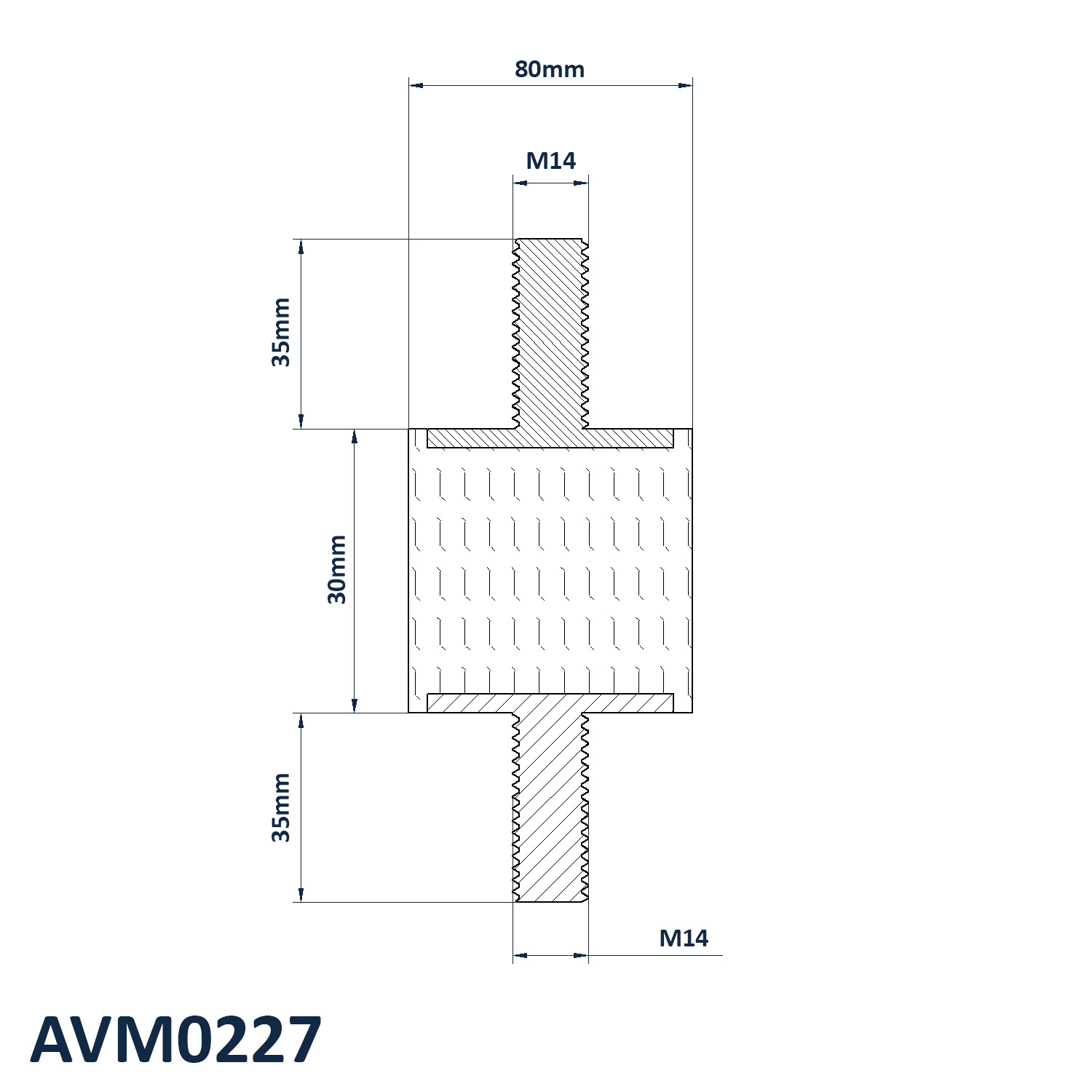

M14 x 35mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 80mm
- Height: 30mm
- Thread Size: M14
- Thread Length: 35mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 512kg
- Deflection: 2.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
