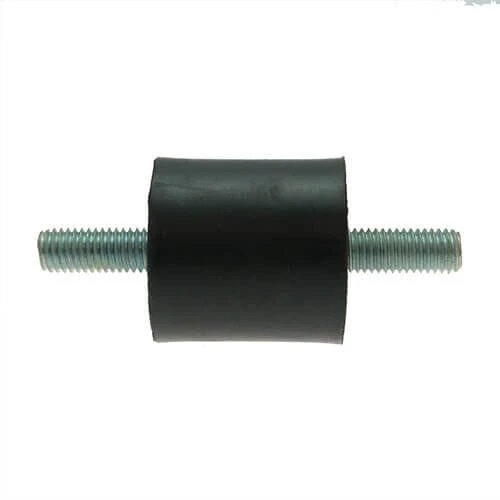

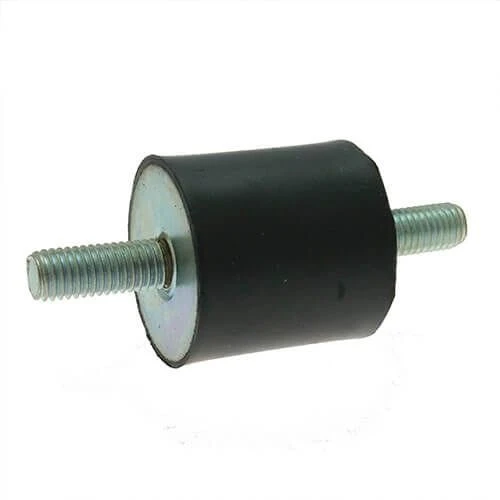

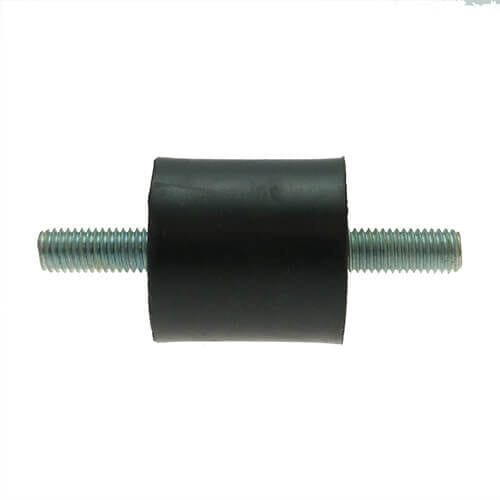

M16 x 44mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 460kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £27.43 | £32.91 |
| 2 - 249 | £26.88 | £32.25 |
| 250 - 499 | £26.34 | £31.61 |
| 500 - 999 | £25.81 | £30.97 |
| 1000 - 2499 | £25.30 | £30.36 |
| 2500 + | £24.79 | £29.75 |
£32.91 / each
.png)
Product Specification
| Diameter | 100mm |
| Height | 30mm |
| Thread Size | M16 |
| Thread Length | 44mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 460kg |
| Deflection | 2.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 x 44mm Male to Male Anti Vibration Mount | 100mm x 30mm Bobbin | 460kg Weight Rating | Zinc Steel & Natural Rubber
Offering a practical fixing point for fabricated brackets, this M16 male to male equipment isolator helps cushion equipment while keeping the installation compact.
The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Reducing noise in production equipment
- Isolating cooling fan assemblies
- Securing fabricated access doors
- Fixing battery enclosure sections

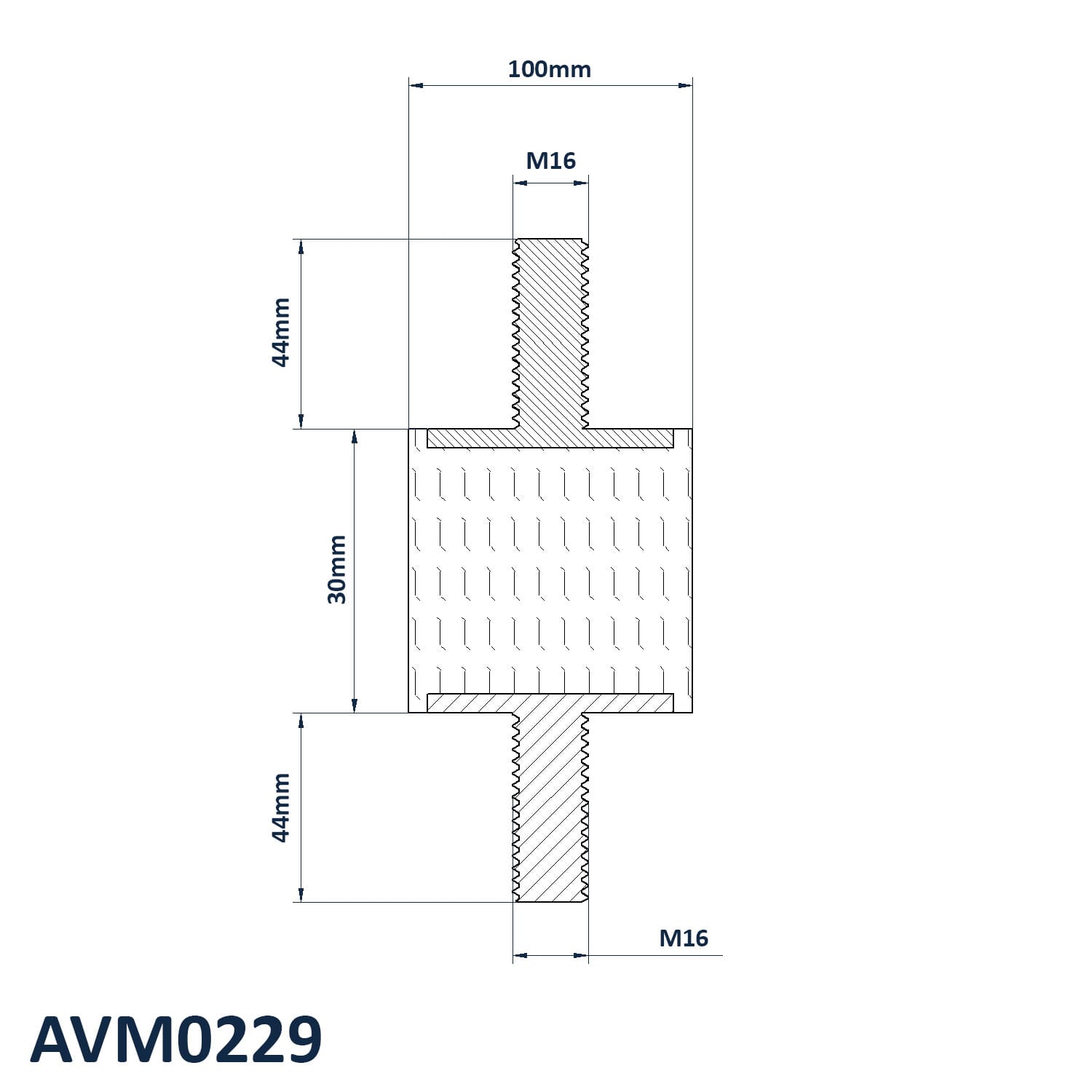

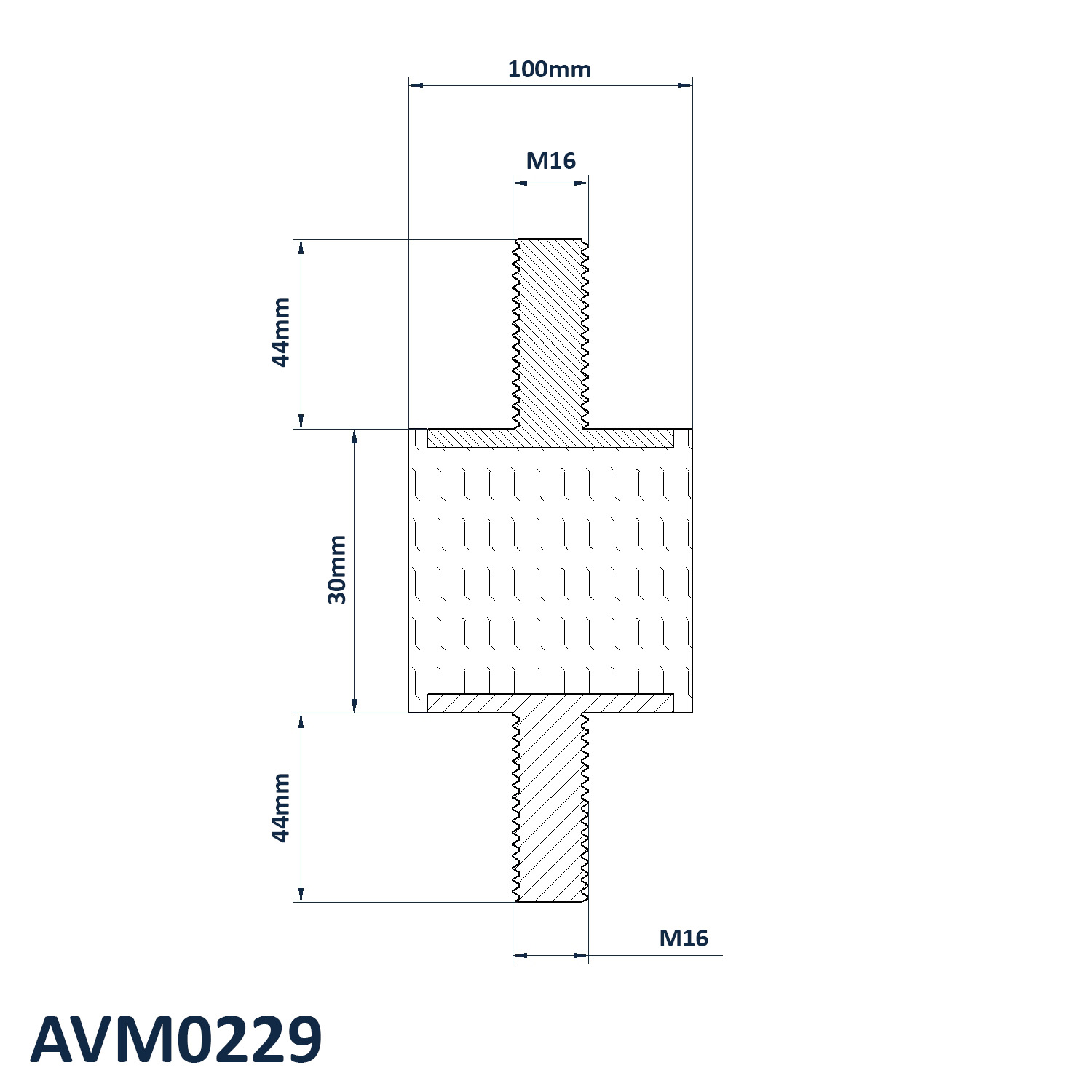

M16 x 44mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 30mm
- Thread Size: M16
- Thread Length: 44mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 460kg
- Deflection: 2.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
