M16 x 44mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 270kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £35.37 | £42.44 |
| 2 - 249 | £35.36 | £42.43 |
| 250 - 499 | £32.83 | £39.40 |
| 500 - 999 | £30.30 | £36.36 |
| 1000 - 2499 | £27.77 | £33.33 |
| 2500 + | £25.25 | £30.30 |
£42.44 / each
.png)
Product Specification
| Diameter | 100mm |
| Height | 55mm |
| Thread Size | M16 |
| Thread Length | 44mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 270kg |
| Deflection | 4.7mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 x 44mm Male to Male Anti Vibration Mount | 100mm x 55mm Bobbin | 270kg Weight Rating | Zinc Steel & Natural Rubber
Designed for HVAC units, this 100mm x 55mm machine vibration mount uses a rubber body measuring 100mm diameter x 55mm high to reduce vibration between connected components.
The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. The 45 IRHD hardness and 270kg weight rating give a controlled balance of support and movement absorption. It provides a useful alternative to rigid spacers, helping create a controlled vibration break in fabricated assemblies.
Common Applications
- Reducing resonance in frame assemblies
- Mounting lightweight machine frames
- Isolating fan housings from panels
- Mounting trailer equipment

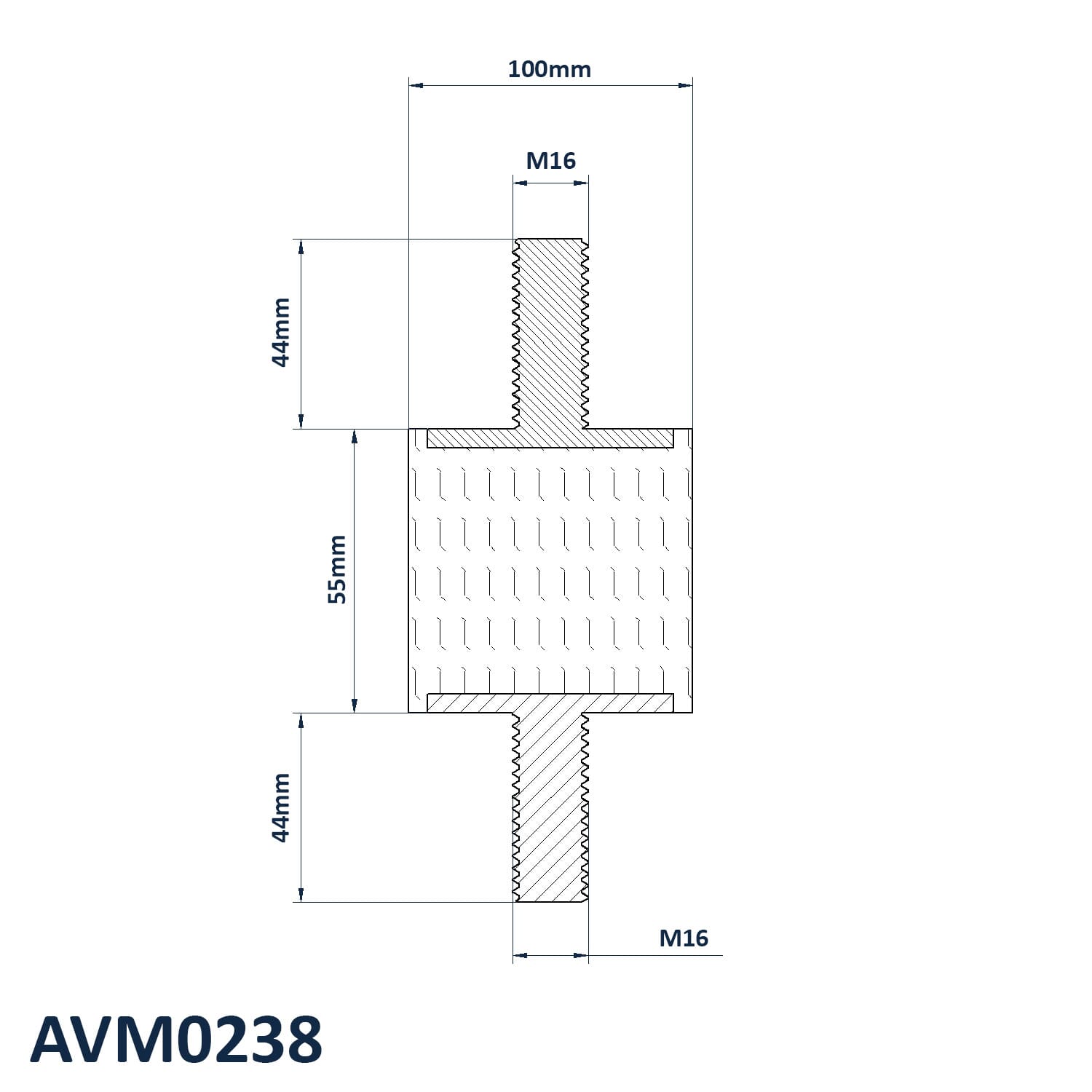

M16 x 44mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 55mm
- Thread Size: M16
- Thread Length: 44mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 270kg
- Deflection: 4.7mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
