M16 x 44mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 500kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £28.97 | £34.76 |
| 2 - 249 | £28.38 | £34.06 |
| 250 - 499 | £27.82 | £33.38 |
| 500 - 999 | £27.27 | £32.72 |
| 1000 - 2499 | £26.72 | £32.06 |
| 2500 + | £26.18 | £31.42 |
£34.76 / each
Product Specification
| Diameter | 100mm |
| Height | 55mm |
| Thread Size | M16 |
| Thread Length | 44mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 500kg |
| Deflection | 4.7mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 x 44mm Male to Male Anti Vibration Mount | 100mm x 55mm Bobbin | 500kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for sheet metal fabrication, the M16 male to male bonded rubber mount combines a compact 100mm x 55mm rubber bobbin with bonded metal fixings for controlled isolation.
The specified 500kg load capacity makes the mount easier to match to equipment weight and expected movement. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed.
Common Applications
- Protecting sensitive monitoring devices
- Isolating small drive units
- Securing HVAC casing sections
- Mounting laboratory instrument feet

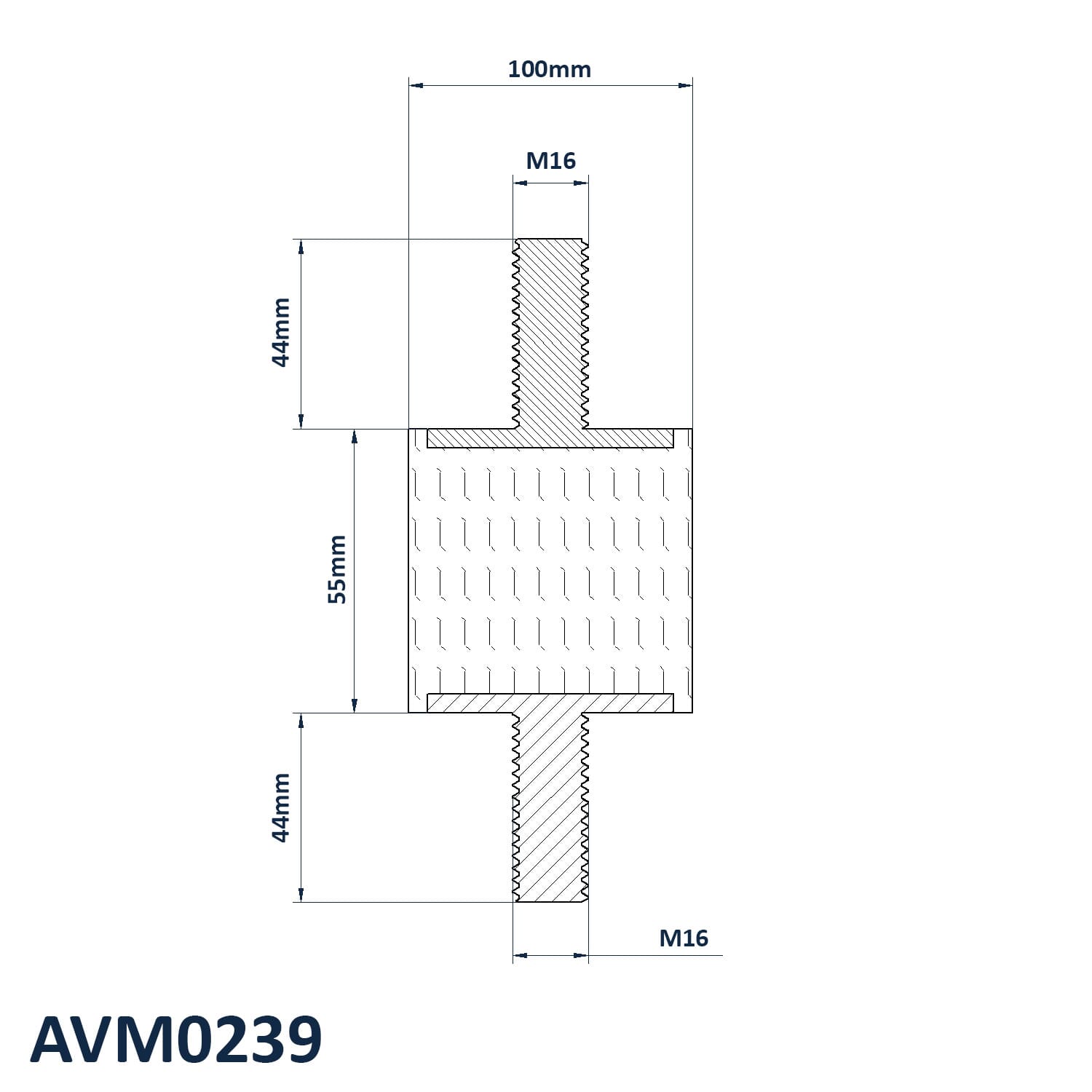

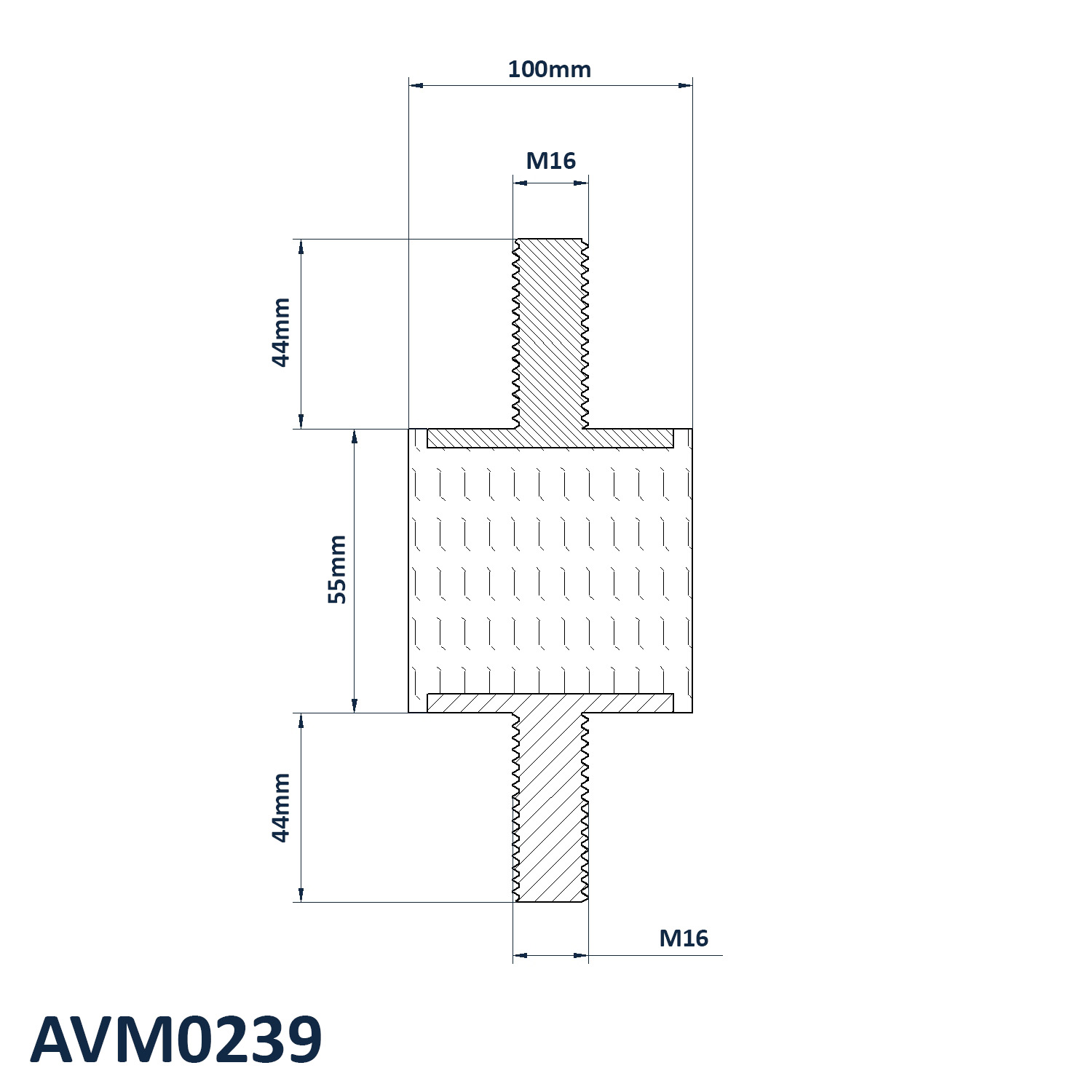

M16 x 44mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 55mm
- Thread Size: M16
- Thread Length: 44mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 500kg
- Deflection: 4.7mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
