M6 x 18mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 7.2kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.57 | £1.89 |
| 2 - 249 | £1.57 | £1.88 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.34 | £1.61 |
| 1000 - 2499 | £1.23 | £1.47 |
| 2500 + | £1.12 | £1.34 |
£1.89 / each
.png)
Product Specification
| Diameter | 20mm |
| Height | 20mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 7.2kg |
| Deflection | 1.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Female Anti Vibration Mount | 20mm x 20mm Bobbin | 7.2kg Weight Rating | Zinc Steel & Natural Rubber
Developed for engineering equipment, this 20mm x 20mm machine vibration mount supports reliable mounting where a controlled amount of deflection is required.
The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation. Because the mount has one male thread and one female thread, it suits mixed fixing layouts where a stud is needed on one face and a recessed threaded connection is preferred on the other. The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required.
Common Applications
- Mounting small electric motors
- Fitting vehicle body panels
- Mounting laboratory instrument feet
- Fixing air handling unit panels

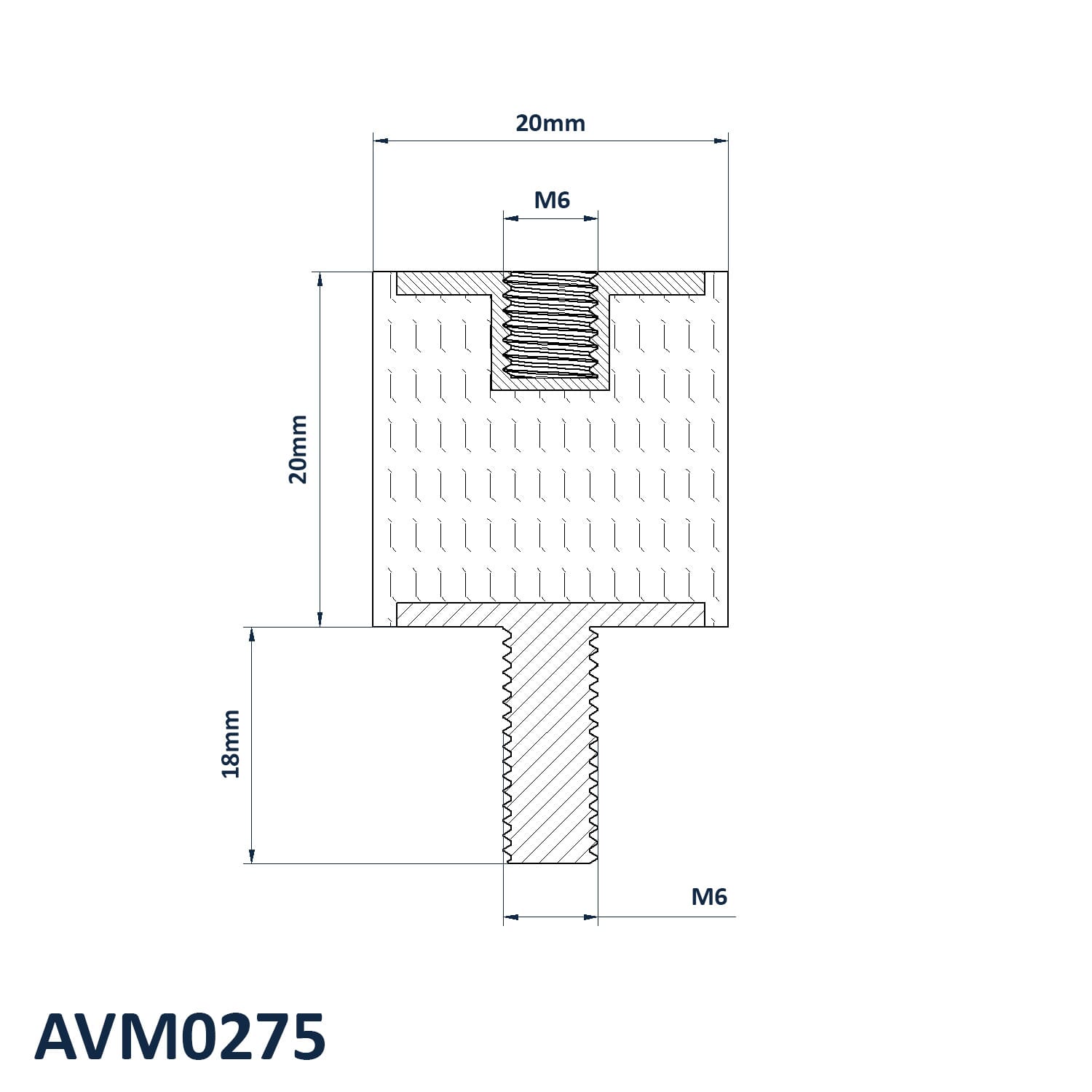

M6 x 18mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 20mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 7.2kg
- Deflection: 1.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
