M6 x 18mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 9.3kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.53 | £1.84 |
| 2 - 249 | £1.52 | £1.83 |
| 250 - 499 | £1.42 | £1.70 |
| 500 - 999 | £1.31 | £1.57 |
| 1000 - 2499 | £1.20 | £1.44 |
| 2500 + | £1.09 | £1.31 |
£1.84 / each
.png)
Product Specification
| Diameter | 20mm |
| Height | 15mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 9.3kg |
| Deflection | 1.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Female Anti Vibration Mount | 20mm x 15mm Bobbin | 9.3kg Weight Rating | Zinc Steel & Natural Rubber
Offering a practical fixing point for fan assemblies, this male to female rubber isolation bobbin helps cushion equipment while keeping the installation compact.
Because the mount has one male thread and one female thread, it suits mixed fixing layouts where a stud is needed on one face and a recessed threaded connection is preferred on the other. The mount offers a resilient buffer between connected parts, helping reduce noise from fans, motors and moving assemblies. It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly.
Common Applications
- Reducing transferred movement in brackets
- Reducing vibration in control cabinets
- Isolating packaging machine parts
- Fitting serviceable covers

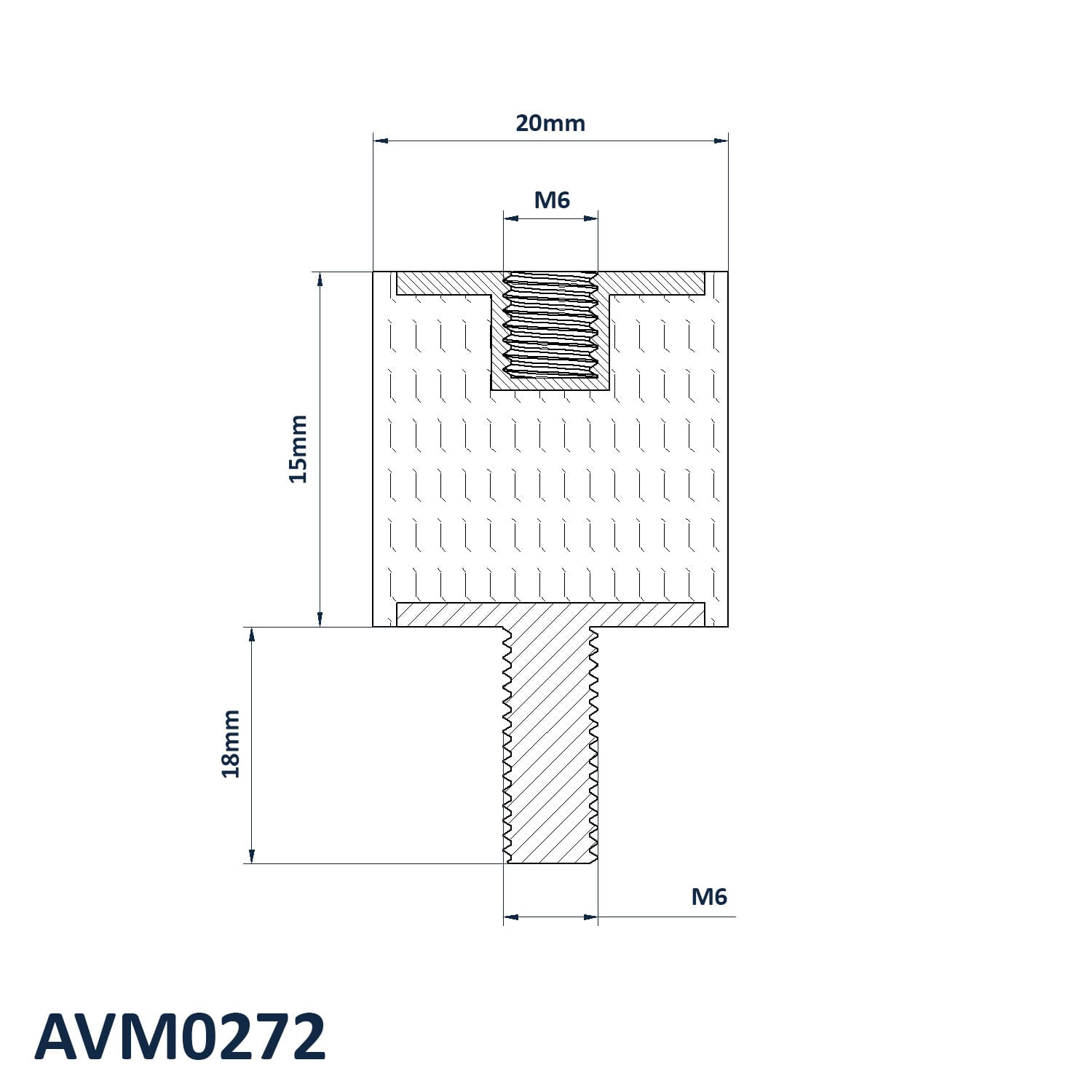

M6 x 18mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 15mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 9.3kg
- Deflection: 1.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
