M8 x 23mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 64kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £4.28 | £5.14 |
| 2 - 249 | £4.28 | £5.13 |
| 250 - 499 | £3.97 | £4.76 |
| 500 - 999 | £3.66 | £4.39 |
| 1000 - 2499 | £3.36 | £4.03 |
| 2500 + | £3.05 | £3.66 |
£5.14 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 30mm |
| Thread Size | M8 |
| Thread Length | 23mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 64kg |
| Deflection | 2.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 x 23mm Male to Female Anti Vibration Mount | 40mm x 30mm Bobbin | 64kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for transport cases, the M8 male to female vibration damper mount provides a neat vibration control point where space and fixing access are limited.
This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. The specified 64kg load capacity makes the mount easier to match to equipment weight and expected movement. Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels.
Common Applications
- Supporting compressor feet
- Mounting aluminium framework
- Supporting electronics trays
- Protecting sensitive monitoring devices

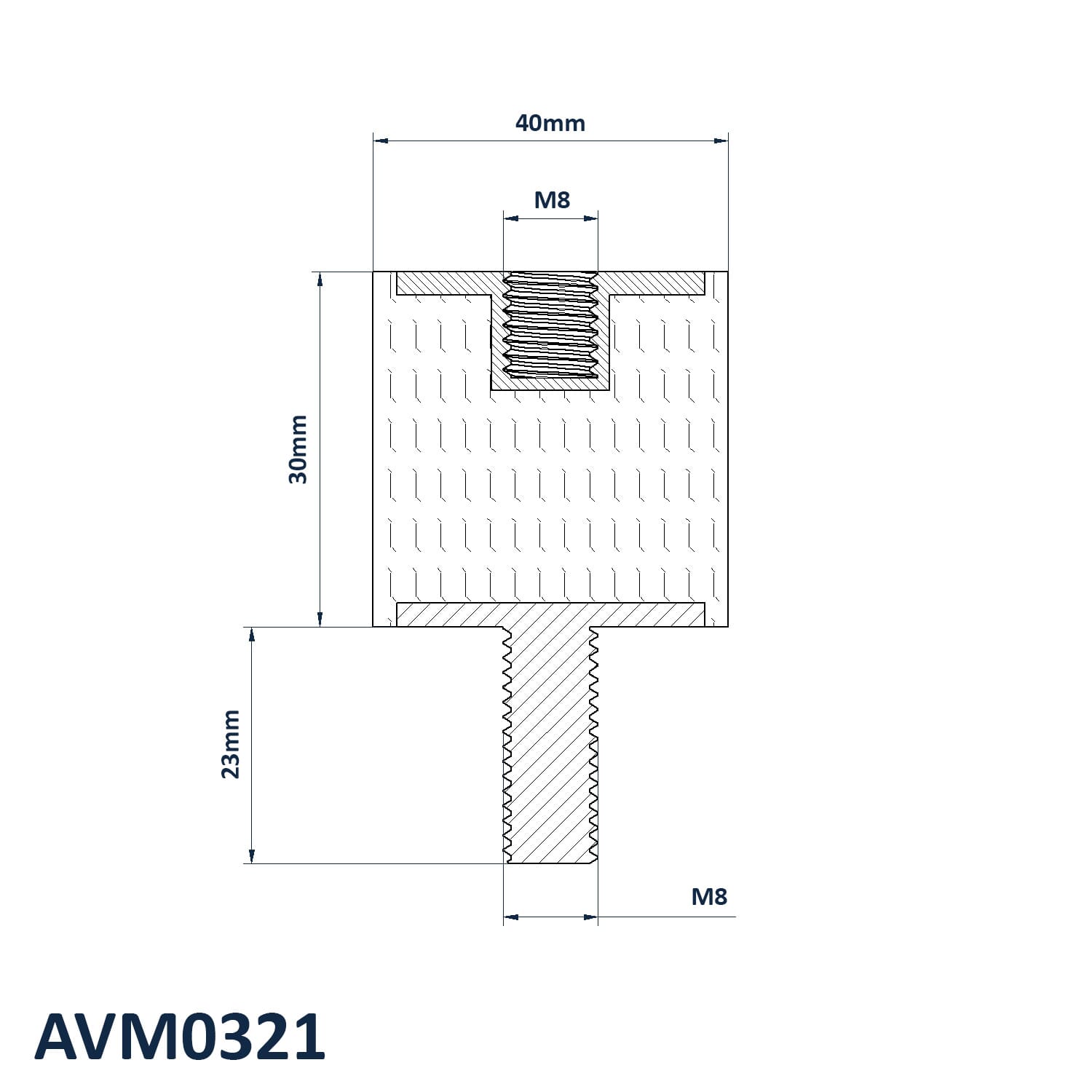

M8 x 23mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 30mm
- Thread Size: M8
- Thread Length: 23mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 64kg
- Deflection: 2.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
