M10 x 25mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 188kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £12.22 | £14.66 |
| 2 - 249 | £12.21 | £14.65 |
| 250 - 499 | £11.33 | £13.60 |
| 500 - 999 | £10.46 | £12.55 |
| 1000 - 2499 | £9.59 | £11.51 |
| 2500 + | £8.72 | £10.46 |
£14.66 / each
Product Specification
| Diameter | 60mm |
| Height | 40mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 188kg |
| Deflection | 3.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Female Anti Vibration Mount | 60mm x 40mm Bobbin | 188kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for lighting frames, the M10 male to female rubber bobbin mount combines a compact 60mm x 40mm rubber bobbin with bonded metal fixings for controlled isolation.
Its measured deflection helps reduce transferred movement to panels, housings and supporting frames. The male to female bobbin style uses an external threaded stud on one side and an internal female thread on the opposite side. This is chosen when one side screws into a mounting point while the other accepts a bolt or stud. Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels.
Common Applications
- Isolating conveyor sensors
- Cushioning measuring equipment
- Isolating compressor guards
- Mounting small electric motors

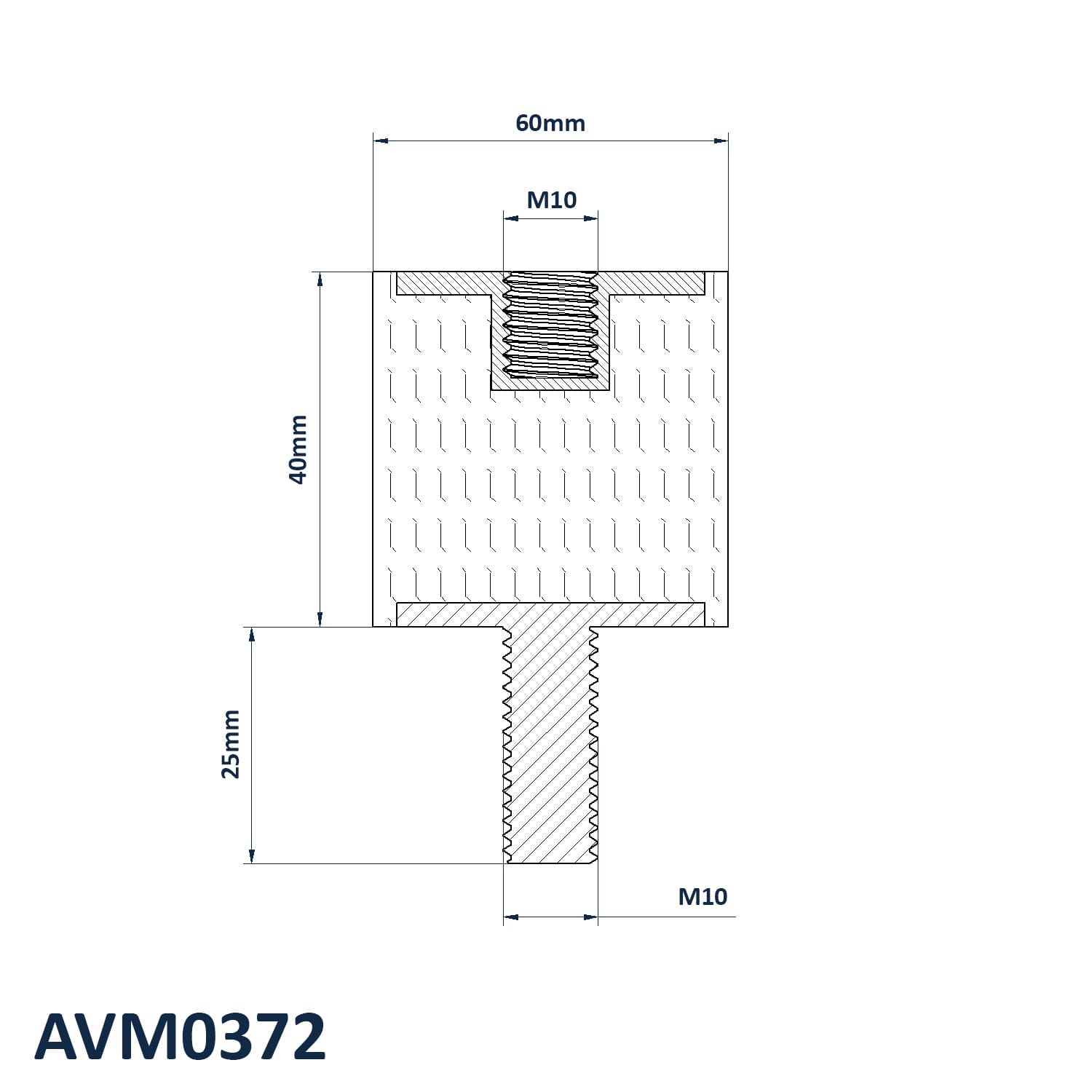

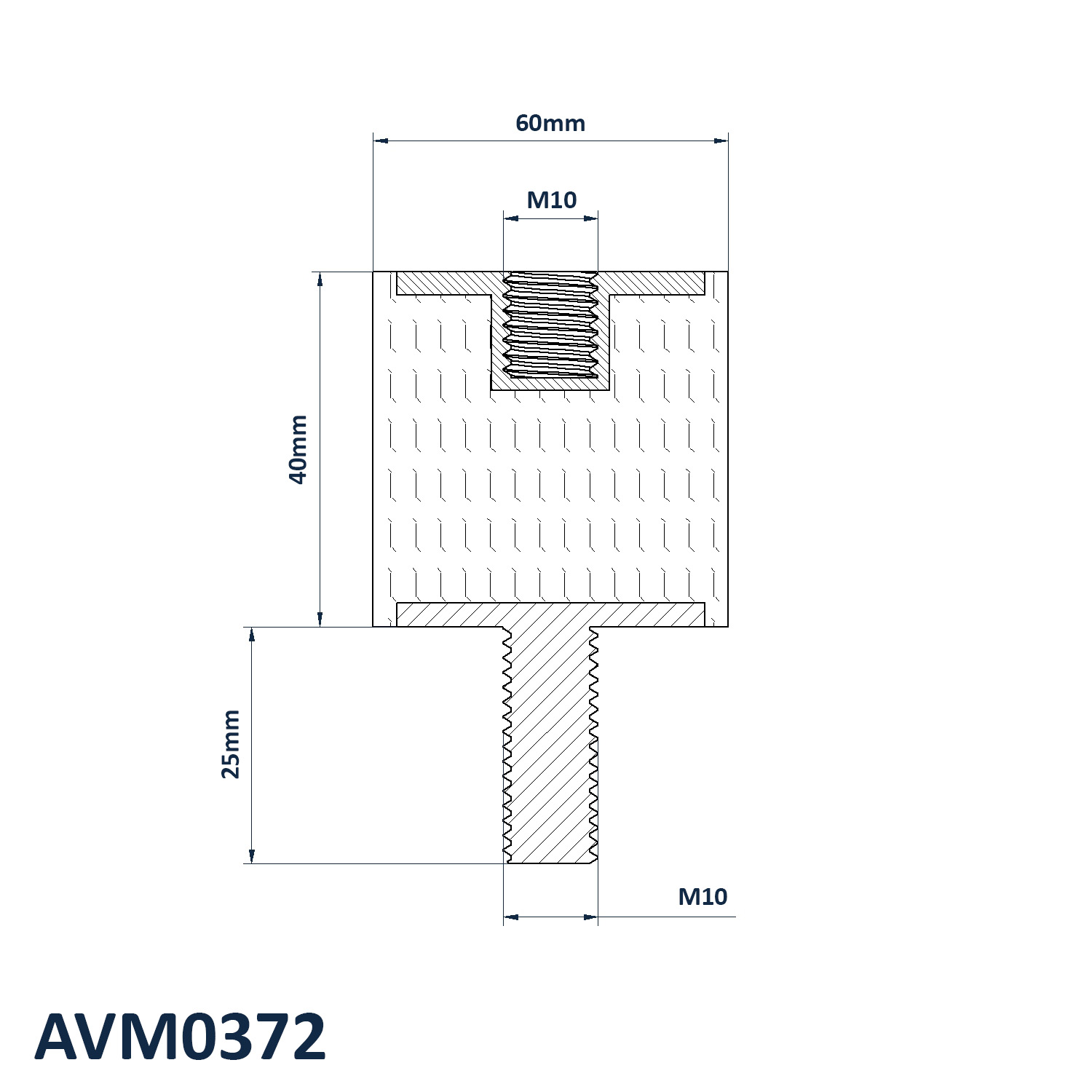

M10 x 25mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 40mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 188kg
- Deflection: 3.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
