M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 101kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £12.56 | £15.07 |
| 2 - 249 | £12.55 | £15.06 |
| 250 - 499 | £11.65 | £13.98 |
| 500 - 999 | £10.75 | £12.90 |
| 1000 - 2499 | £9.86 | £11.83 |
| 2500 + | £8.96 | £10.75 |
£15.07 / each
Product Specification
| Diameter | 60mm |
| Height | 40mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 101kg |
| Deflection | 3.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 60mm x 40mm Bobbin | 101kg Weight Rating | Zinc Steel & Natural Rubber
Manufactured for lighting frames, this M12 male to female vibration isolation mount helps separate moving assemblies from surrounding frames without needing a large isolator.
It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly. The male to female bobbin style uses an external threaded stud on one side and an internal female thread on the opposite side. This is chosen when one side screws into a mounting point while the other accepts a bolt or stud. The 45 IRHD hardness and 101kg weight rating give a controlled balance of support and movement absorption.
Common Applications
- Fitting serviceable covers
- Mounting small gearbox housings
- Isolating compressor guards
- Mounting exhaust fan brackets

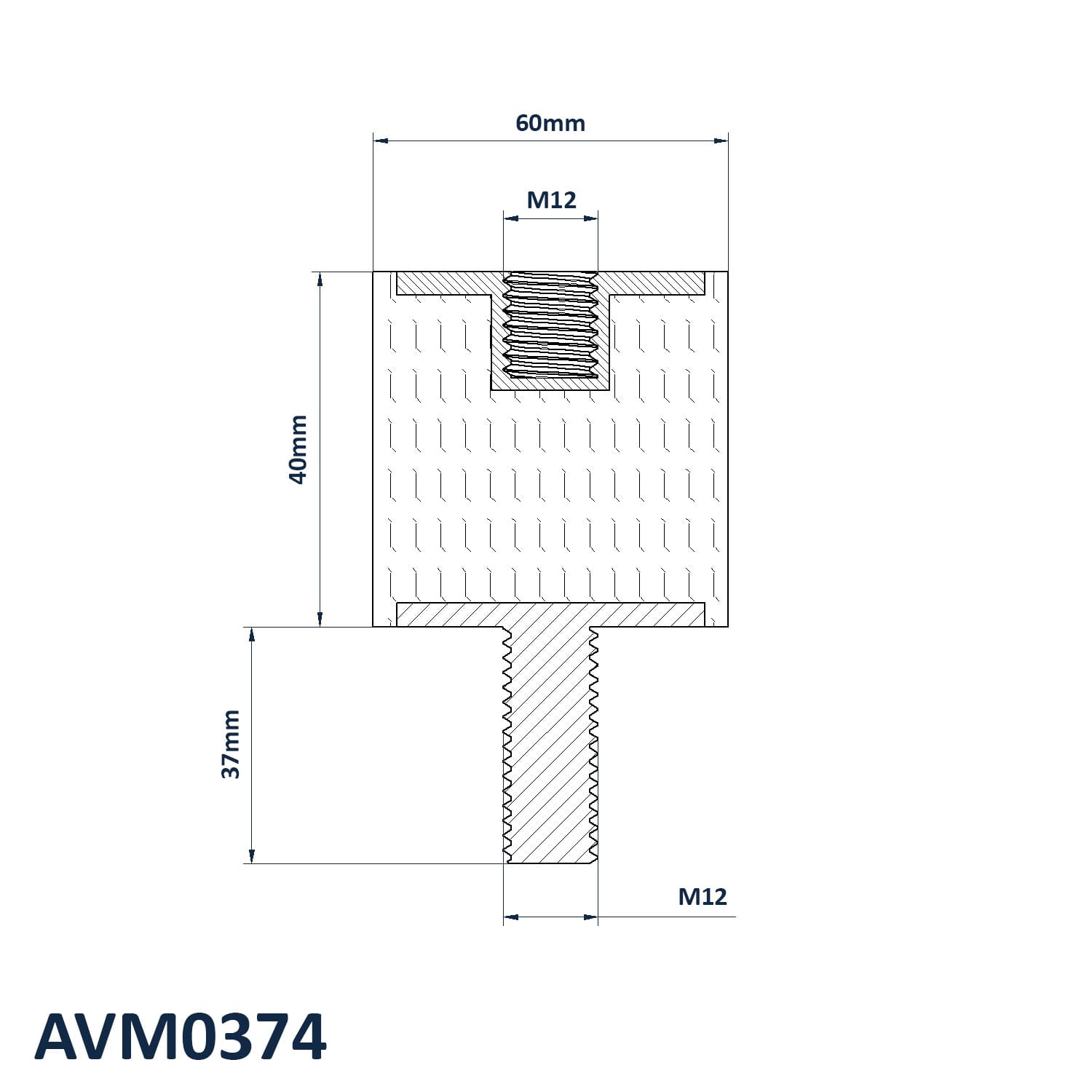

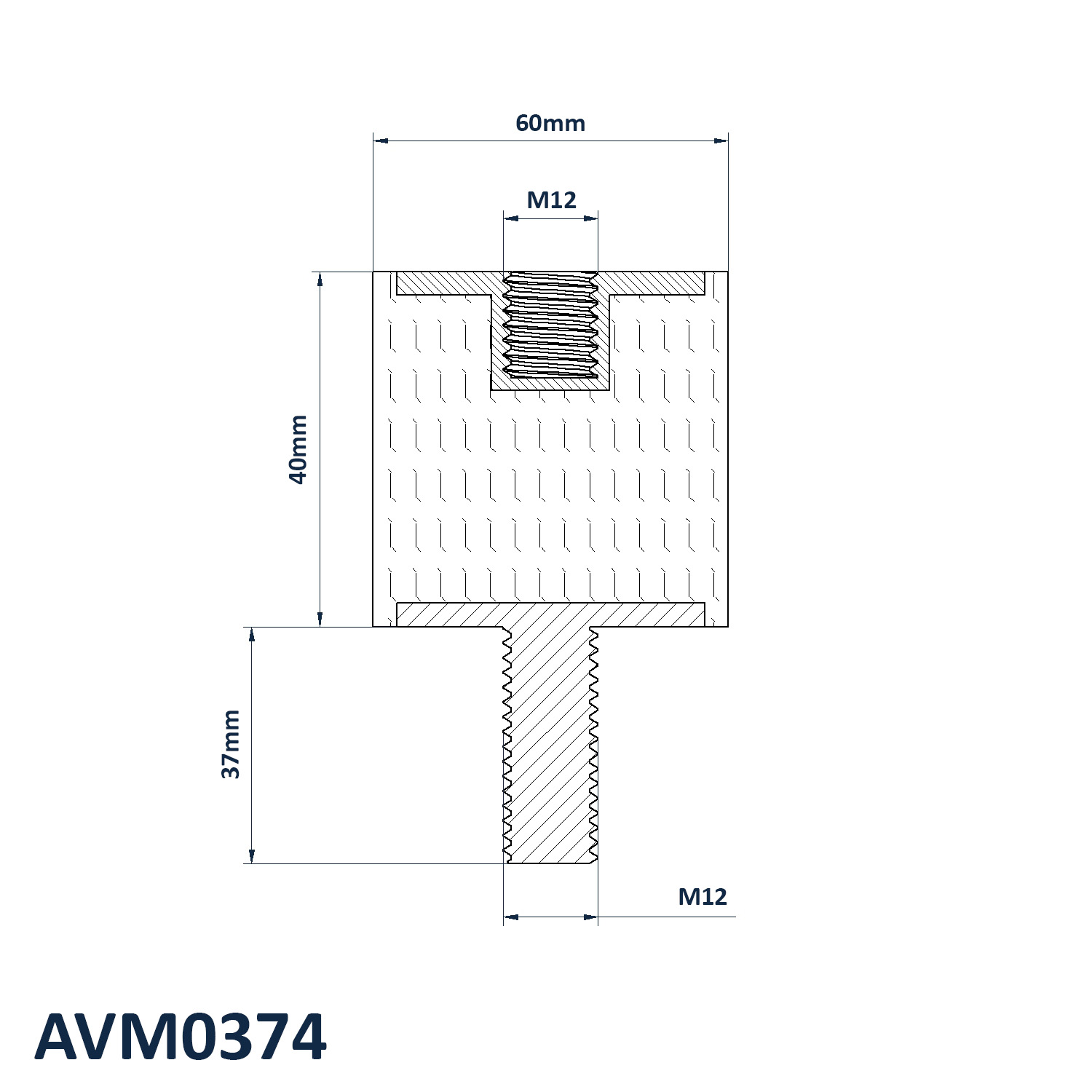

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 40mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 101kg
- Deflection: 3.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
