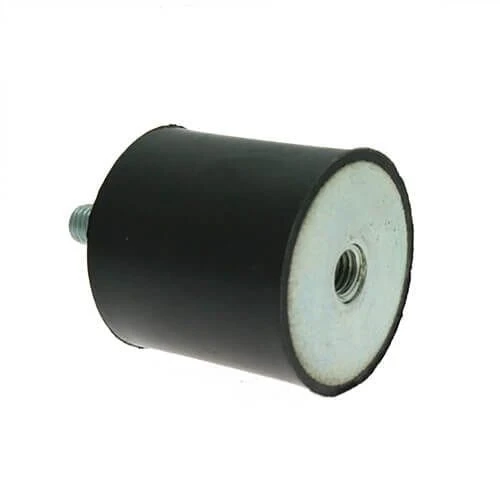

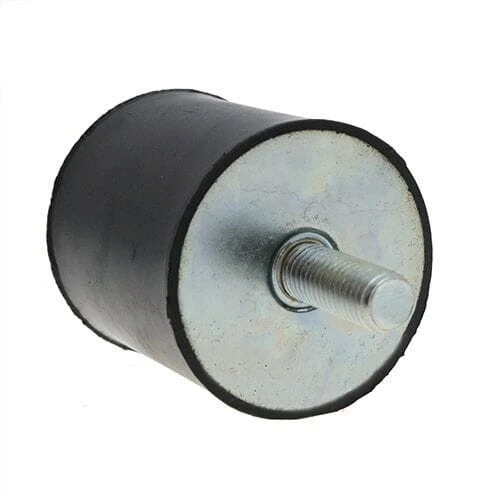

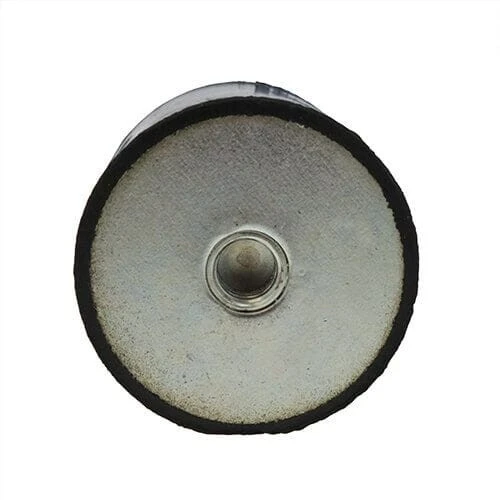

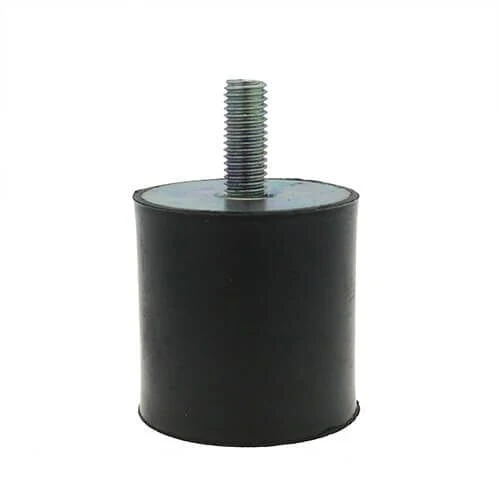

M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 256kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £12.22 | £14.66 |
| 2 - 249 | £12.21 | £14.65 |
| 250 - 499 | £11.33 | £13.60 |
| 500 - 999 | £10.46 | £12.55 |
| 1000 - 2499 | £9.59 | £11.51 |
| 2500 + | £8.72 | £10.46 |
£14.66 / each
Product Specification
| Diameter | 60mm |
| Height | 40mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 70 IRHD |
| Weight Rating | 256kg |
| Deflection | 3.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 60mm x 40mm Bobbin | 256kg Weight Rating | Zinc Steel & Natural Rubber
Commonly used in signage systems, this M12 rubber mounting buffer supports equipment where noise, movement and transferred shock need to be reduced.
Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads. This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings.
Common Applications
- Fixing air handling unit panels
- Securing removable side panels
- Supporting production line attachments
- Attaching instrument panels

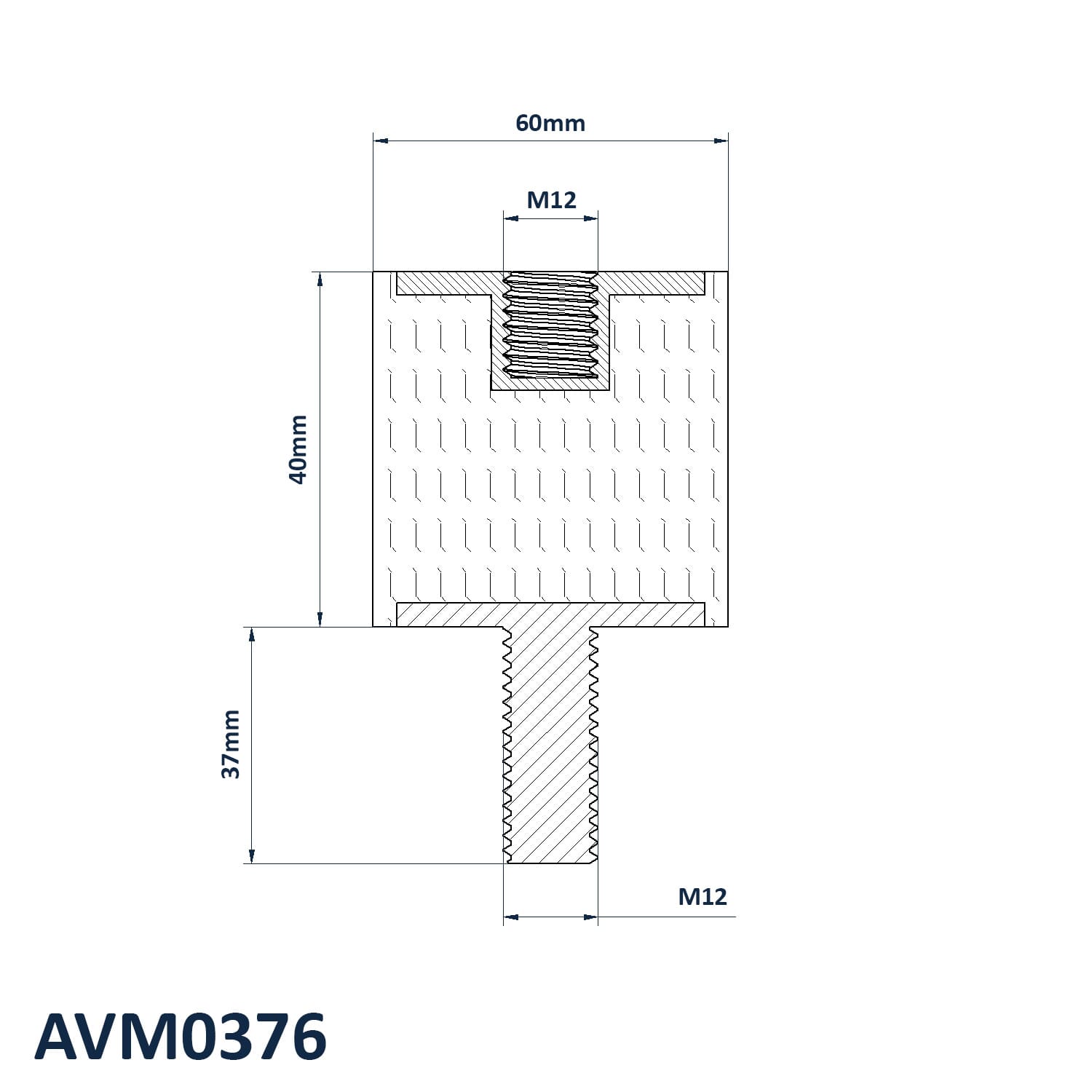

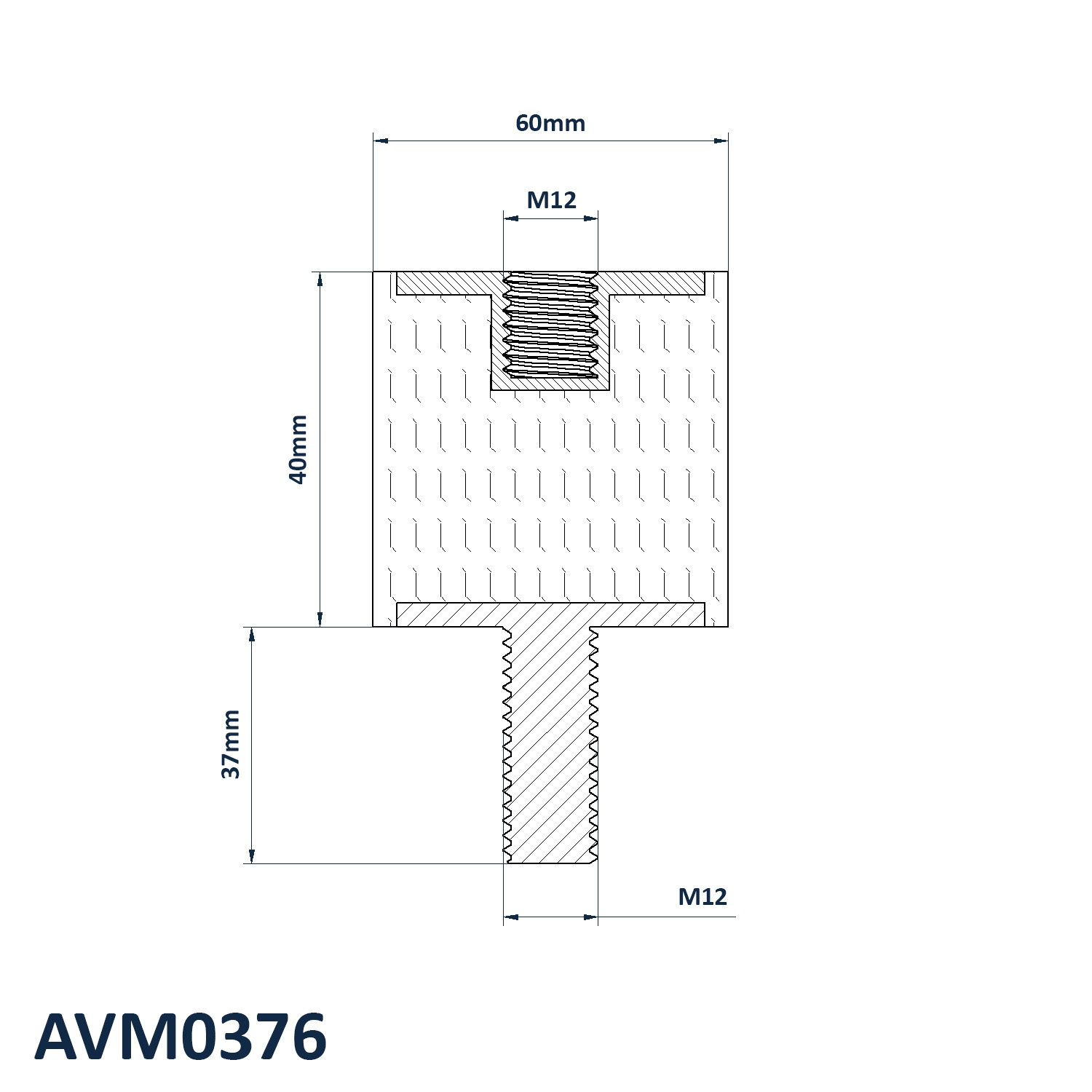

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 40mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 70 IRHD
- Weight Rating: 256kg
- Deflection: 3.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
