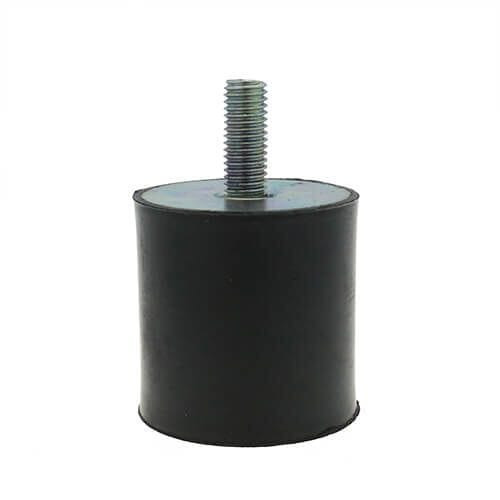

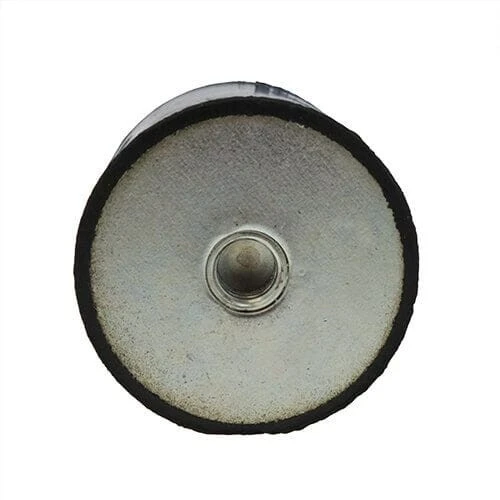

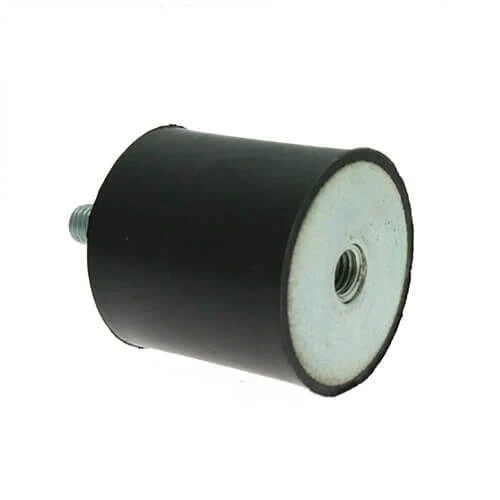

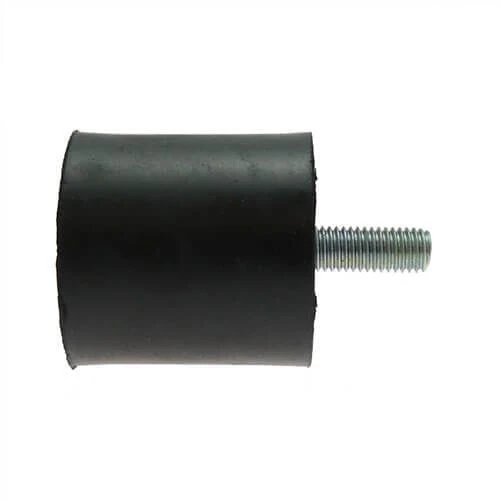

M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 216kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £28.98 | £34.78 |
| 2 - 249 | £28.98 | £34.77 |
| 250 - 499 | £26.91 | £32.29 |
| 500 - 999 | £24.83 | £29.80 |
| 1000 - 2499 | £22.77 | £27.32 |
| 2500 + | £20.70 | £24.84 |
£34.78 / each
Product Specification
| Diameter | 65mm |
| Height | 40mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 216kg |
| Deflection | 3.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 65mm x 40mm Bobbin | 216kg Weight Rating | Zinc Steel & Natural Rubber
A practical option for marine equipment, this M12 male to female equipment isolator helps absorb movement where rigid metal-to-metal mounting would transfer vibration.
Its compact form helps reduce installation time where access around the mounting point is restricted. The male to female design helps reduce overall projection compared with two exposed studs while still giving a secure threaded fixing on both sides of the rubber bobbin. The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed.
Common Applications
- Securing guarding panels
- Cushioning access panels
- Protecting inspection equipment
- Supporting electronics trays

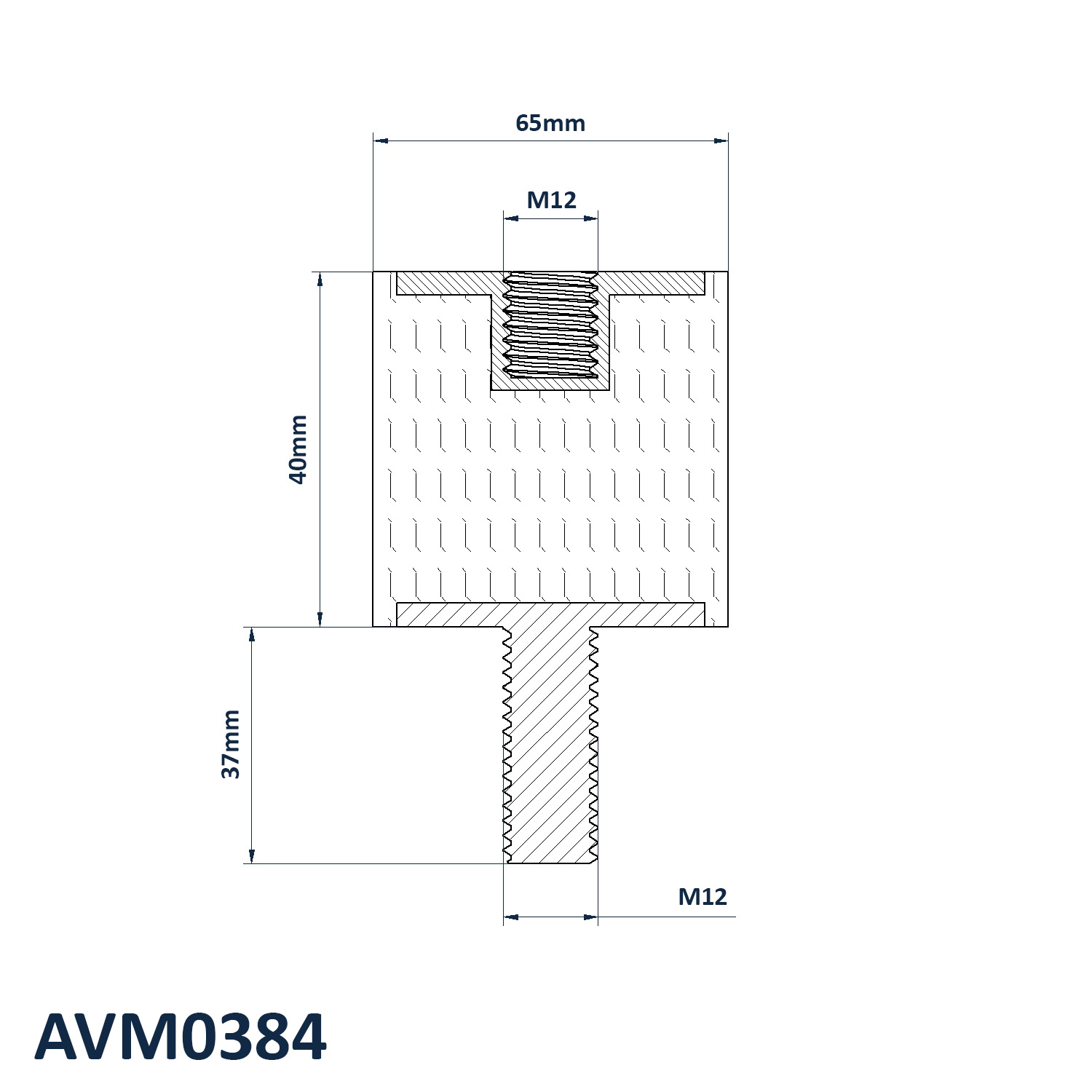

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 65mm
- Height: 40mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 216kg
- Deflection: 3.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
