M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 190kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £28.98 | £34.78 |
| 2 - 249 | £28.98 | £34.77 |
| 250 - 499 | £26.91 | £32.29 |
| 500 - 999 | £24.83 | £29.80 |
| 1000 - 2499 | £22.77 | £27.32 |
| 2500 + | £20.70 | £24.84 |
£34.78 / each
Product Specification
| Diameter | 65mm |
| Height | 45mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 190kg |
| Deflection | 4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 65mm x 45mm Bobbin | 190kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for agricultural equipment, the M12 natural rubber vibration mount combines a compact 65mm x 45mm rubber bobbin with bonded metal fixings for controlled isolation.
Its measured deflection helps reduce transferred movement to panels, housings and supporting frames. The male to female bobbin style uses an external threaded stud on one side and an internal female thread on the opposite side. This is chosen when one side screws into a mounting point while the other accepts a bolt or stud. The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation.
Common Applications
- Securing HVAC casing sections
- Mounting laboratory instrument feet
- Supporting automation cell guards
- Fixing battery enclosure sections

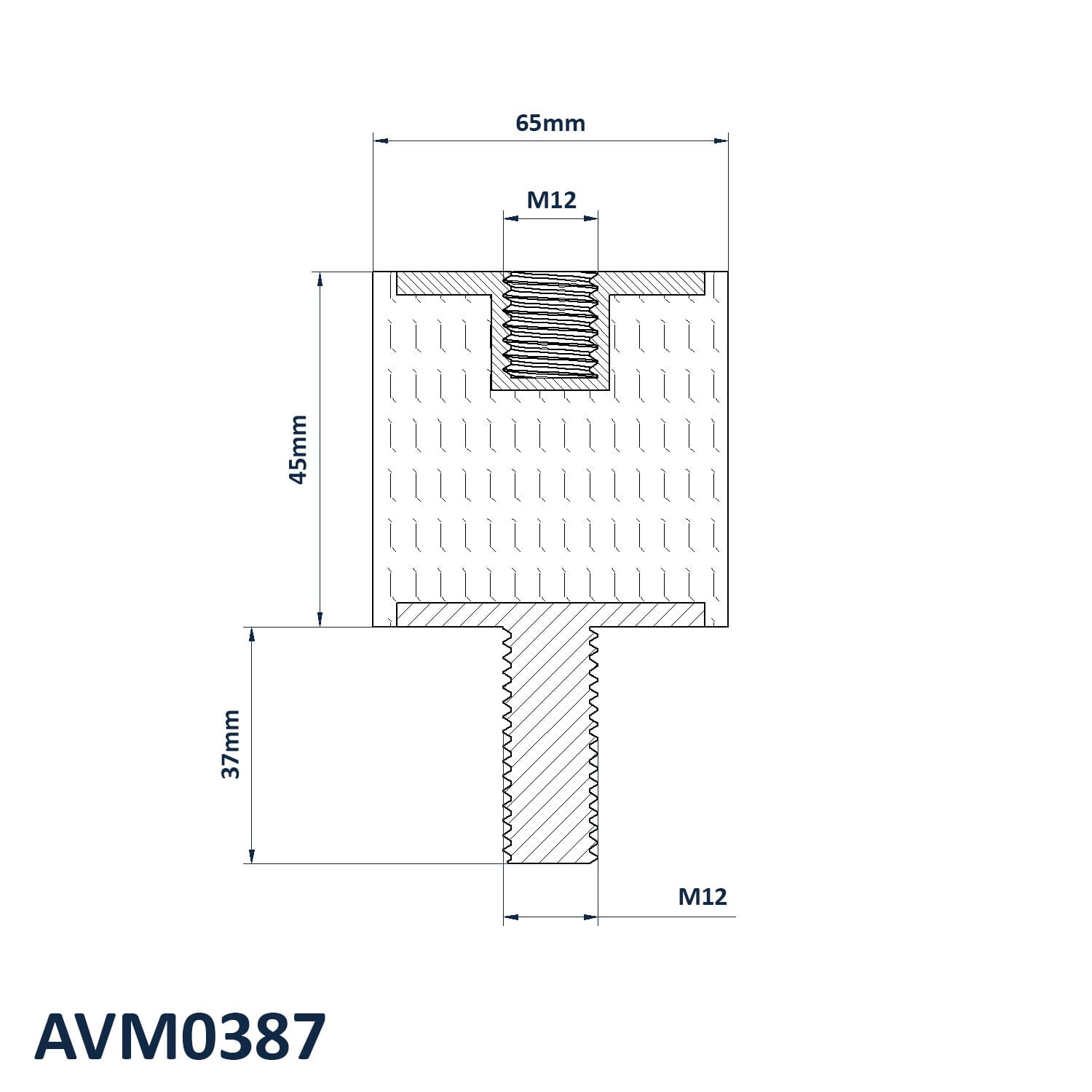

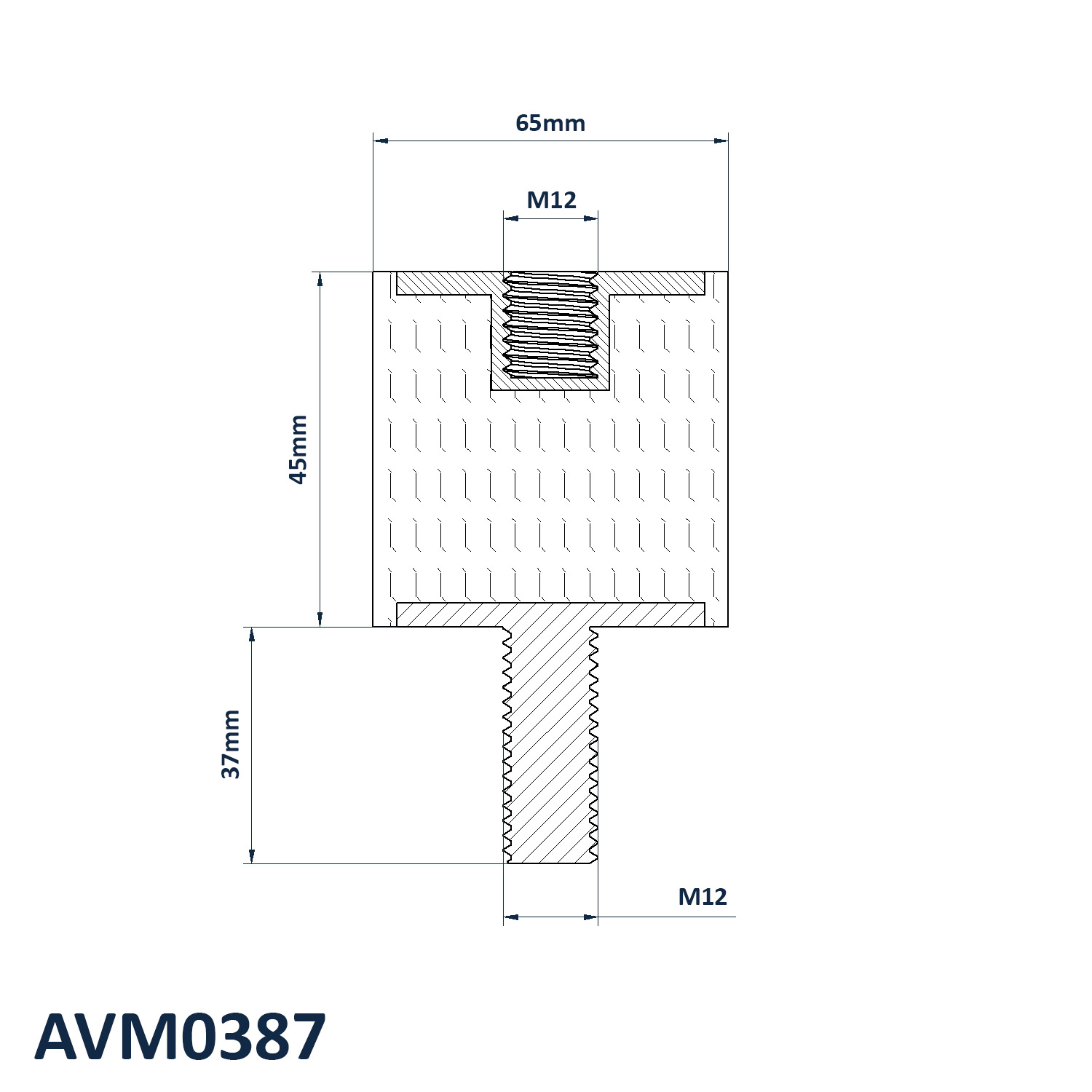

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 65mm
- Height: 45mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 190kg
- Deflection: 4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
