M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 117kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £19.31 | £23.17 |
| 2 - 249 | £19.30 | £23.16 |
| 250 - 499 | £17.92 | £21.50 |
| 500 - 999 | £16.54 | £19.85 |
| 1000 - 2499 | £15.17 | £18.20 |
| 2500 + | £13.78 | £16.54 |
£23.17 / each
.png)
Product Specification
| Diameter | 70mm |
| Height | 50mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 117kg |
| Deflection | 4.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 70mm x 50mm Bobbin | 117kg Weight Rating | Zinc Steel & Natural Rubber
Commonly used in equipment skids, this M12 threaded rubber bobbin supports equipment where noise, movement and transferred shock need to be reduced.
Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads. This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly.
Common Applications
- Securing HVAC casing sections
- Securing workshop machinery covers
- Reducing shock in equipment skids
- Fitting operator control boxes

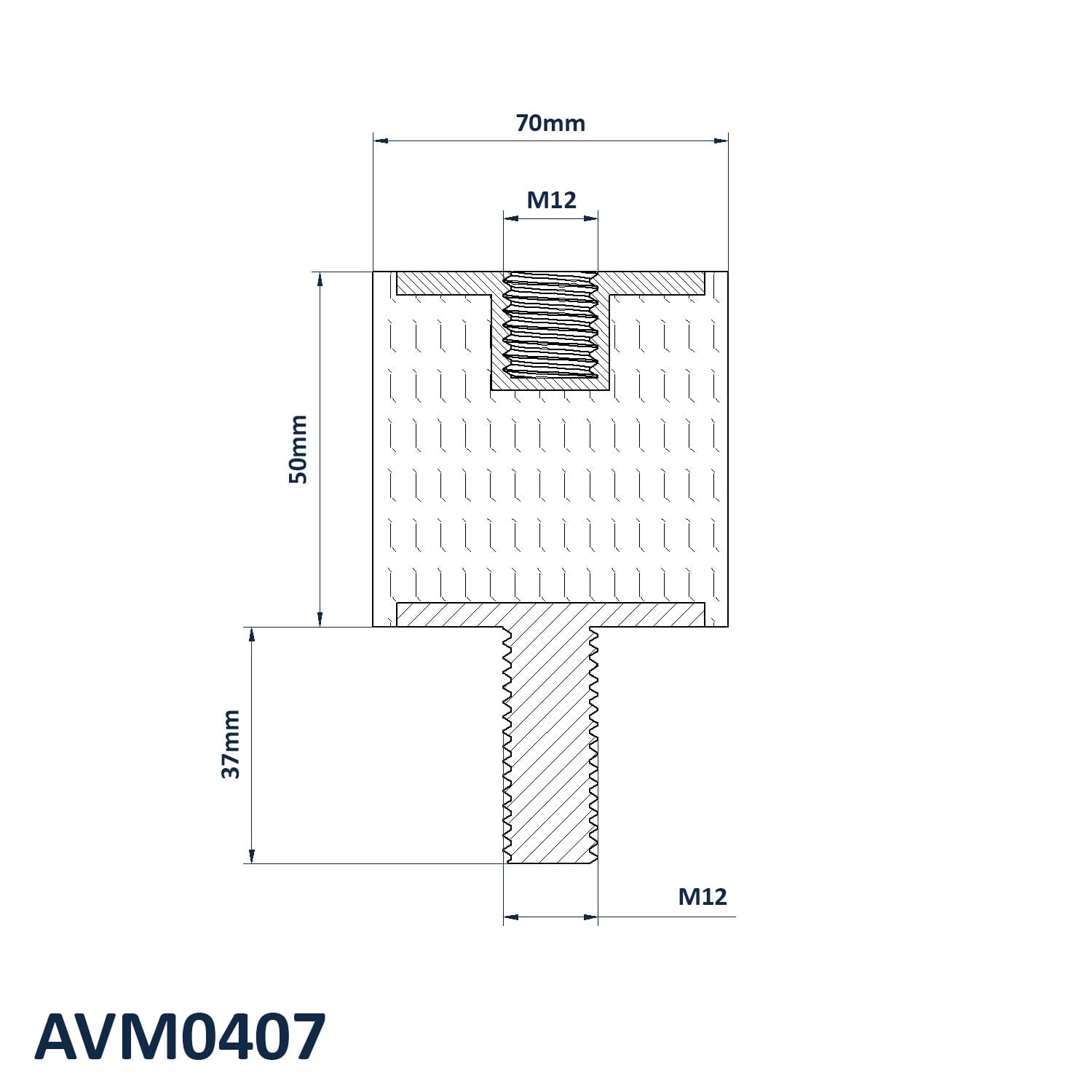

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 50mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 117kg
- Deflection: 4.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
