M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 288kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £14.85 | £17.82 |
| 2 - 249 | £14.83 | £17.80 |
| 250 - 499 | £13.78 | £16.53 |
| 500 - 999 | £12.72 | £15.26 |
| 1000 - 2499 | £11.66 | £13.99 |
| 2500 + | £10.60 | £12.72 |
£17.82 / each
.png)
Product Specification
| Diameter | 75mm |
| Height | 40mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 288kg |
| Deflection | 3.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 75mm x 40mm Bobbin | 288kg Weight Rating | Zinc Steel & Natural Rubber
Specified in maintenance and repair, the M12 male to female anti vibration fixing is used where a bonded rubber mount can protect connected parts from operational shock.
This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds. The male to female design helps reduce overall projection compared with two exposed studs while still giving a secure threaded fixing on both sides of the rubber bobbin. The bonded construction helps resist separation under normal compression and shear loading.
Common Applications
- Securing fabricated access doors
- Mounting lightweight machine frames
- Reducing vibration in control cabinets
- Fixing fabricated steel brackets

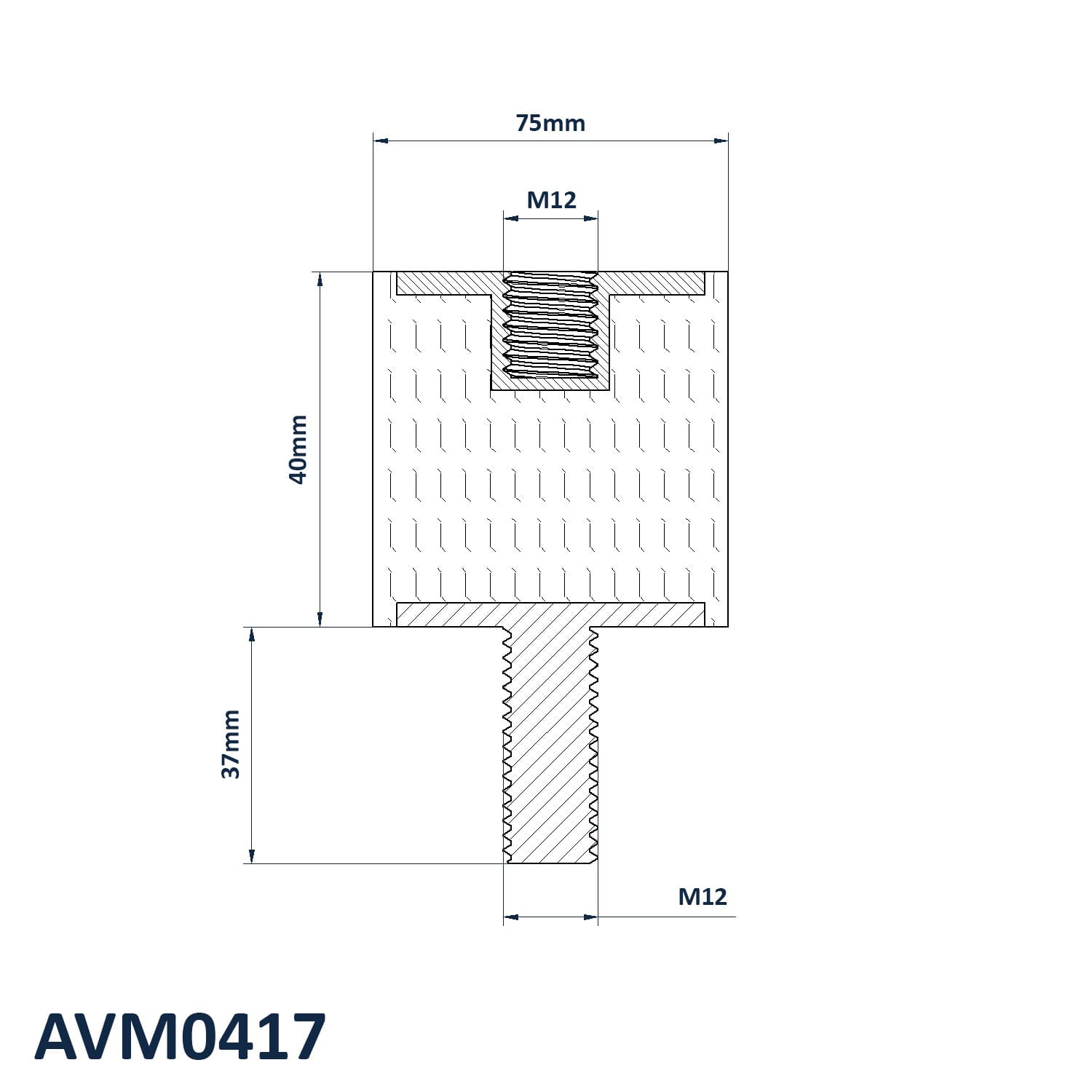

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 75mm
- Height: 40mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 288kg
- Deflection: 3.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
