M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 420kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £13.36 | £16.03 |
| 2 - 249 | £13.35 | £16.02 |
| 250 - 499 | £12.39 | £14.87 |
| 500 - 999 | £11.44 | £13.73 |
| 1000 - 2499 | £10.49 | £12.59 |
| 2500 + | £9.53 | £11.44 |
£16.03 / each
.png)
Product Specification
| Diameter | 75mm |
| Height | 25mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 420kg |
| Deflection | 1.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 75mm x 25mm Bobbin | 420kg Weight Rating | Zinc Steel & Natural Rubber
Providing isolation for vehicle body building, the M12 natural rubber vibration mount is suited to frames, panels and equipment covers that need a resilient fixing.
The male to female design helps reduce overall projection compared with two exposed studs while still giving a secure threaded fixing on both sides of the rubber bobbin. This size is useful when a reliable long-term fixing is needed without increasing the footprint of the mounted assembly. The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation.
Common Applications
- Protecting transit case internals
- Fitting operator control boxes
- Supporting production line attachments
- Cushioning access panels

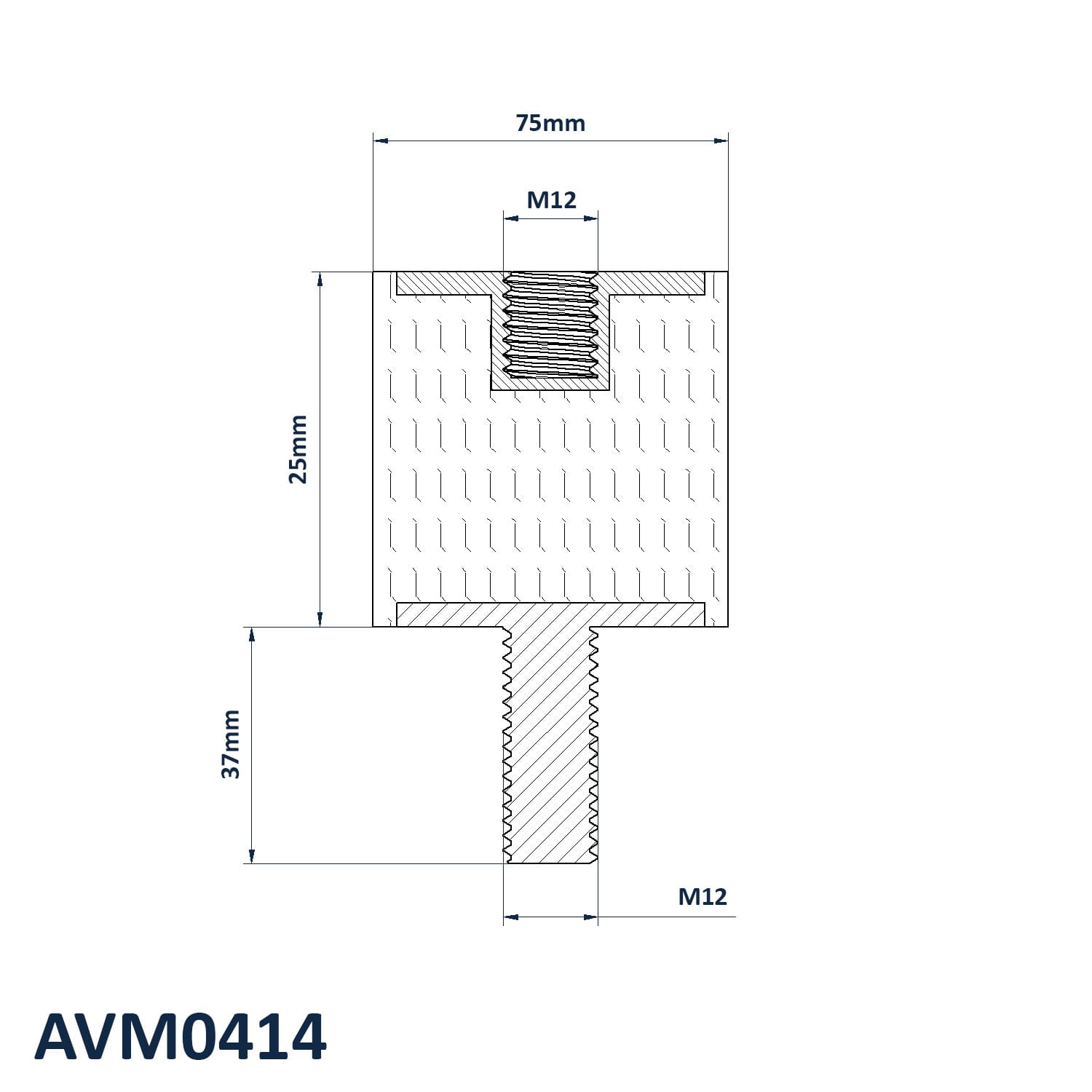

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 75mm
- Height: 25mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 420kg
- Deflection: 1.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
