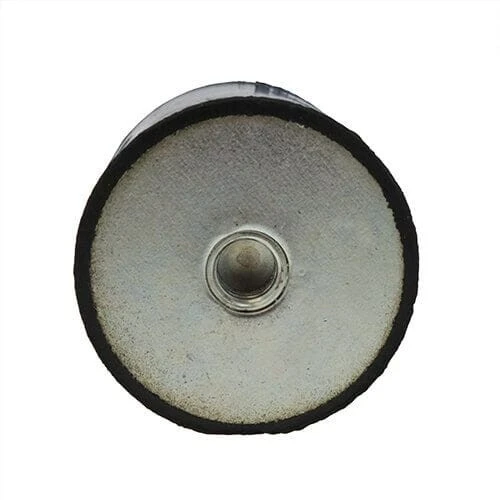

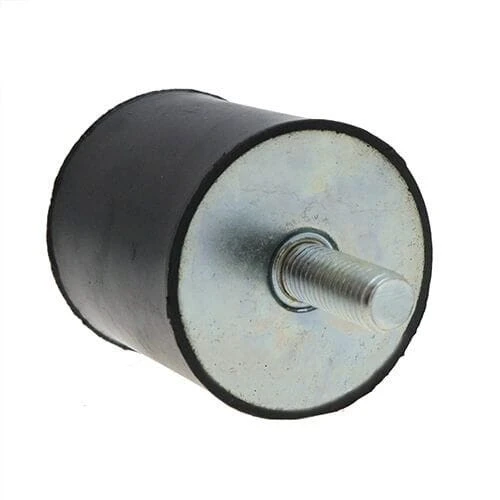

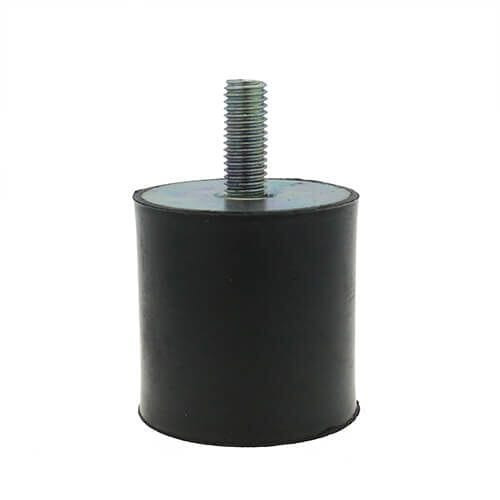

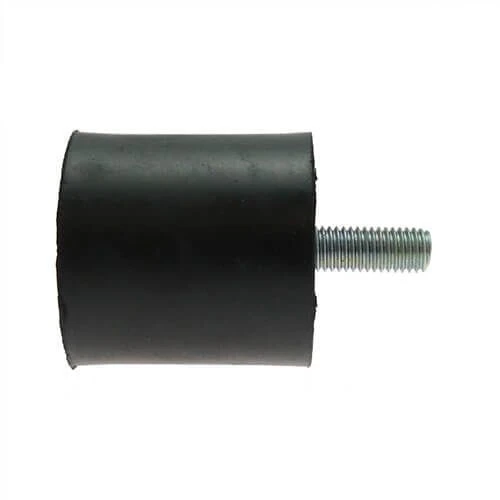

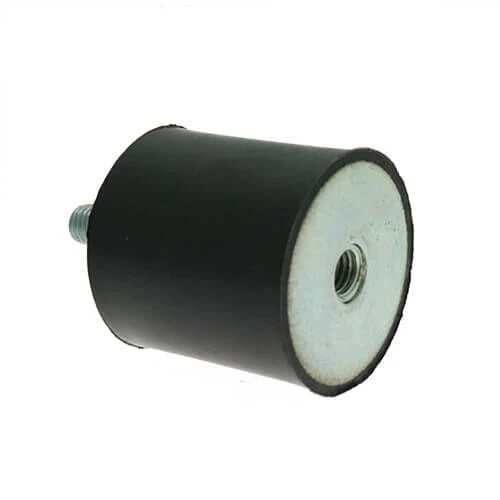

M16 x 44mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 300kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £32.62 | £39.14 |
| 2 - 249 | £31.97 | £38.36 |
| 250 - 499 | £31.32 | £37.59 |
| 500 - 999 | £30.70 | £36.84 |
| 1000 - 2499 | £30.08 | £36.10 |
| 2500 + | £29.48 | £35.38 |
£39.14 / each
Product Specification
| Diameter | 100mm |
| Height | 50mm |
| Thread Size | M16 |
| Thread Length | 44mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 300kg |
| Deflection | 4.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 x 44mm Male to Female Anti Vibration Mount | 100mm x 50mm Bobbin | 300kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for small engine installations, this M16 male to female rubber bobbin mount offers a simple rubber mounting solution for light to heavy duty assemblies.
Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels. This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing.
Common Applications
- Isolating fan housings from panels
- Isolating packaging machine parts
- Securing engine ancillary brackets
- Mounting pump base plates

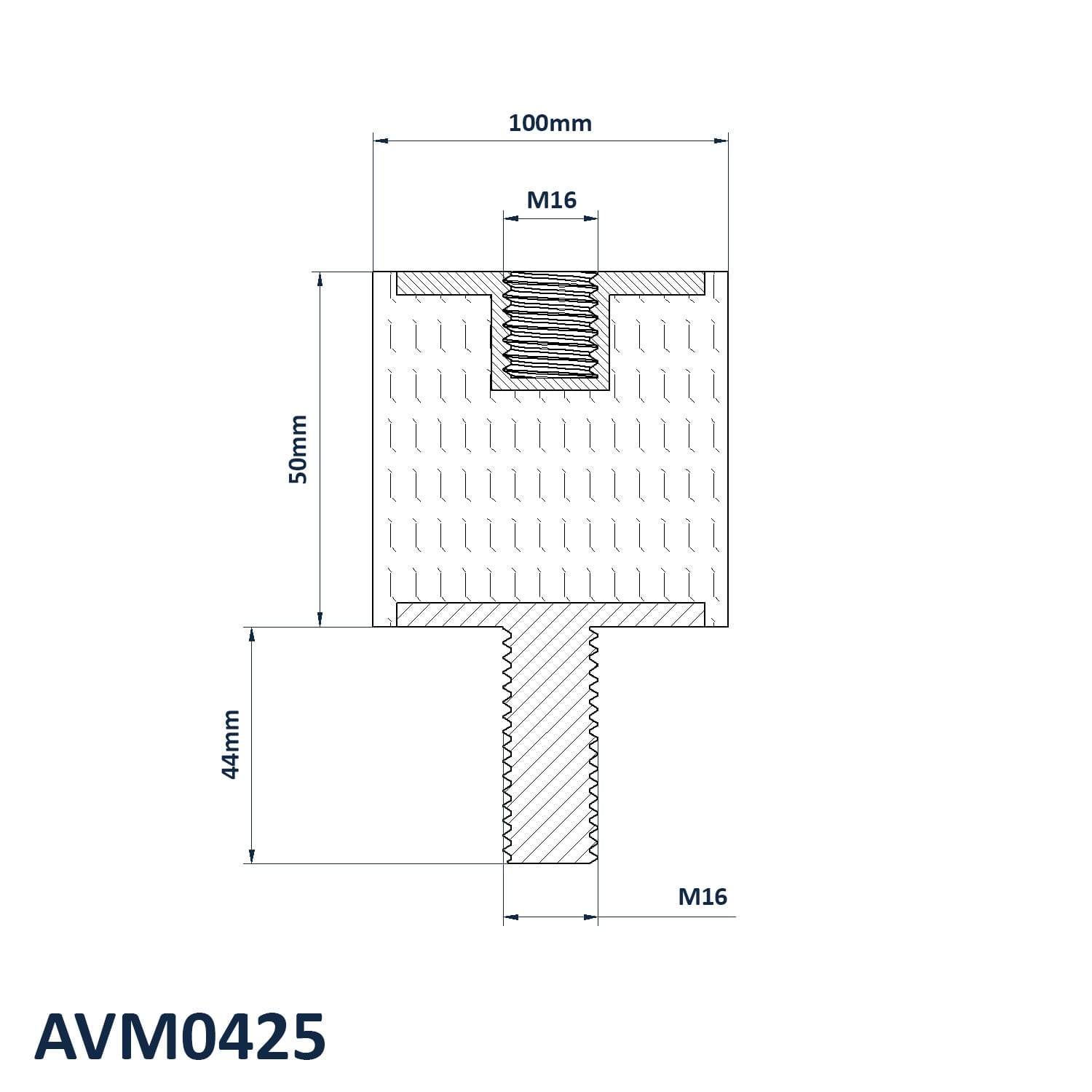

M16 x 44mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 50mm
- Thread Size: M16
- Thread Length: 44mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 300kg
- Deflection: 4.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
