M6 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 30kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.33 | £2.80 |
| 2 - 249 | £2.33 | £2.79 |
| 250 - 499 | £2.16 | £2.59 |
| 500 - 999 | £1.99 | £2.39 |
| 1000 - 2499 | £1.82 | £2.19 |
| 2500 + | £1.66 | £1.99 |
£2.80 / each
.png)
Product Specification
| Diameter | 15mm |
| Height | 15mm |
| Thread Size | M6 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 30kg |
| Deflection | 1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 Female to Female Anti Vibration Mount | 15mm x 15mm Bobbin | 30kg Weight Rating | Zinc Steel & Natural Rubber
Suitable for pump installations, the M6 female to female vibration damper mount is built for mounting parts that need separation from vibration and mechanical noise.
The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing. The female to female arrangement provides a lower-profile fixing before installation, accepting male threaded fasteners into both ends of the rubber body. The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation.
Common Applications
- Supporting display equipment housings
- Cushioning mechanical stop assemblies
- Mounting trailer equipment
- Fitting serviceable covers

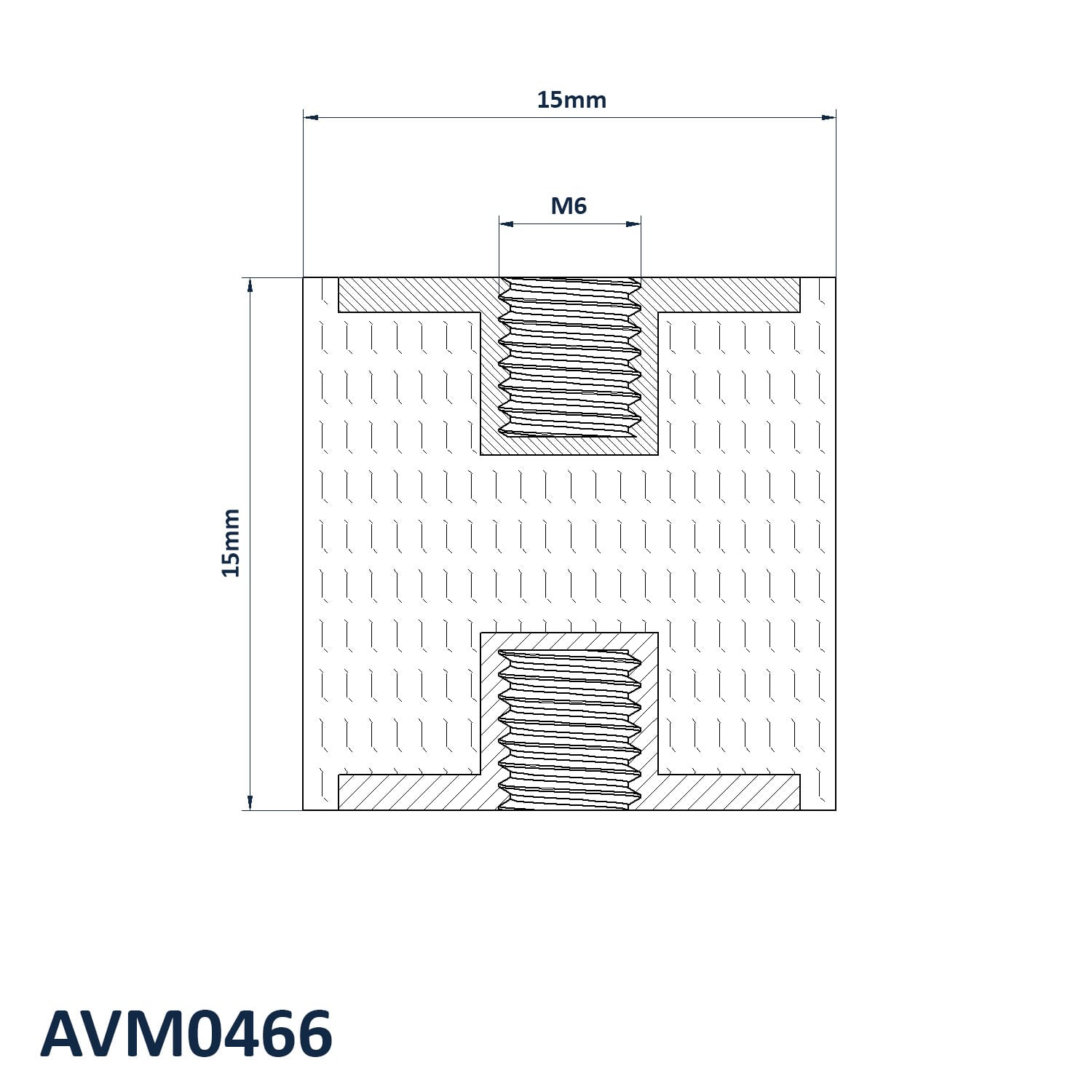

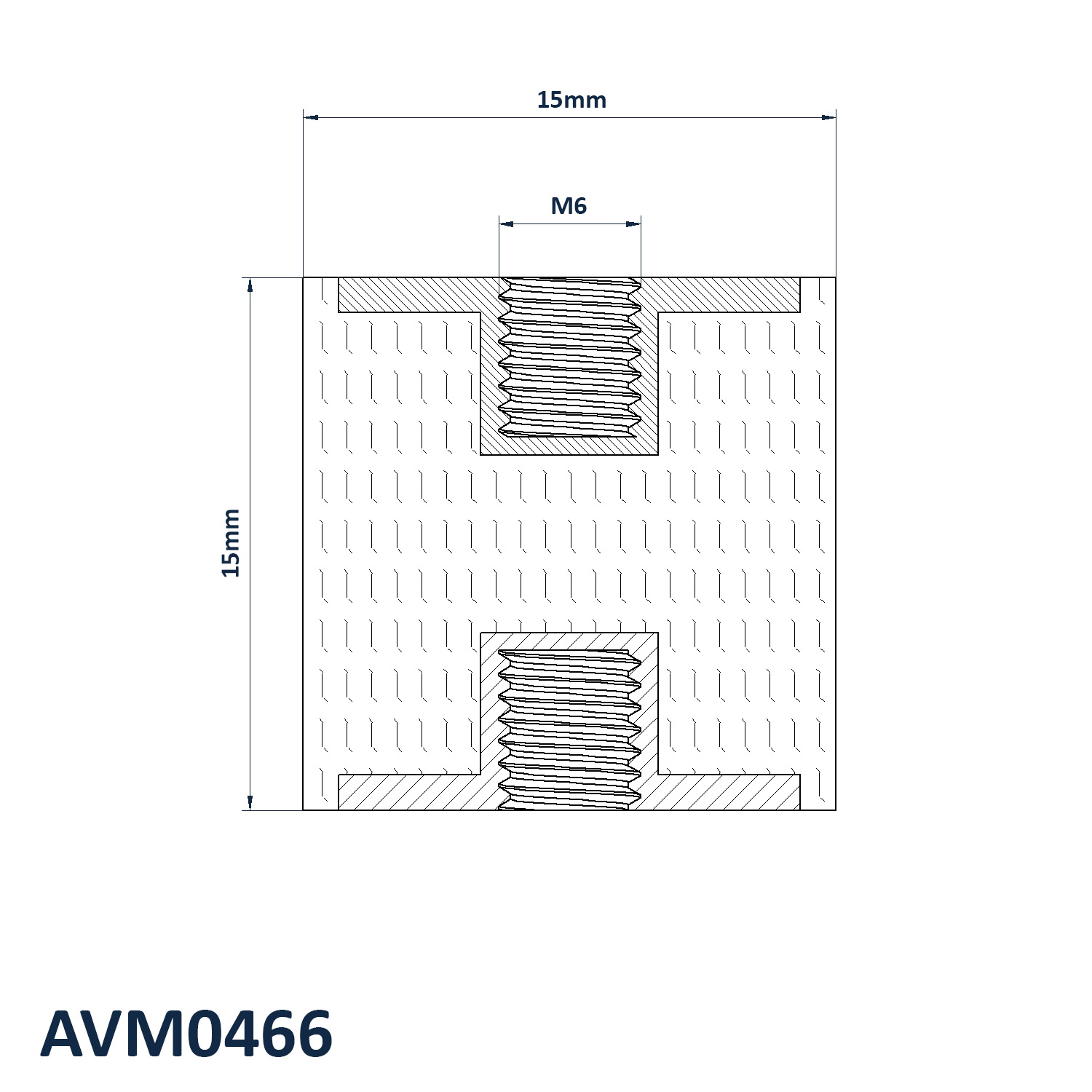

M6 15mm x 15mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 15mm
- Height: 15mm
- Thread Size: M6
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 30kg
- Deflection: 1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
