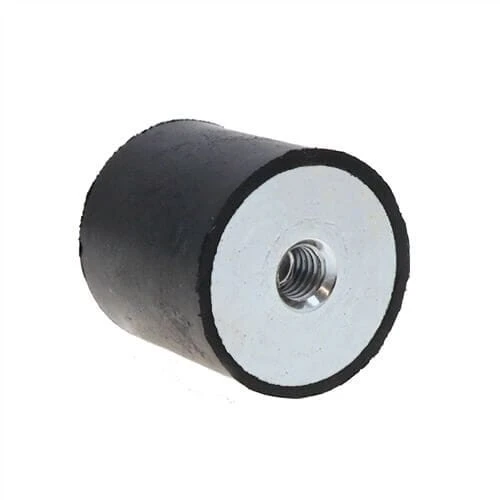

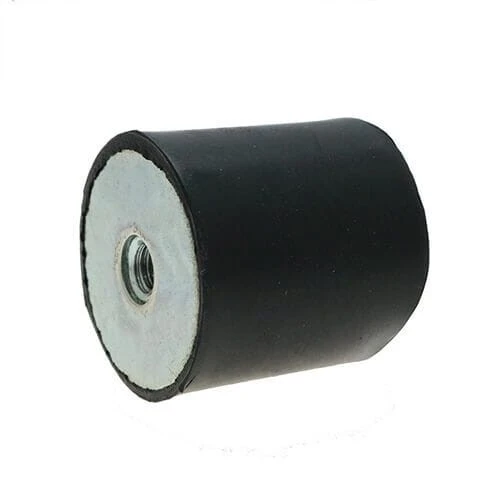

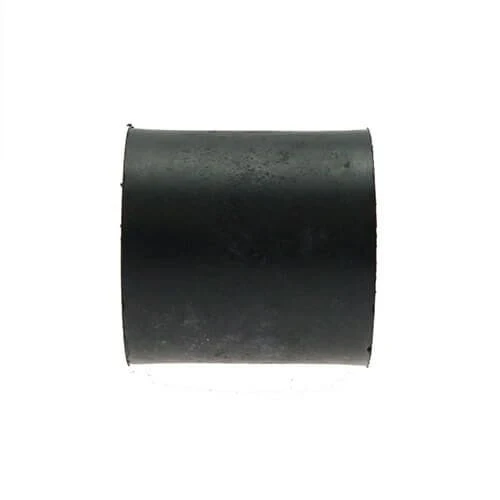

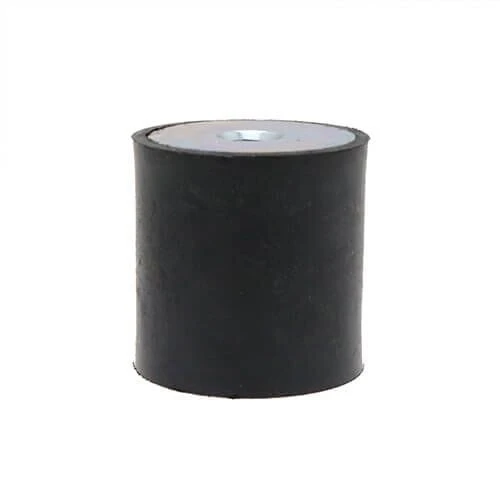

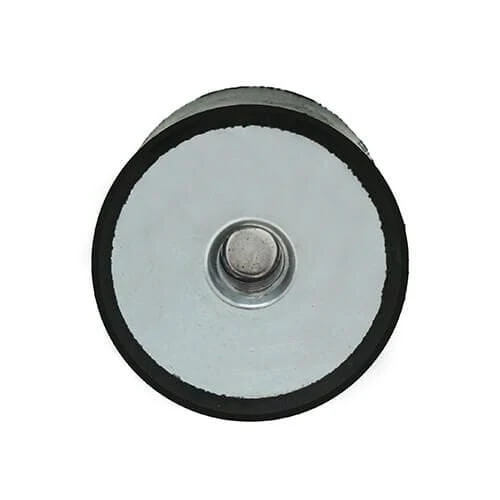

M6 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 25kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.23 | £2.67 |
| 2 - 249 | £2.21 | £2.65 |
| 250 - 499 | £2.05 | £2.46 |
| 500 - 999 | £1.90 | £2.28 |
| 1000 - 2499 | £1.74 | £2.09 |
| 2500 + | £1.58 | £1.90 |
£2.67 / each
.png)
Product Specification
| Diameter | 25mm |
| Height | 25mm |
| Thread Size | M6 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 25kg |
| Deflection | 2.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 Female to Female Anti Vibration Mount | 25mm x 25mm Bobbin | 25kg Weight Rating | Zinc Steel & Natural Rubber
Specified in agricultural equipment, the 25mm x 25mm rubber bobbin buffer is used where a bonded rubber mount can protect connected parts from operational shock.
This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds. Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. This size is useful when a reliable long-term fixing is needed without increasing the footprint of the mounted assembly.
Common Applications
- Securing pump brackets
- Reducing noise in production equipment
- Mounting industrial lighting frames
- Supporting commercial appliance panels

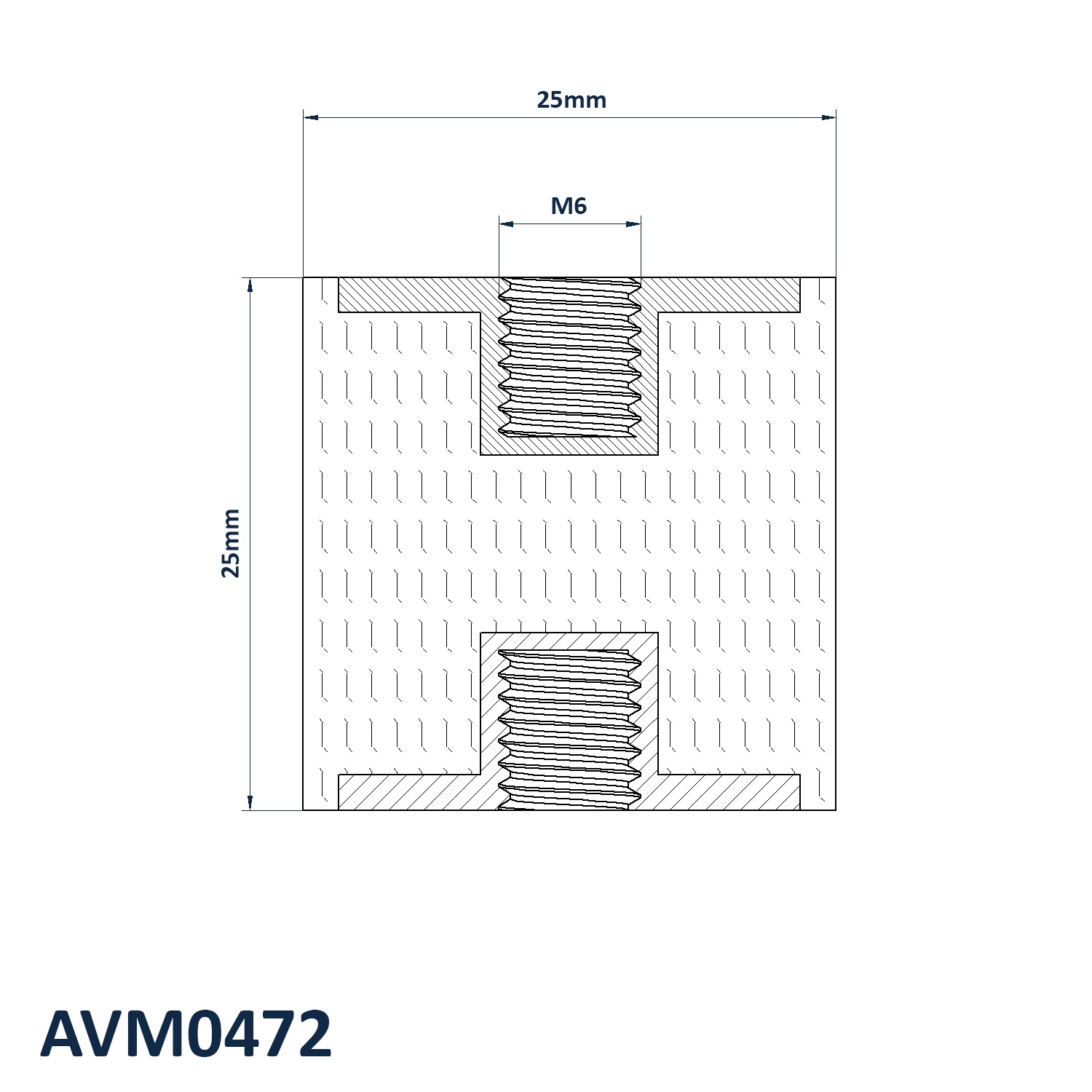

M6 25mm x 25mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 25mm
- Thread Size: M6
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 25kg
- Deflection: 2.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
