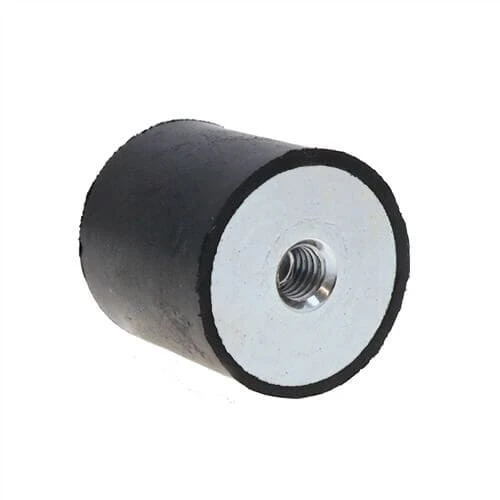

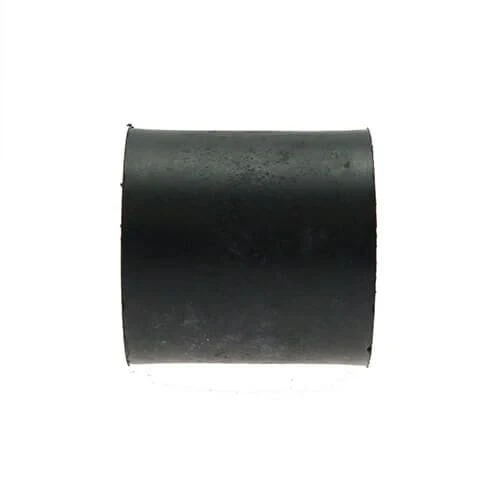

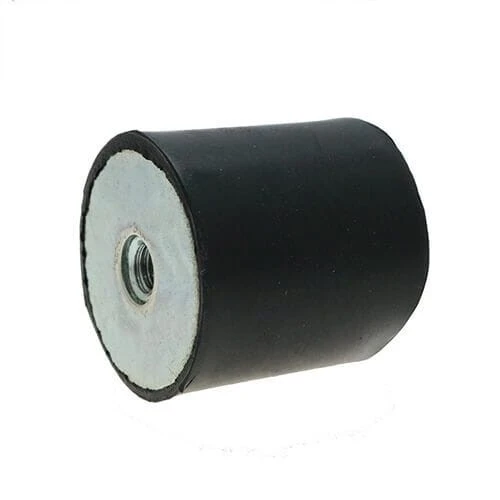

M6 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 13kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.23 | £2.67 |
| 2 - 249 | £2.21 | £2.65 |
| 250 - 499 | £2.05 | £2.46 |
| 500 - 999 | £1.90 | £2.28 |
| 1000 - 2499 | £1.74 | £2.09 |
| 2500 + | £1.58 | £1.90 |
£2.67 / each
Product Specification
| Diameter | 25mm |
| Height | 25mm |
| Thread Size | M6 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 13kg |
| Deflection | 2.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 Female to Female Anti Vibration Mount | 25mm x 25mm Bobbin | 13kg Weight Rating | Zinc Steel & Natural Rubber
A practical option for food processing equipment, this M6 female to female equipment isolator helps absorb movement where rigid metal-to-metal mounting would transfer vibration.
The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required. Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings.
Common Applications
- Mounting exhaust fan brackets
- Securing HVAC casing sections
- Securing workshop machinery covers
- Reducing shock in equipment skids

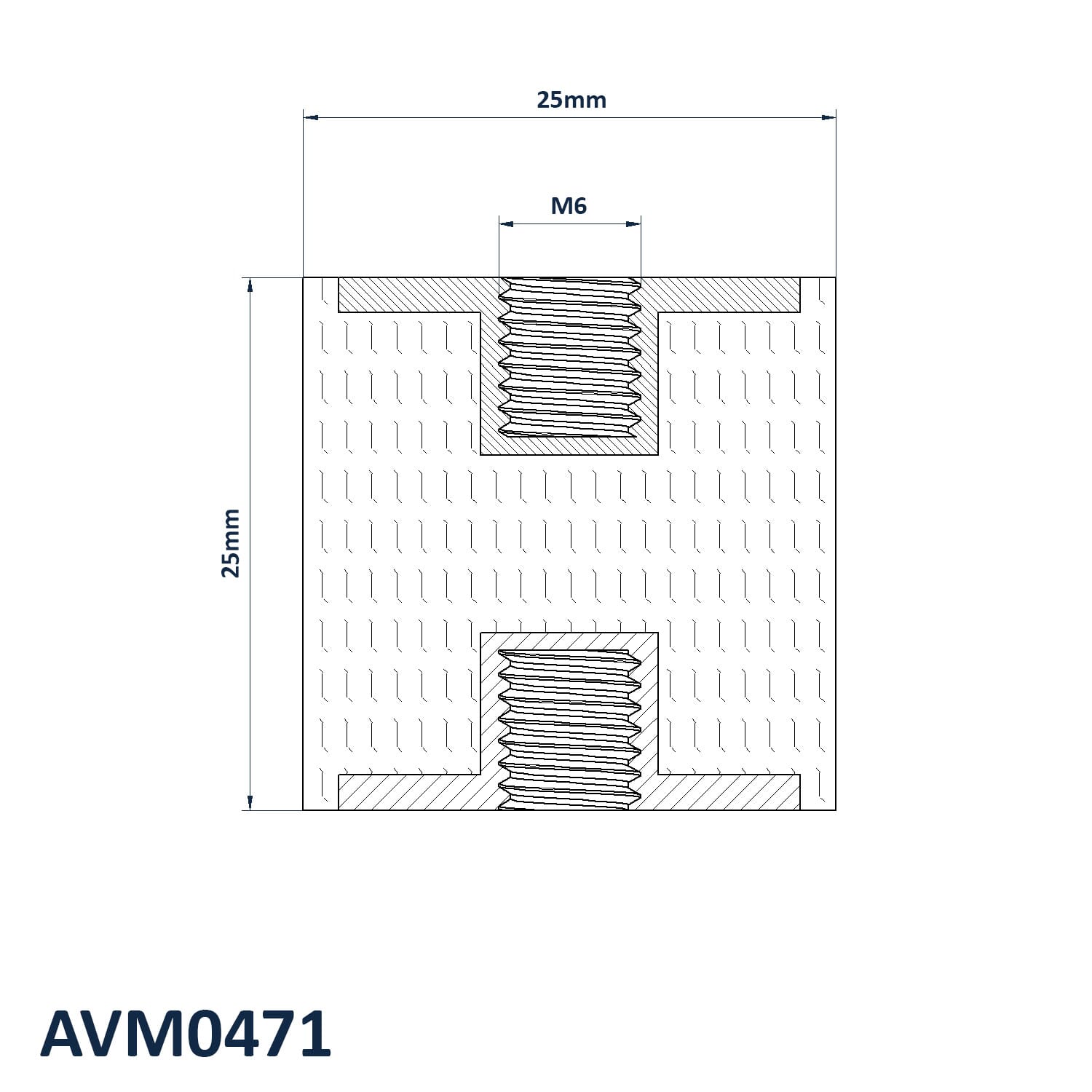

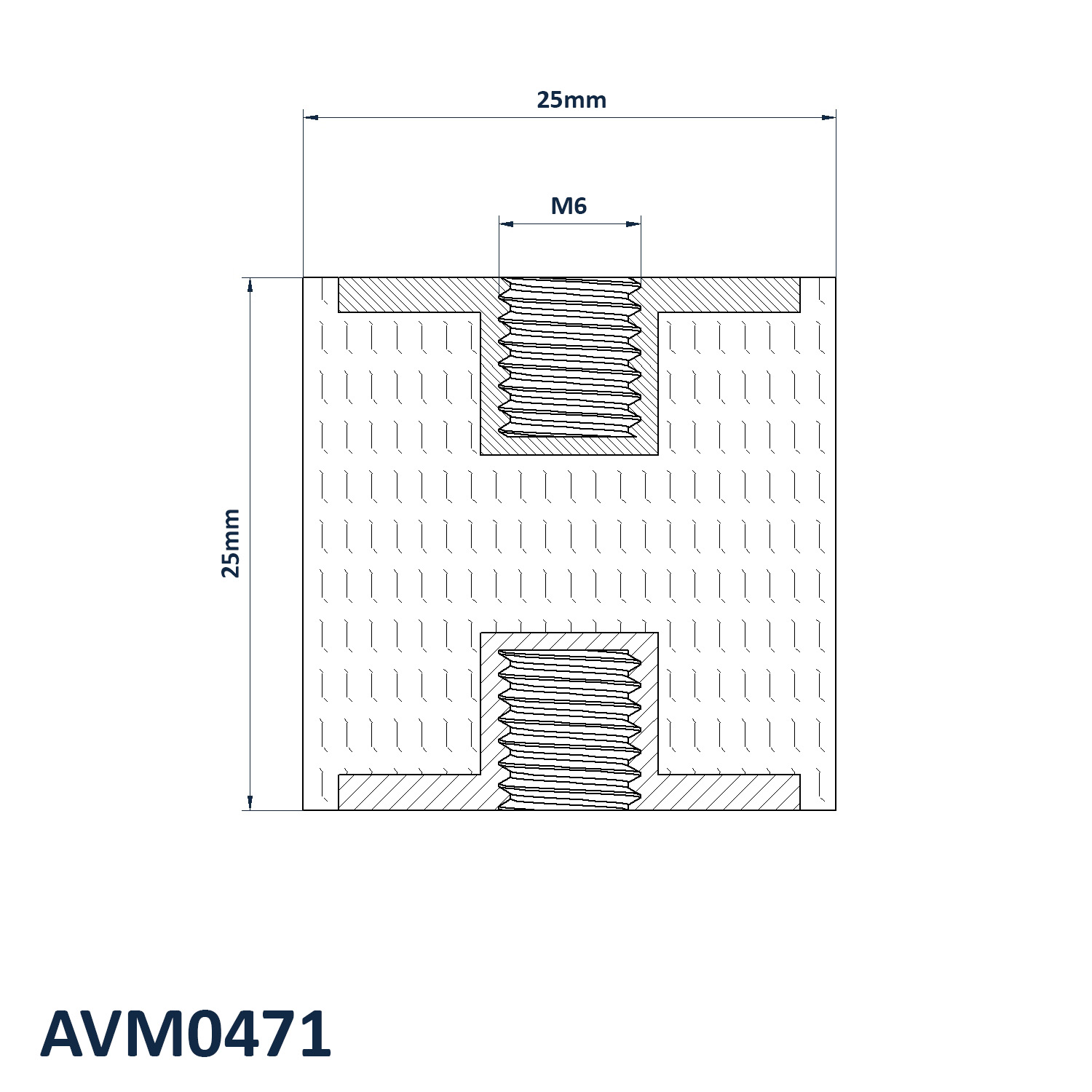

M6 25mm x 25mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 25mm
- Thread Size: M6
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 13kg
- Deflection: 2.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
