M8 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 25kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.76 | £3.31 |
| 2 - 249 | £2.75 | £3.30 |
| 250 - 499 | £2.55 | £3.06 |
| 500 - 999 | £2.35 | £2.82 |
| 1000 - 2499 | £2.16 | £2.59 |
| 2500 + | £1.96 | £2.35 |
£3.31 / each
.png)
Product Specification
| Diameter | 25mm |
| Height | 25mm |
| Thread Size | M8 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 25kg |
| Deflection | 2.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 Female to Female Anti Vibration Mount | 25mm x 25mm Bobbin | 25kg Weight Rating | Zinc Steel & Natural Rubber
Manufactured for food processing equipment, this female to female rubber isolation bobbin helps separate moving assemblies from surrounding frames without needing a large isolator.
It suits projects needing a natural rubber isolator, bonded metal mount or resilient machinery fixing. The female to female bobbin has internal threaded inserts at both ends. This is useful where bolts are fitted from each side and no fixed stud should protrude before assembly. Bonded zinc steel and natural rubber construction gives a durable mounting point for repeated equipment vibration.
Common Applications
- Isolating packaging machine parts
- Fitting serviceable covers
- Mounting small gearbox housings
- Isolating compressor guards

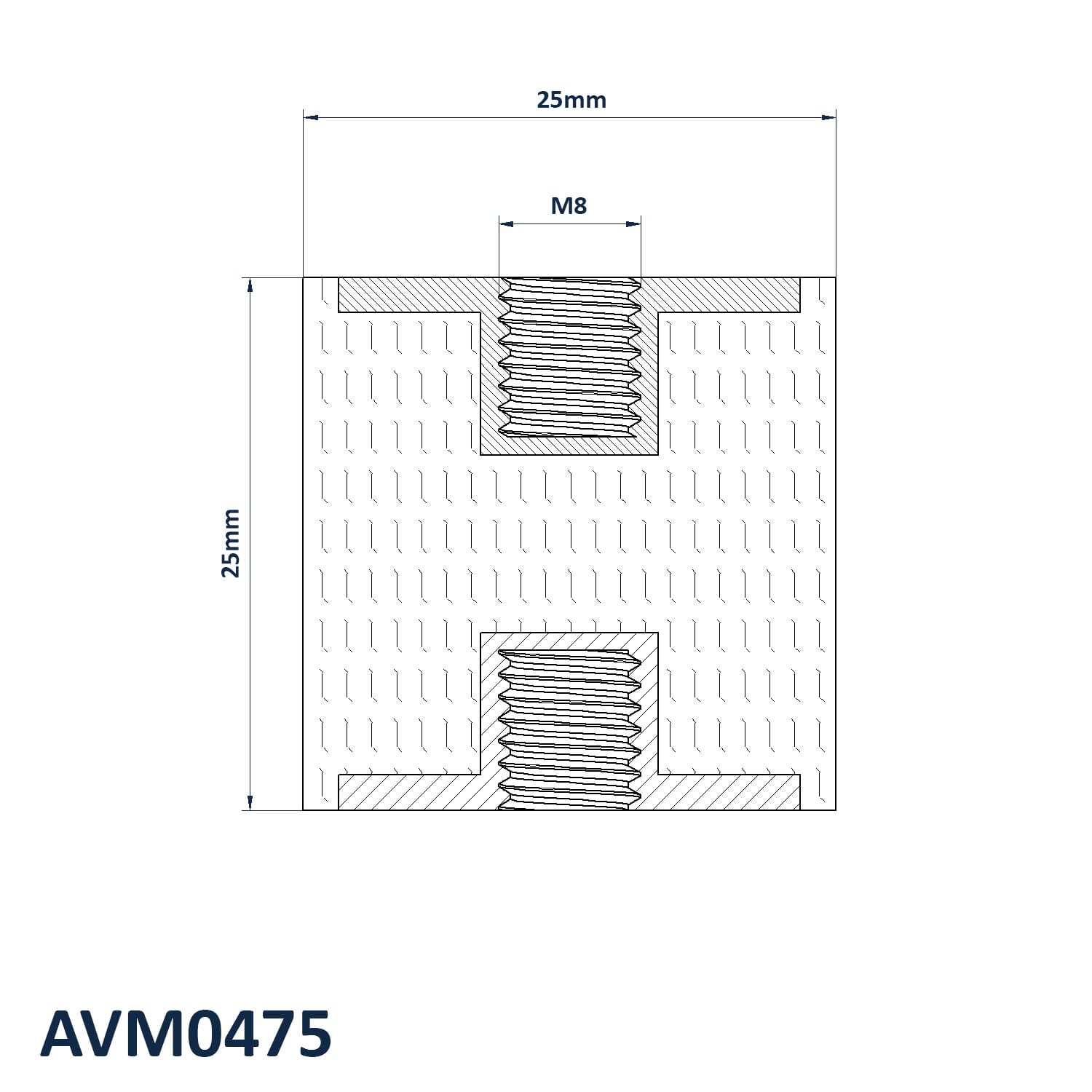

M8 25mm x 25mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 25mm
- Thread Size: M8
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 25kg
- Deflection: 2.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
