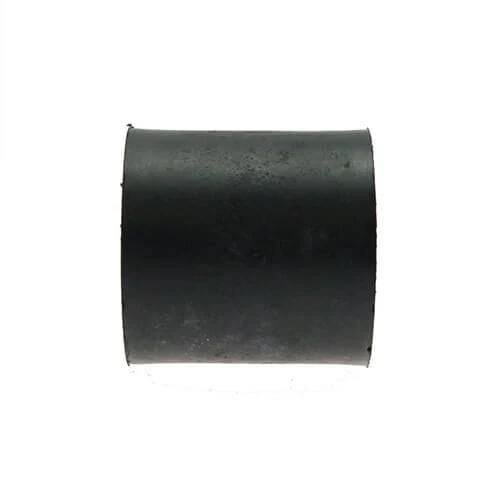

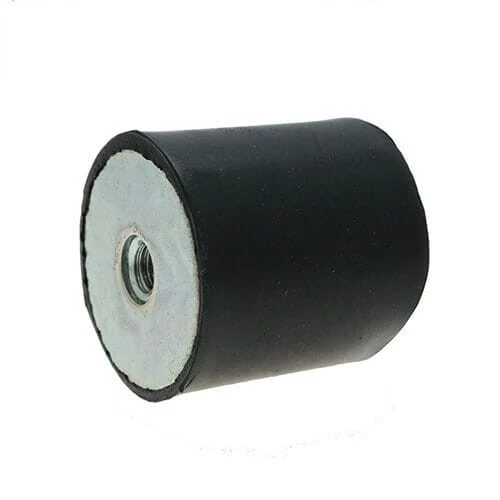

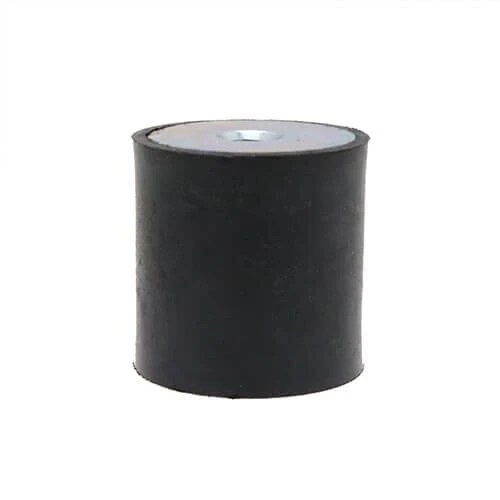

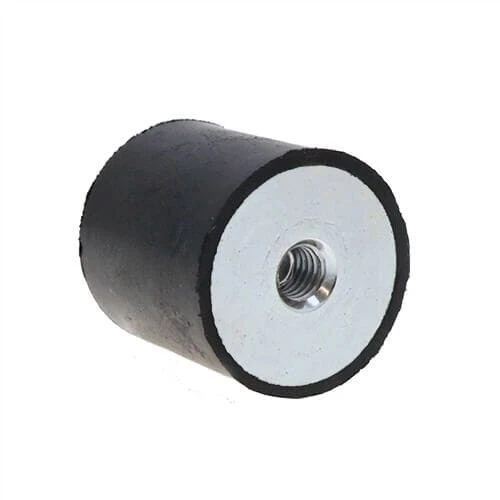

M8 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 30kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £3.41 | £4.09 |
| 2 - 249 | £3.39 | £4.07 |
| 250 - 499 | £3.15 | £3.78 |
| 500 - 999 | £2.91 | £3.49 |
| 1000 - 2499 | £2.67 | £3.20 |
| 2500 + | £2.42 | £2.91 |
£4.09 / each
.png)
Product Specification
| Diameter | 30mm |
| Height | 30mm |
| Thread Size | M8 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 30kg |
| Deflection | 2.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 Female to Female Anti Vibration Mount | 30mm x 30mm Bobbin | 30kg Weight Rating | Zinc Steel & Natural Rubber
A practical option for electrical enclosures, this M8 female to female vibration isolation mount helps absorb movement where rigid metal-to-metal mounting would transfer vibration.
The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required. Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels.
Common Applications
- Supporting display equipment housings
- Securing guarding panels
- Cushioning access panels
- Protecting inspection equipment

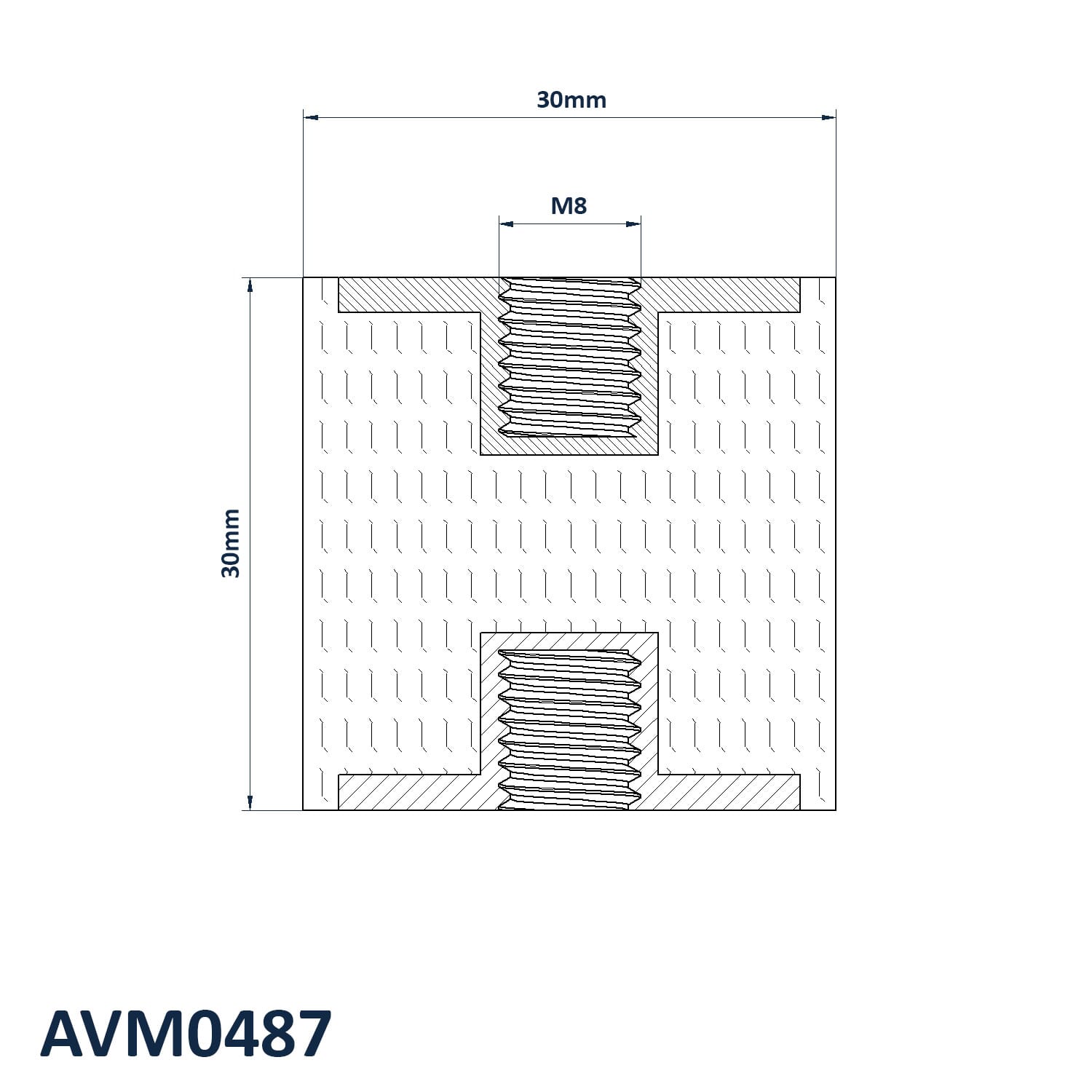

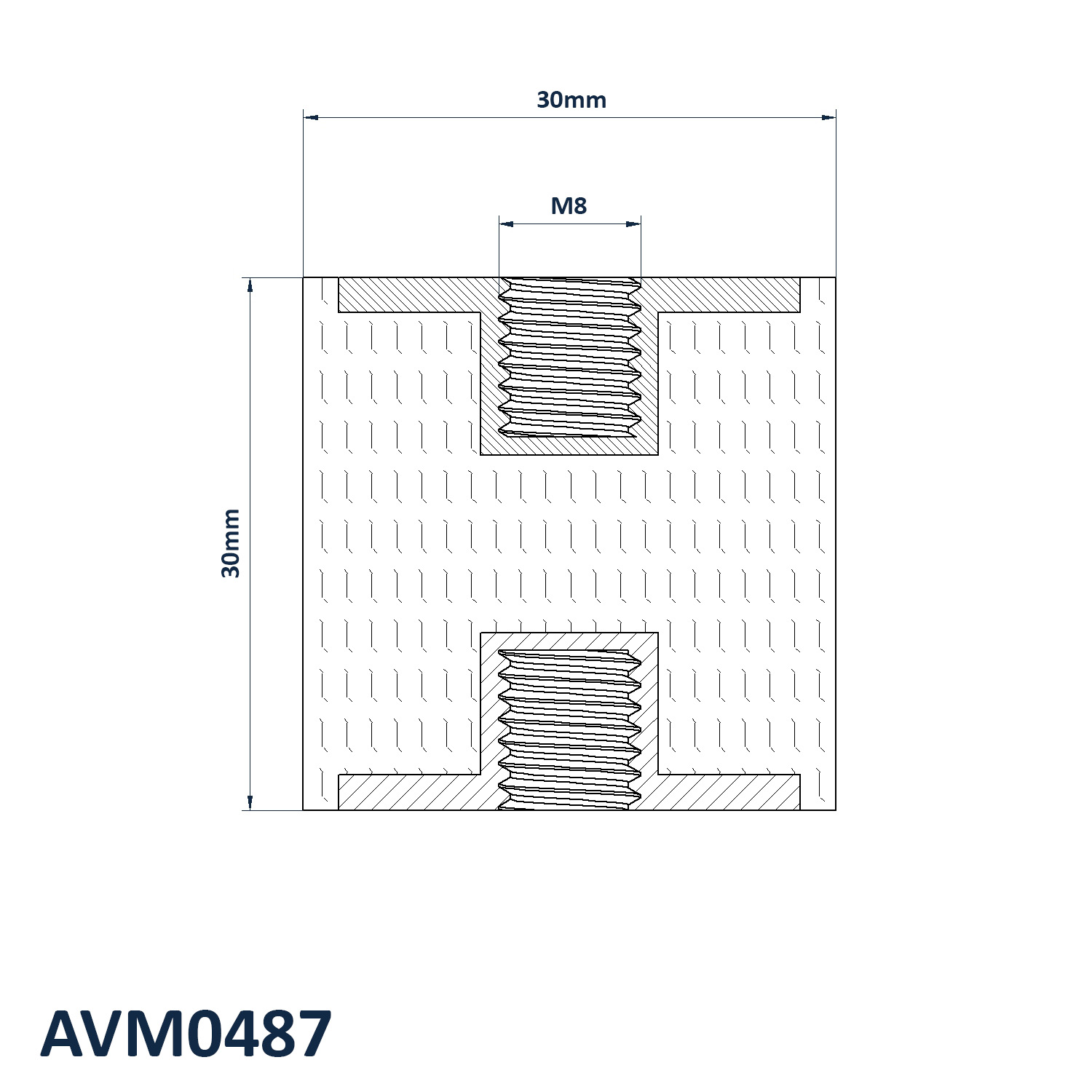

M8 30mm x 30mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 30mm
- Height: 30mm
- Thread Size: M8
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 30kg
- Deflection: 2.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
