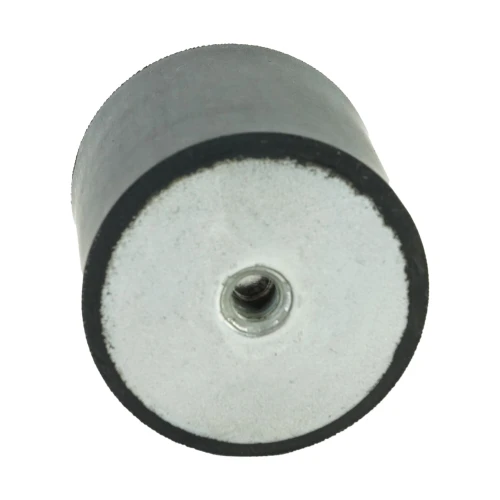

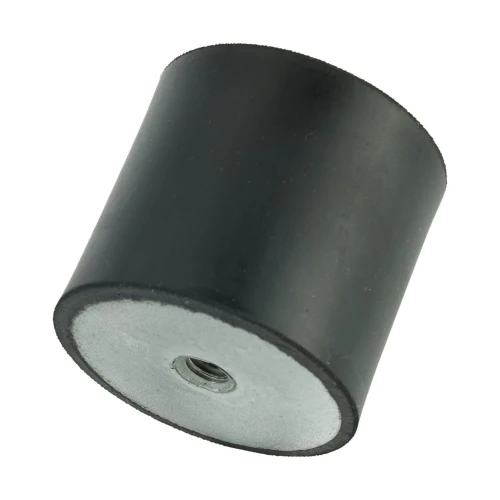

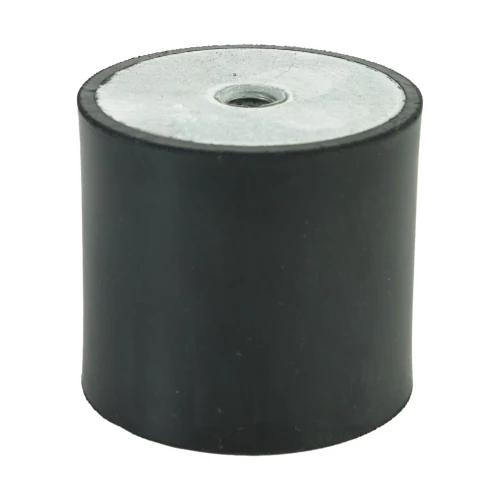

M8 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 46kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £6.63 | £7.96 |
| 2 - 249 | £6.50 | £7.80 |
| 250 - 499 | £6.37 | £7.64 |
| 500 - 999 | £6.24 | £7.49 |
| 1000 - 2499 | £6.12 | £7.34 |
| 2500 + | £6.00 | £7.20 |
£7.96 / each
Product Specification
| Diameter | 45mm |
| Height | 45mm |
| Thread Size | M8 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 46kg |
| Deflection | 4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 Female to Female Anti Vibration Mount | 45mm x 45mm Bobbin | 46kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for food processing equipment, the 45mm x 45mm rubber bobbin buffer provides a neat vibration control point where space and fixing access are limited.
With female threads on both faces, this mount allows separate bolts to be installed from either side. That makes it useful for enclosed frames, serviceable panels and assemblies where stud projection is not wanted. Its measured deflection helps reduce transferred movement to panels, housings and supporting frames. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Fitting operator control boxes
- Supporting production line attachments
- Cushioning access panels
- Isolating conveyor sensors

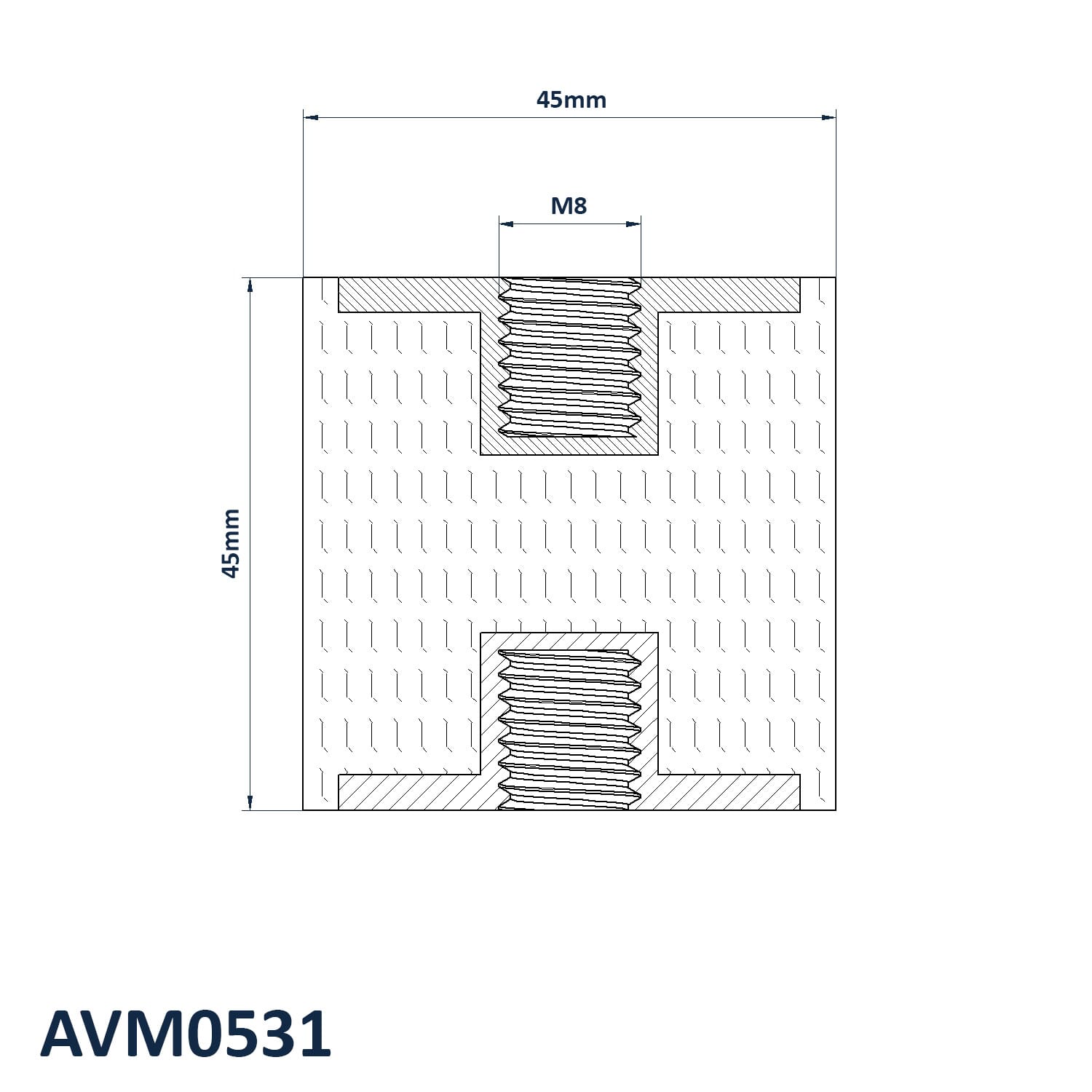

M8 45mm x 45mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 45mm
- Height: 45mm
- Thread Size: M8
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 46kg
- Deflection: 4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
