M12 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 130kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £15.95 | £19.14 |
| 2 - 249 | £15.94 | £19.13 |
| 250 - 499 | £14.80 | £17.76 |
| 500 - 999 | £13.67 | £16.40 |
| 1000 - 2499 | £12.53 | £15.03 |
| 2500 + | £11.38 | £13.66 |
£19.14 / each
.png)
Product Specification
| Diameter | 70mm |
| Height | 45mm |
| Thread Size | M12 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 130kg |
| Deflection | 3.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 Female to Female Anti Vibration Mount | 70mm x 45mm Bobbin | 130kg Weight Rating | Zinc Steel & Natural Rubber
Specified in vehicle body building, the 70mm x 45mm female to female anti-vibration bobbin is used where a bonded rubber mount can protect connected parts from operational shock.
The mount fits applications where a resilient fixing, vibration isolator or rubber mounting bobbin is required. Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. This size is useful when a reliable long-term fixing is needed without increasing the footprint of the mounted assembly.
Common Applications
- Supporting mobile equipment panels
- Supporting compressor feet
- Mounting aluminium framework
- Supporting electronics trays

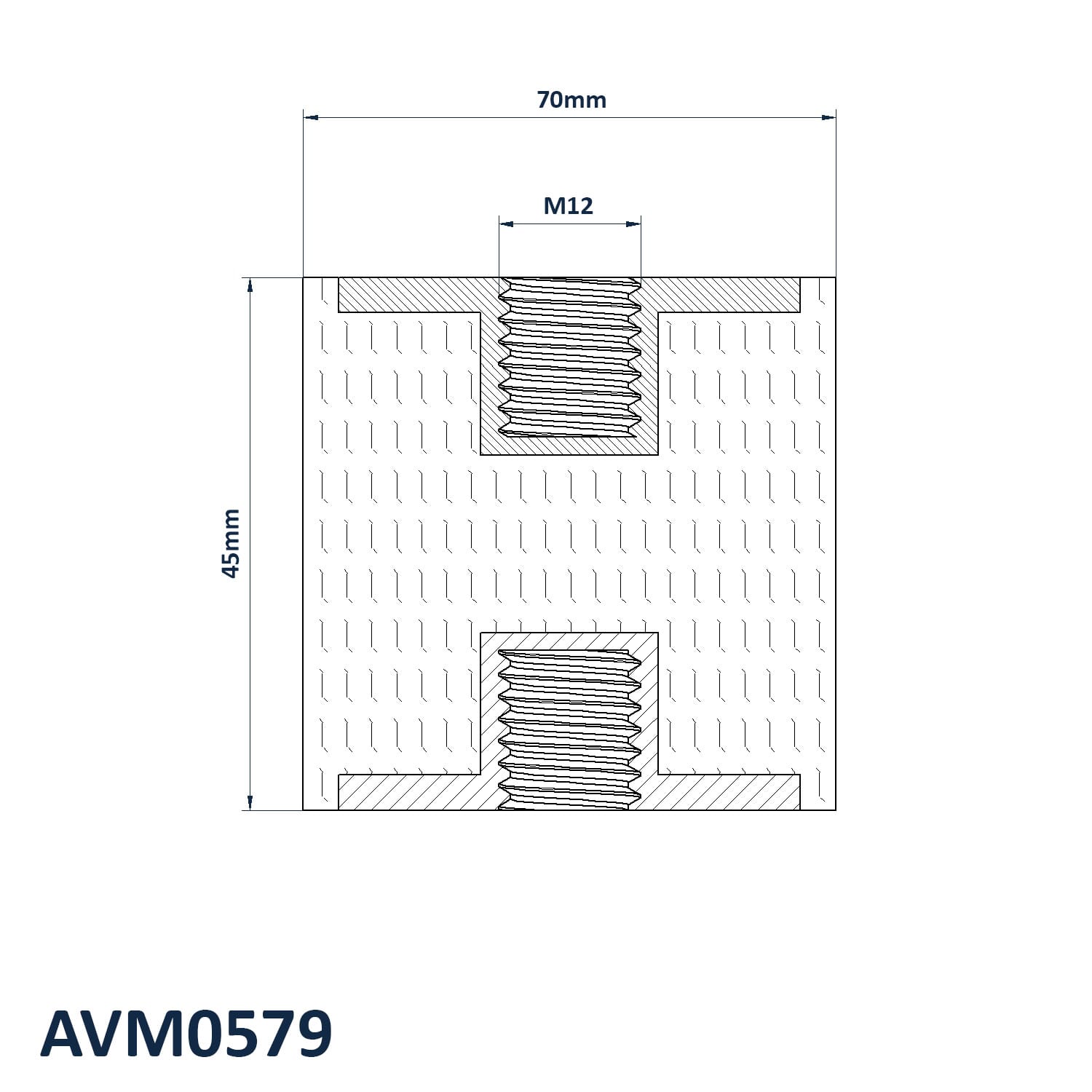

M12 70mm x 45mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 45mm
- Thread Size: M12
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 130kg
- Deflection: 3.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
