M10 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 130kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £15.95 | £19.14 |
| 2 - 249 | £15.94 | £19.13 |
| 250 - 499 | £14.80 | £17.76 |
| 500 - 999 | £13.67 | £16.40 |
| 1000 - 2499 | £12.53 | £15.03 |
| 2500 + | £11.38 | £13.66 |
£19.14 / each
Product Specification
| Diameter | 70mm |
| Height | 45mm |
| Thread Size | M10 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 130kg |
| Deflection | 3.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 Female to Female Anti Vibration Mount | 70mm x 45mm Bobbin | 130kg Weight Rating | Zinc Steel & Natural Rubber
Providing isolation for automotive assemblies, the M10 female to female rubber bobbin mount is suited to frames, panels and equipment covers that need a resilient fixing.
Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. A 3.9mm deflection value helps the mount cushion movement while maintaining a stable fixing point. The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation.
Common Applications
- Protecting sensitive monitoring devices
- Isolating small drive units
- Securing HVAC casing sections
- Mounting laboratory instrument feet

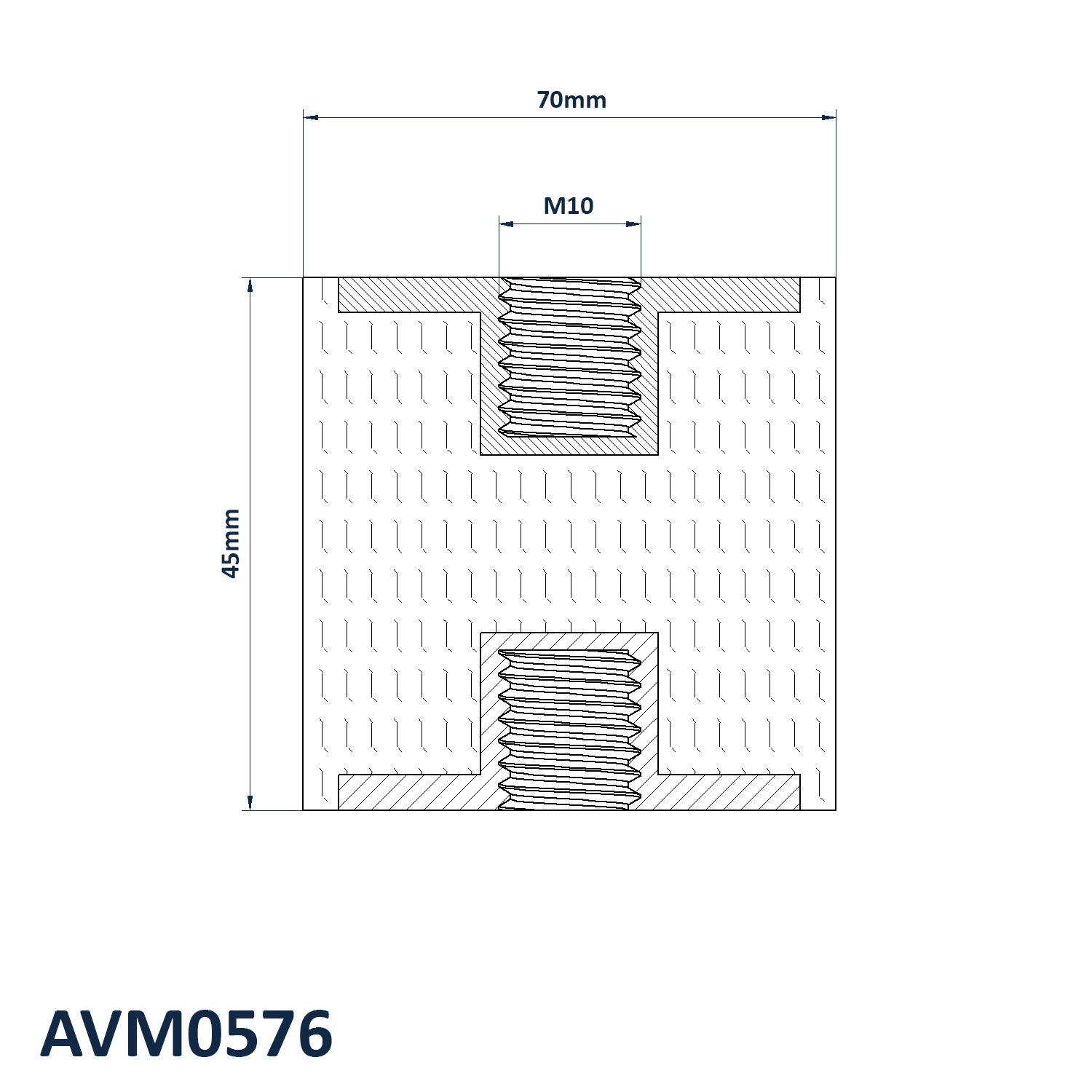

M10 70mm x 45mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 45mm
- Thread Size: M10
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 130kg
- Deflection: 3.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
