M12 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 155kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £13.77 | £16.52 |
| 2 - 249 | £13.49 | £16.19 |
| 250 - 499 | £13.22 | £15.87 |
| 500 - 999 | £12.96 | £15.55 |
| 1000 - 2499 | £12.70 | £15.24 |
| 2500 + | £12.44 | £14.93 |
£16.52 / each
Product Specification
| Diameter | 75mm |
| Height | 45mm |
| Thread Size | M12 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 155kg |
| Deflection | 3.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 Female to Female Anti Vibration Mount | 75mm x 45mm Bobbin | 155kg Weight Rating | Zinc Steel & Natural Rubber
Specified in construction plant, the M12 female to female anti vibration fixing is used where a bonded rubber mount can protect connected parts from operational shock.
The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed. Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. This size is useful when a reliable long-term fixing is needed without increasing the footprint of the mounted assembly.
Common Applications
- Reducing resonance in frame assemblies
- Reducing transferred movement in brackets
- Fixing machine guards
- Supporting signage housings

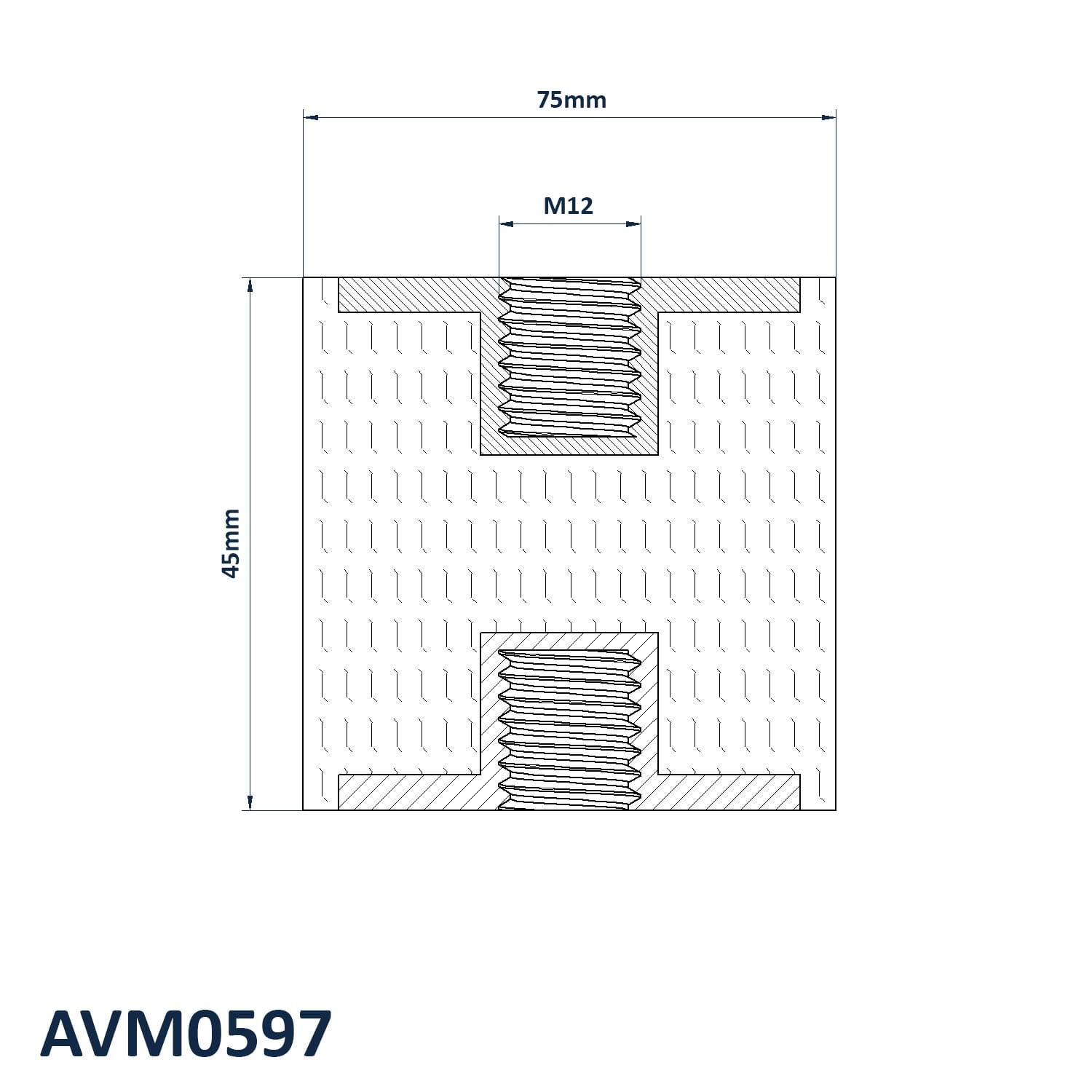

M12 75mm x 45mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 75mm
- Height: 45mm
- Thread Size: M12
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 155kg
- Deflection: 3.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
