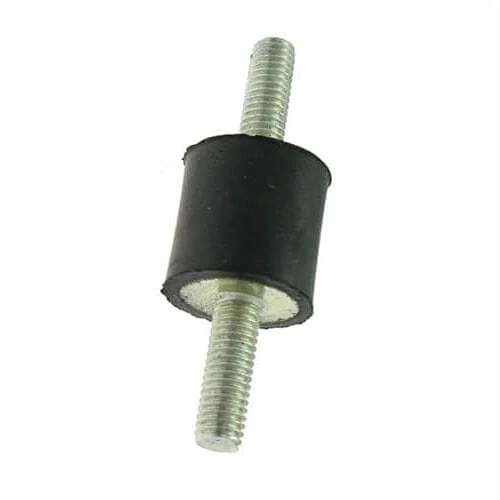

M6 x 18mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 18kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.92 | £2.30 |
| 2 - 249 | £1.91 | £2.29 |
| 250 - 499 | £1.77 | £2.12 |
| 500 - 999 | £1.63 | £1.96 |
| 1000 - 2499 | £1.50 | £1.80 |
| 2500 + | £1.36 | £1.63 |
£2.30 / each
.png)
Product Specification
| Diameter | 25mm |
| Height | 15mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 18kg |
| Deflection | 1.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Male Anti Vibration Mount | 25mm x 15mm Bobbin | 18kg Weight Rating | Zinc Steel & Natural Rubber
Developed for agricultural equipment, this M6 male to male shock absorbing mount supports reliable mounting where a controlled amount of deflection is required.
The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation. The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. Its compact form helps reduce installation time where access around the mounting point is restricted.
Common Applications
- Mounting laboratory instrument feet
- Fixing air handling unit panels
- Securing removable side panels
- Supporting production line attachments
M6 x 18mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 15mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 18kg
- Deflection: 1.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
