Tilting Bolt Down Feet - ADJ205
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £4.58 | £5.50 |
| 25 - 49 | £3.89 | £4.67 |
| 50 - 99 | £2.98 | £3.57 |
| 100 + | £2.29 | £2.75 |
Product Specification
| Thread Size | M10 |
| Stud Length | 125mm |
| Base Diameter | 60mm |
| Base Height | 18mm |
| Style | Standard |
| Bolt Down Hole Size | 6mm |
| Tilt Angle | 20° |
| Weight Rating | 470kg |
| Material | Nylon Base & Zinc Plated Steel Stem |
Frequently Bought Together
Total Price: £0.00

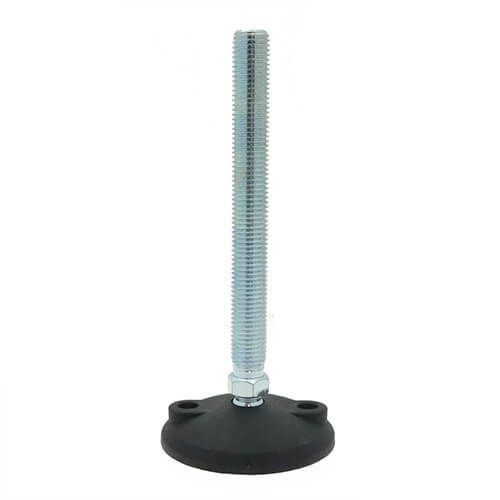

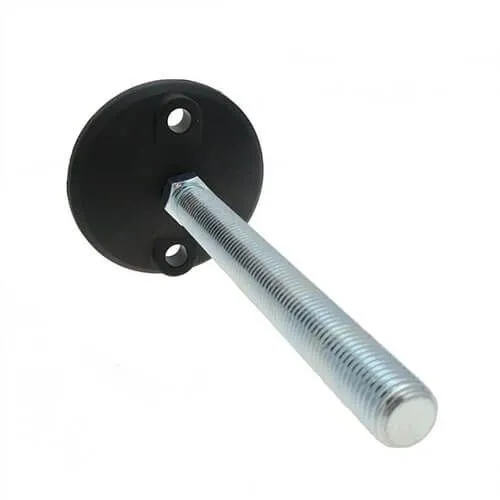

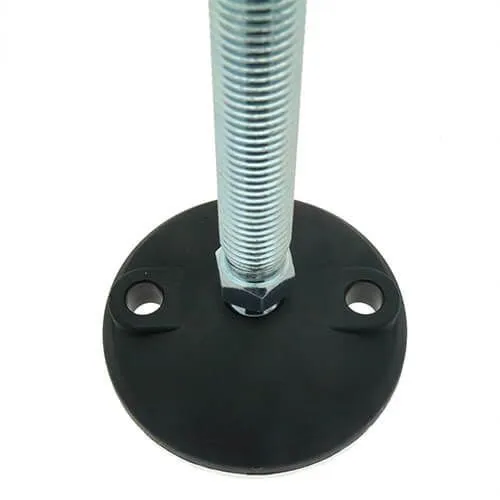

M10 x 125mm Standard Bolt Down Tilting Foot | 60mm Base Diameter | Nylon Base & Zinc Plated Steel Stem
These M10 x 125mm standard Bolt Down Tilting Feet are designed for automation cells that need a load rated foot with mechanical floor retention. The 6mm bolt down hole gives a direct fixing route while the 125mm stud length supports controlled levelling during installation.

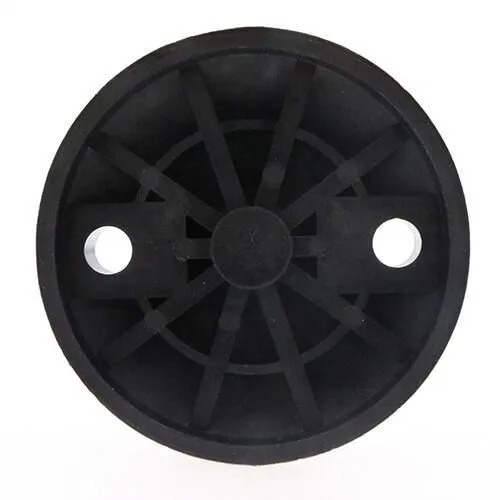

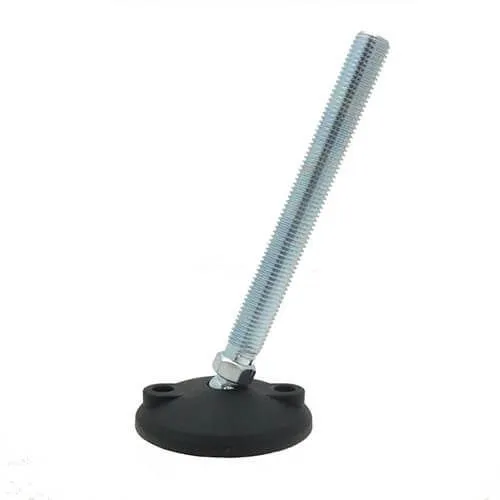

The 60mm base helps distribute weight across the floor contact area. Combined with a 20° tilt angle and 470kg rating, it is a strong choice for robot cell frames, control cabinets and automated handling equipment.
Common Applications
- Automation cell frames
- Robot guarding bases
- Control cabinet stands
- Handling equipment

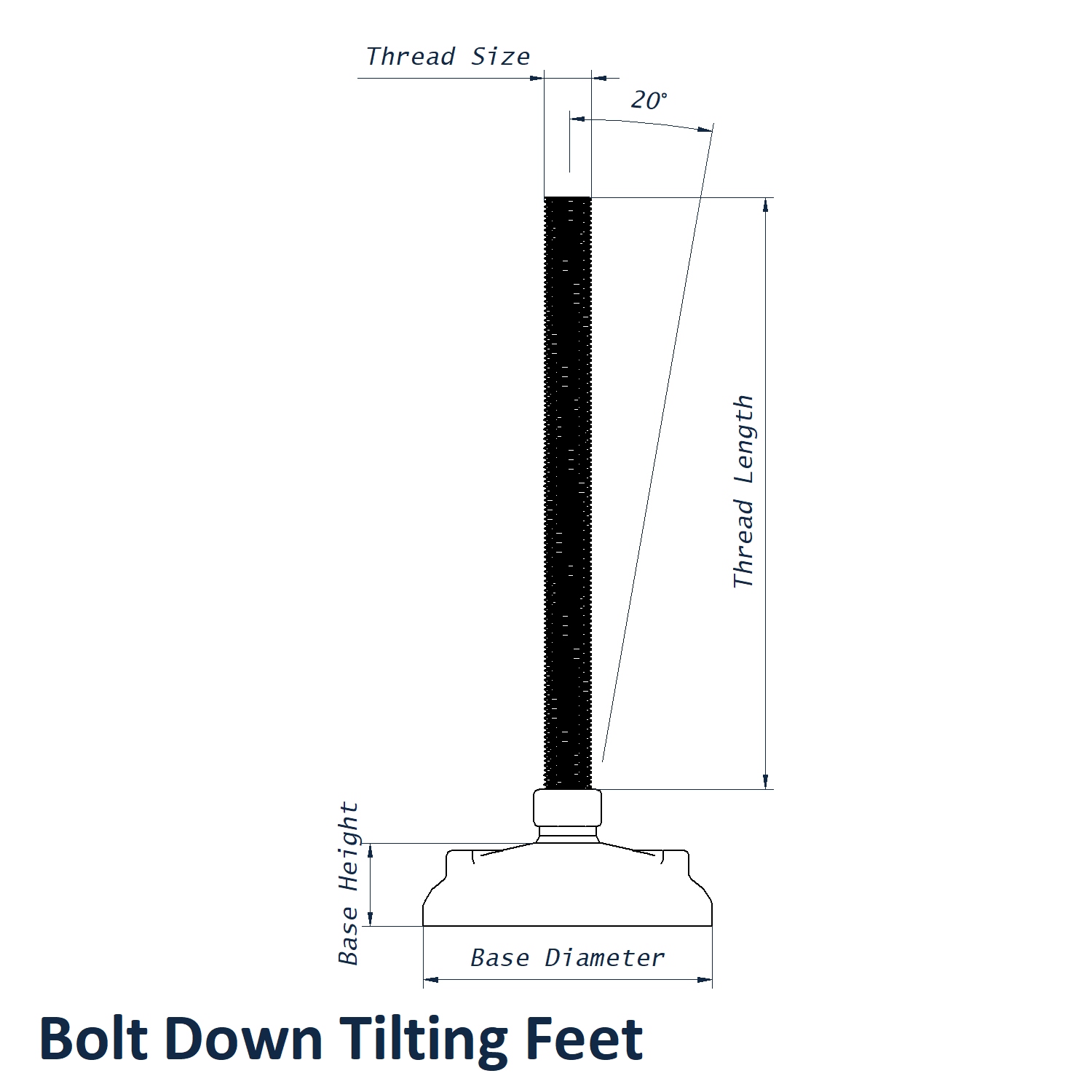

M10 x 125mm Standard Bolt Down Tilting Foot Dimensions
- Base Diameter: 60mm
- Thread Size: M10
- Stud Length: 125mm
- Style: Standard
- Bolt Down Hole Size: 6mm
- Base Height: 18mm
- Tilt Angle: 20°
- Weight Rating: 470kg
- Material: Nylon Base & Zinc Plated Steel Stem
- Colour: Black
Commonly Paired with Bolt Down Tilting Feet - E Nuts for a Secure Fit
Perfect for tilting or articulated adjustable feet where a self-locking fixing helps prevent loosening and increase grip in soft woods. These E Nuts provide a reliable anchor point for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Bolt Down Tilting Feet.
