M12 x 100mm Bolt Down Levelling Foot - 80mm Base (20° Tilt) | 750kg Load
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £5.08 | £6.09 |
| 25 - 49 | £4.89 | £5.87 |
| 50 - 99 | £4.32 | £5.18 |
| 100 - 499 | £4.22 | £5.07 |
| 500 + | £4.15 | £4.98 |
£6.09 / each
.png)
Product Specification
| Thread Size | M12 |
| Thread Length | 100mm |
| Base Diameter | 80mm |
| Base Height | 29mm |
| Weight Rating | 750kg |
| Tilt Angle | 20° |
| Style | Standard |

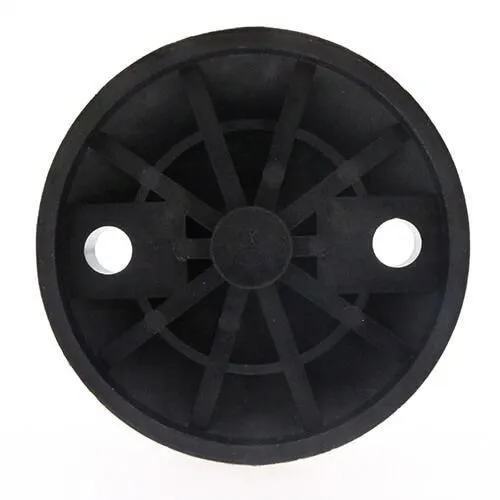

| Bolt Down Hole Size | 9mm |
| Material | Nylon Base / Steel BZP Stem |
Frequently Bought Together
Total Price: £0.00

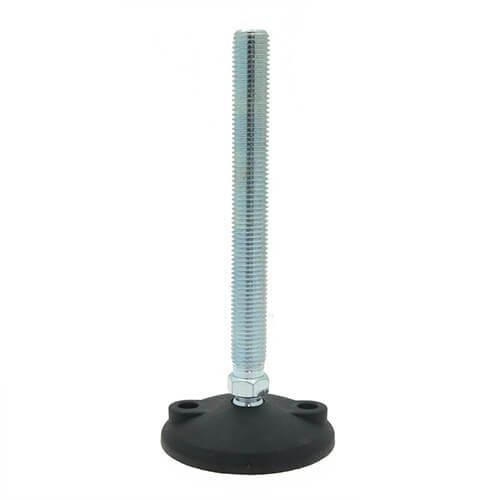

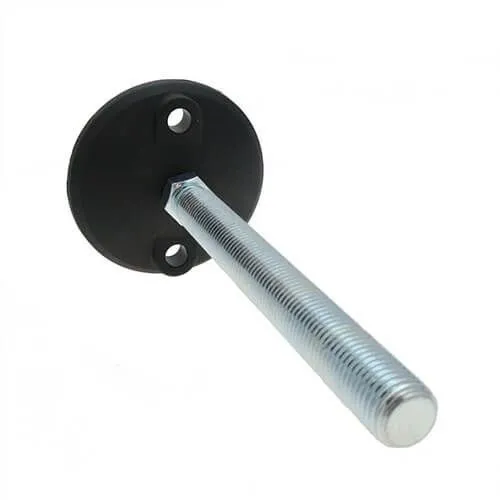

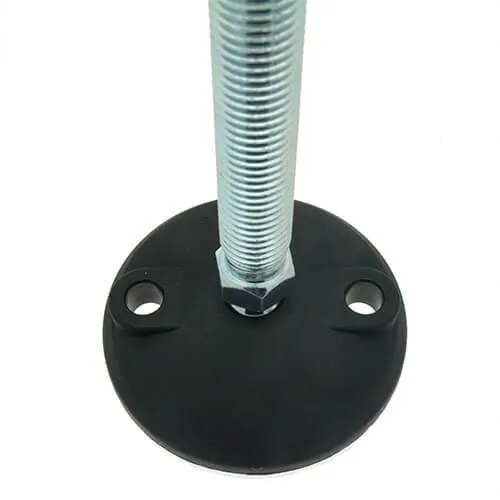

M12 x 100mm Standard Bolt Down Tilting Foot | 80mm Base Diameter | Nylon Base & Zinc Plated Steel Stem
These M12 x 100mm standard Bolt Down Tilting Feet suit fabrication benches where the support has to cope with changing loads and workshop floor variation. The 9mm bolt down hole helps create a restrained fixing once the bench is level.
The 100mm stem length gives useful height adjustment and the 20° tilt angle lets the base settle under the frame. With a 750kg weight rating, it supports fabrication tables, welding benches and assembly fixtures.
Common Applications
- Fabrication benches
- Welding tables
- Assembly fixtures
- Metalworking stations

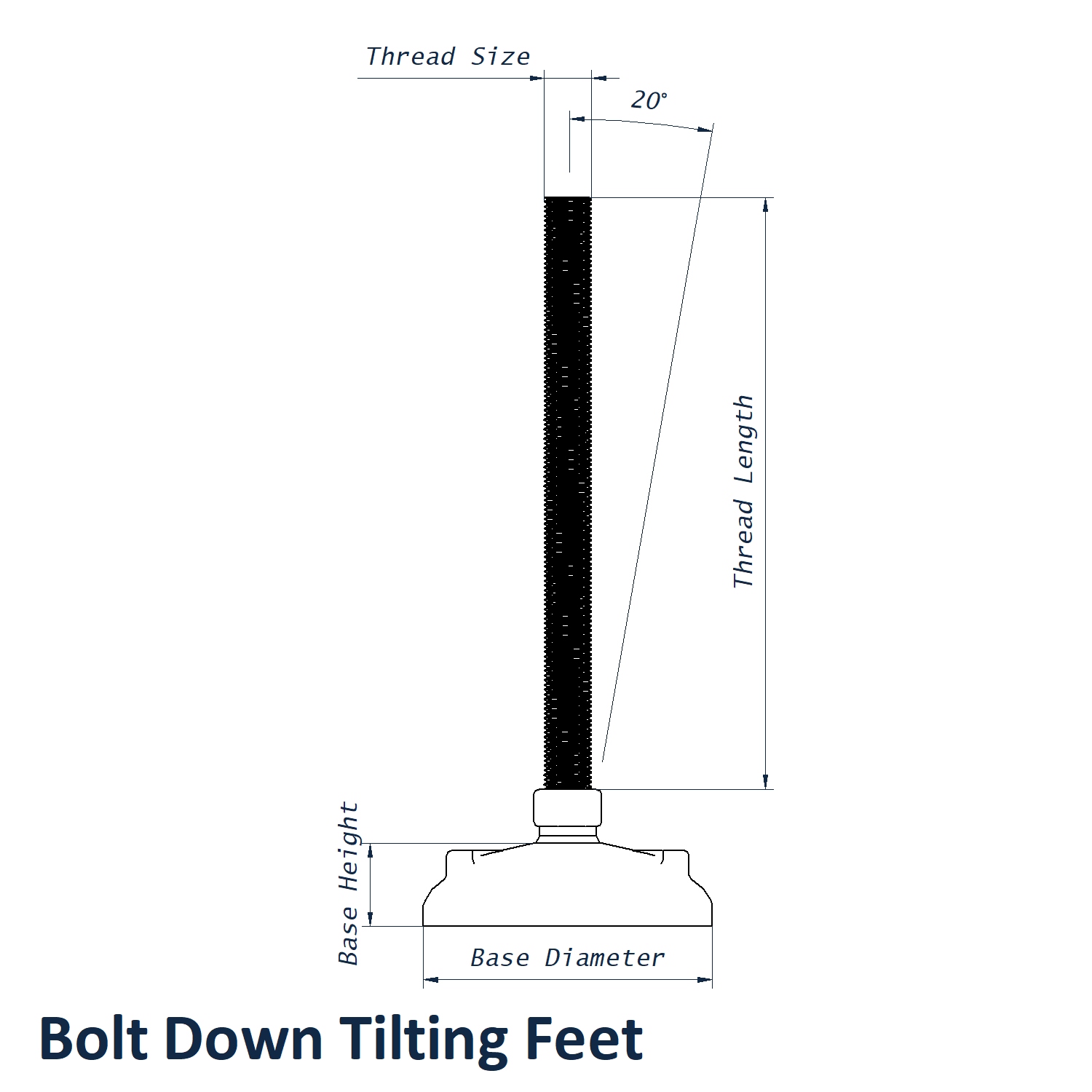

M12 x 100mm Standard Bolt Down Tilting Foot Dimensions
- Base Diameter: 80mm
- Thread Size: M12
- Stud Length: 100mm
- Style: Standard
- Bolt Down Hole Size: 9mm
- Base Height: 18mm
- Tilt Angle: 20°
- Weight Rating: 750kg
- Material: Nylon Base & Zinc Plated Steel Stem
- Colour: Black
Commonly Paired with Bolt Down Tilting Feet - E Nuts for a Secure Fit
Perfect for tilting or articulated adjustable feet where a self-locking fixing helps prevent loosening and increase grip in soft woods. These E Nuts provide a reliable anchor point for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Bolt Down Tilting Feet.
