Tilting Bolt Down Feet - ADJ211
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £5.79 | £6.95 |
| 25 - 49 | £4.92 | £5.91 |
| 50 - 99 | £3.77 | £4.52 |
| 100 + | £2.89 | £3.47 |
Product Specification
| Thread Size | M12 |
| Stud Length | 150mm |
| Base Diameter | 80mm |
| Base Height | 18mm |
| Style | Standard |
| Bolt Down Hole Size | 9mm |
| Tilt Angle | 20° |
| Weight Rating | 750kg |
| Material | Nylon Base & Zinc Plated Steel Stem |
Frequently Bought Together
Total Price: £0.00

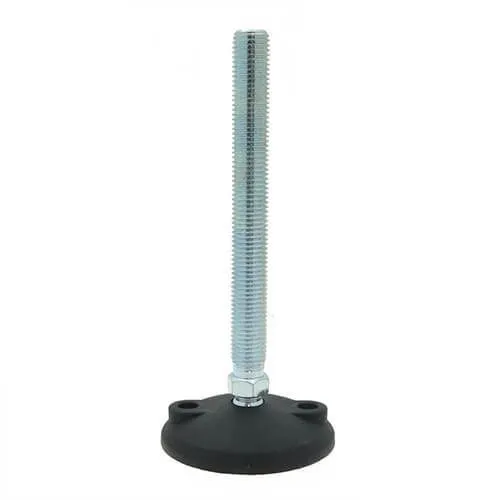

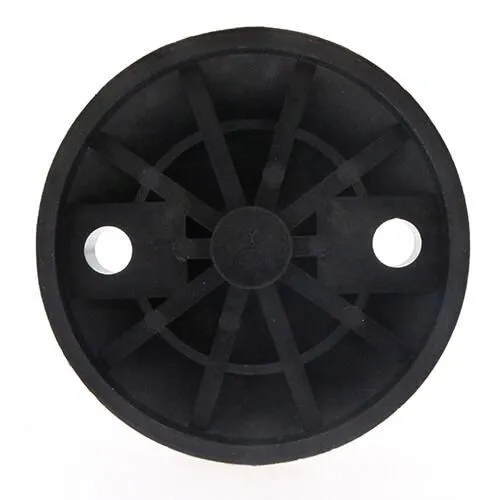

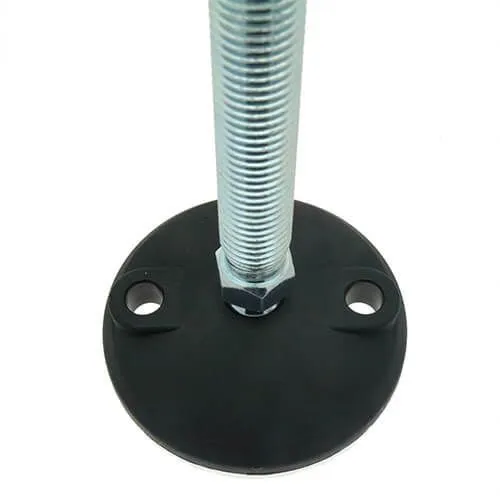

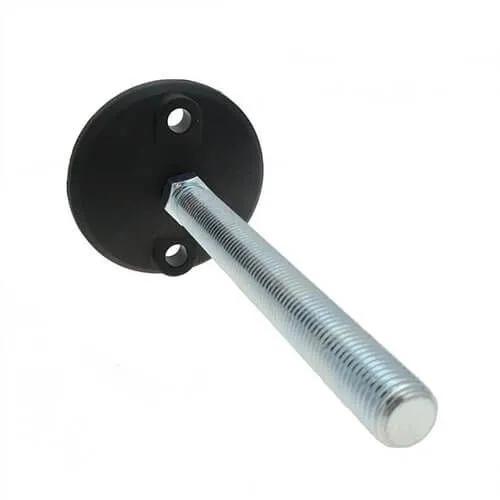

M12 x 150mm Standard Bolt Down Tilting Foot | 80mm Base Diameter | Nylon Base & Zinc Plated Steel Stem
These M12 x 150mm standard Bolt Down Tilting Feet are made for conveyor systems that need fine adjustment before the line is anchored. The 20° tilt angle assists with uneven floor contact while the 9mm bolt down hole supports secure fixing after set-up.
A 750kg rating makes the foot suitable for conveyor legs and transfer tables. The Nylon Base & Zinc Plated Steel Stem construction provides reliable support for production areas where equipment may be repositioned, levelled and fixed during maintenance.
Common Applications
- Conveyor legs
- Roller tables
- Transfer stations
- Line side support frames

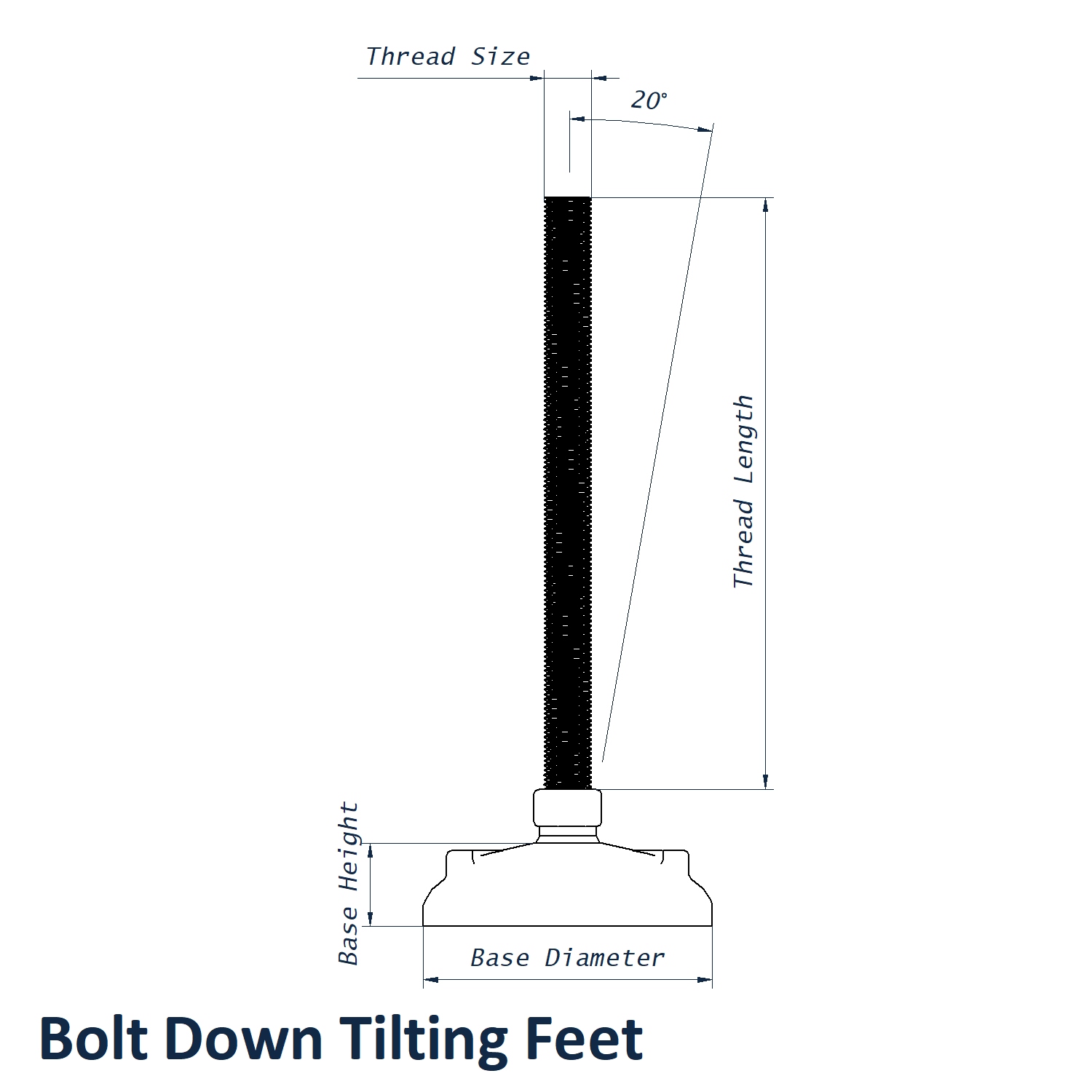

M12 x 150mm Standard Bolt Down Tilting Foot Dimensions
- Base Diameter: 80mm
- Thread Size: M12
- Stud Length: 150mm
- Style: Standard
- Bolt Down Hole Size: 9mm
- Base Height: 18mm
- Tilt Angle: 20°
- Weight Rating: 750kg
- Material: Nylon Base & Zinc Plated Steel Stem
- Colour: Black
Commonly Paired with Bolt Down Tilting Feet - E Nuts for a Secure Fit
Perfect for tilting or articulated adjustable feet where a self-locking fixing helps prevent loosening and increase grip in soft woods. These E Nuts provide a reliable anchor point for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Bolt Down Tilting Feet.
