M16 x 150mm Bolt Down Levelling Foot - 80mm Base (20° Tilt) | 900kg Load
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £7.88 | £9.45 |
| 25 - 49 | £6.69 | £8.03 |
| 50 - 99 | £5.12 | £6.14 |
| 100 + | £3.94 | £4.73 |
£9.45 / each
.png)
Product Specification
| Thread Size | M16 |
| Thread Length | 150mm |
| Base Diameter | 80mm |
| Base Height | 29mm |
| Weight Rating | 900kg |
| Tilt Angle | 20° |
| Style | Standard |
| Bolt Down Hole Size | 9mm |
| Material | Nylon Base / Steel BZP Stem |
Frequently Bought Together
Total Price: £0.00

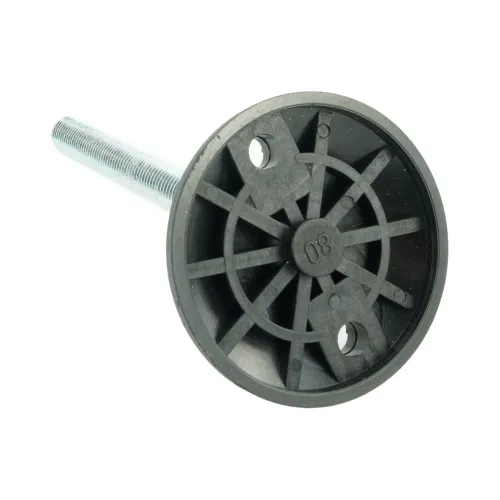

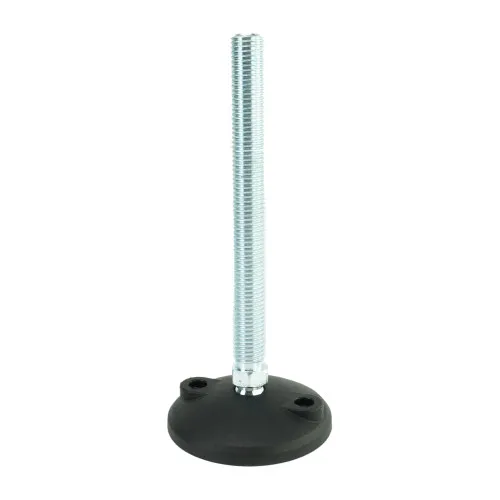

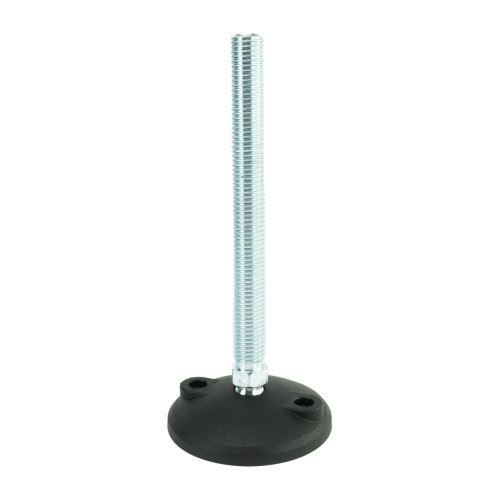

M16 x 150mm Standard Bolt Down Tilting Foot | 80mm Base Diameter | Nylon Base & Zinc Plated Steel Stem
These M16 x 150mm standard Bolt Down Tilting Feet provide a strong adjustable support for agricultural equipment and workshop machinery. The 80mm base diameter helps spread load and the 9mm bolt down hole allows the foot to be secured to the floor or mounting surface.
With a 900kg weight rating and 20° tilt angle, this component suits equipment that needs reliable set-up on imperfect surfaces. The Nylon Base & Zinc Plated Steel Stem construction supports regular use in maintenance areas and machinery bays.
Common Applications
- Agricultural machinery stands
- Maintenance benches
- Equipment frames
- Workshop storage systems

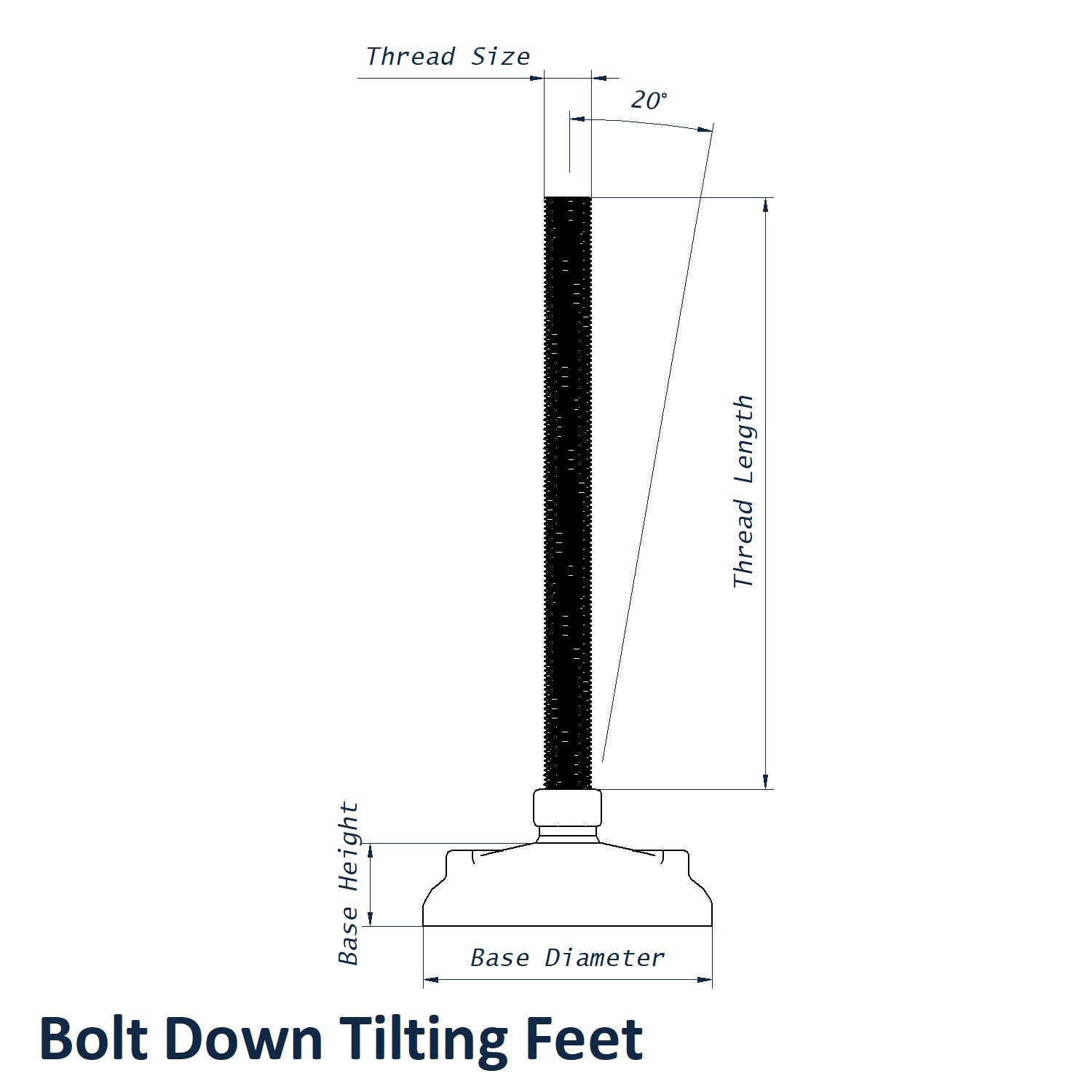

M16 x 150mm Standard Bolt Down Tilting Foot Dimensions
- Base Diameter: 80mm
- Thread Size: M16
- Stud Length: 150mm
- Style: Standard
- Bolt Down Hole Size: 9mm
- Base Height: 18mm
- Tilt Angle: 20°
- Weight Rating: 900kg
- Material: Nylon Base & Zinc Plated Steel Stem
- Colour: Black
Commonly Paired with Bolt Down Tilting Feet - E Nuts for a Secure Fit
Perfect for tilting or articulated adjustable feet where a self-locking fixing helps prevent loosening and increase grip in soft woods. These E Nuts provide a reliable anchor point for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Bolt Down Tilting Feet.
