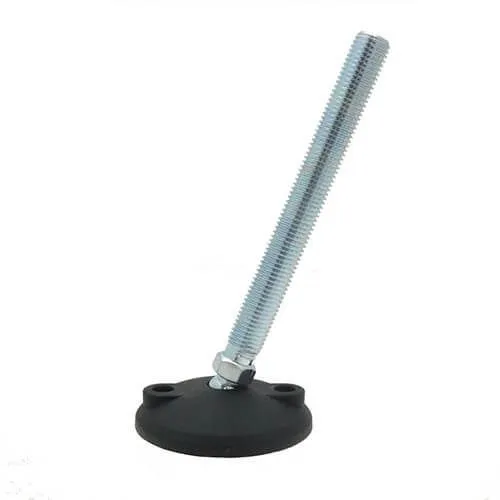

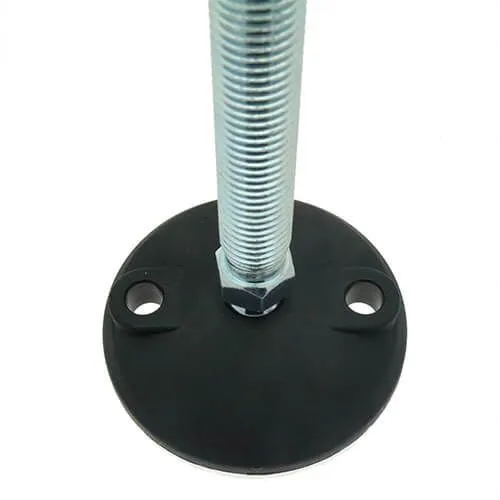

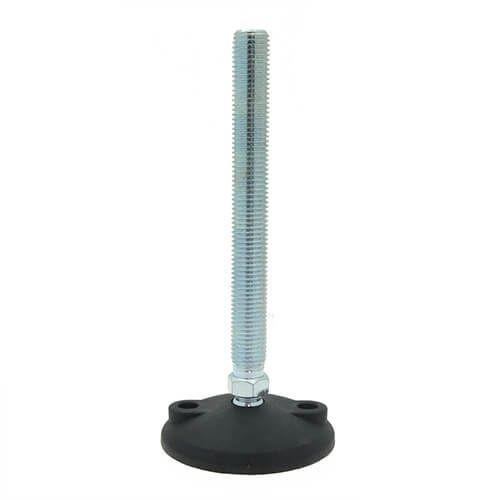

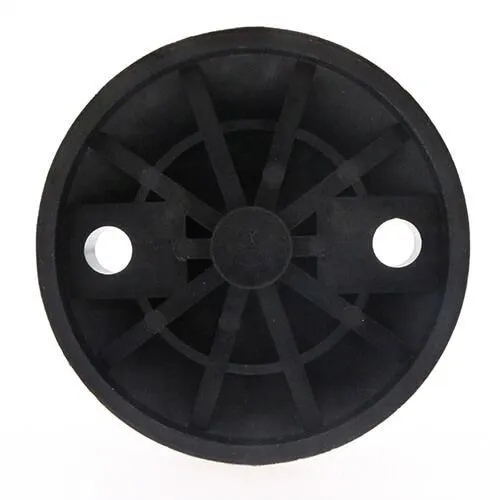

M16 x 100mm Bolt Down Levelling Foot - 100mm Base (20° Tilt) | 900kg Load
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £8.68 | £10.41 |
| 25 - 49 | £7.38 | £8.85 |
| 50 - 99 | £5.63 | £6.76 |
| 100 + | £4.33 | £5.20 |
£10.41 / each
.png)
Product Specification
| Thread Size | M16 |
| Thread Length | 100mm |
| Base Diameter | 100mm |
| Base Height | 29mm |
| Weight Rating | 900kg |
| Tilt Angle | 20° |
| Style | Standard |
| Bolt Down Hole Size | 9mm |
| Material | Nylon Base / Steel BZP Stem |
Frequently Bought Together
Total Price: £0.00
M16 x 100mm Standard Bolt Down Tilting Foot | 100mm Base Diameter | Nylon Base & Zinc Plated Steel Stem
These M16 x 100mm standard Bolt Down Tilting Feet are useful where equipment is positioned into a fixed bay and then secured. The 100mm stud length gives height adjustment and the 100mm base gives a stable footprint before bolts are installed through the mounting hole.
The 900kg load rating and 20° tilt angle make the foot a dependable choice for adjustable support on uneven floors. It is especially useful when frames need to be levelled during commissioning and then held in place.
Common Applications
- Fixed equipment bays
- Commissioning frames
- Service platforms
- Adjustable machinery bases

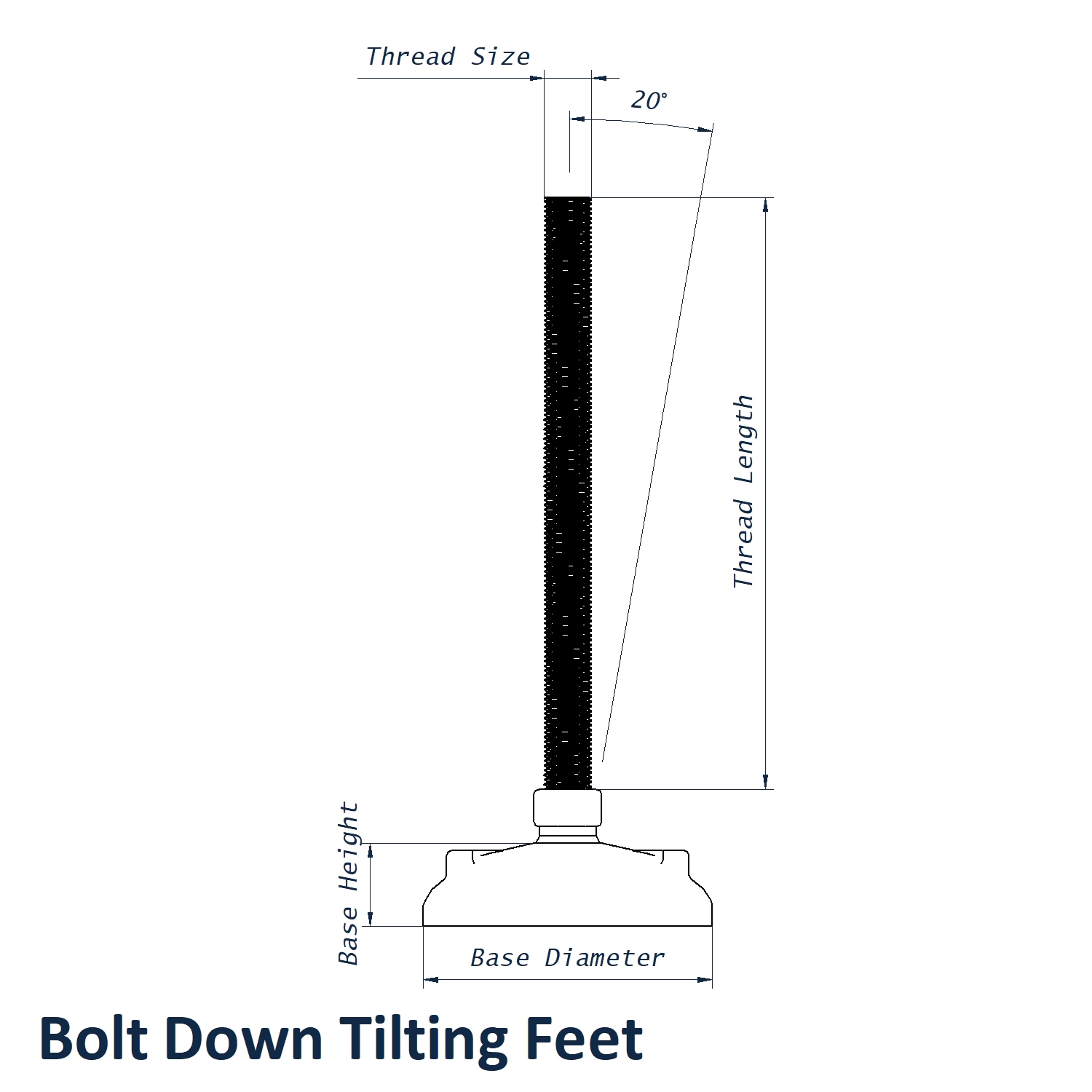

M16 x 100mm Standard Bolt Down Tilting Foot Dimensions
- Base Diameter: 100mm
- Thread Size: M16
- Stud Length: 100mm
- Style: Standard
- Bolt Down Hole Size: 9mm
- Base Height: 18mm
- Tilt Angle: 20°
- Weight Rating: 900kg
- Material: Nylon Base & Zinc Plated Steel Stem
- Colour: Black
Commonly Paired with Bolt Down Tilting Feet - E Nuts for a Secure Fit
Perfect for tilting or articulated adjustable feet where a self-locking fixing helps prevent loosening and increase grip in soft woods. These E Nuts provide a reliable anchor point for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Bolt Down Tilting Feet.
