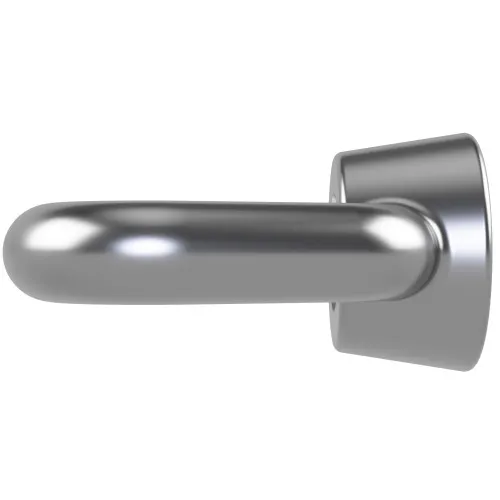

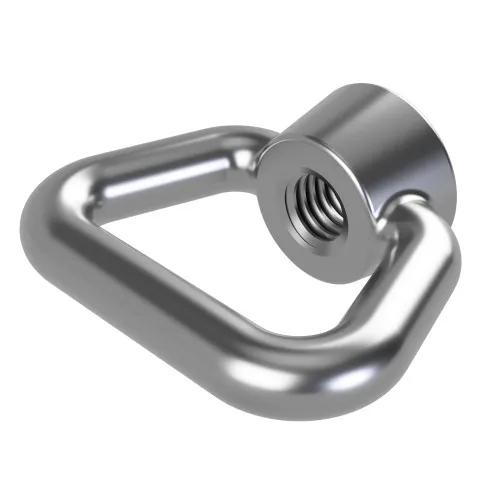

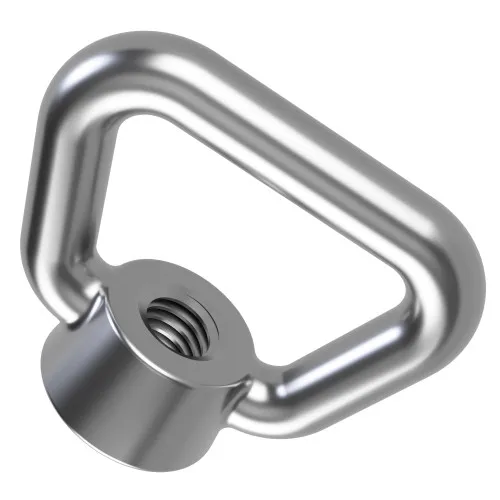

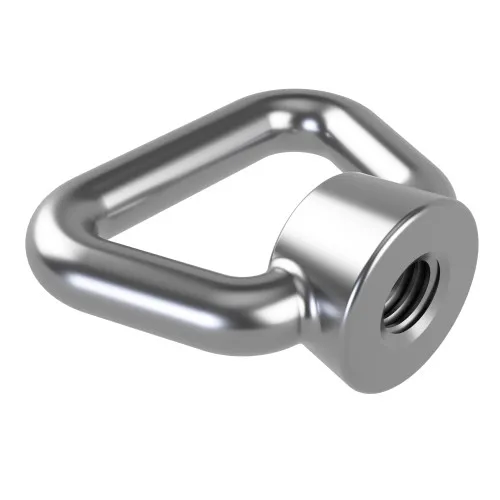

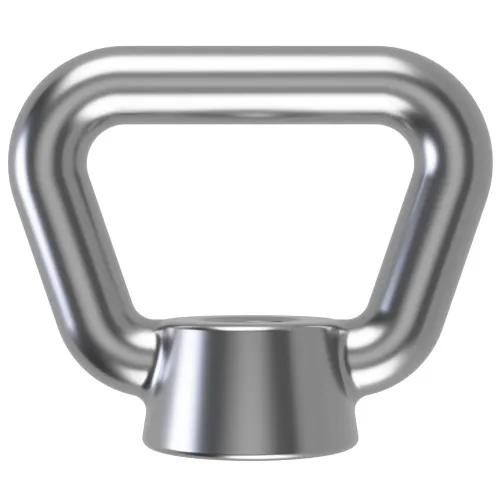

M10 Bow Nut A4 Stainless Steel DIN 80704
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £15.28 | £18.34 |
| 25 - 49 | £12.73 | £15.28 |
| 50 - 99 | £10.92 | £13.10 |
| 100 + | £9.55 | £11.46 |
£18.34 / each
.png)

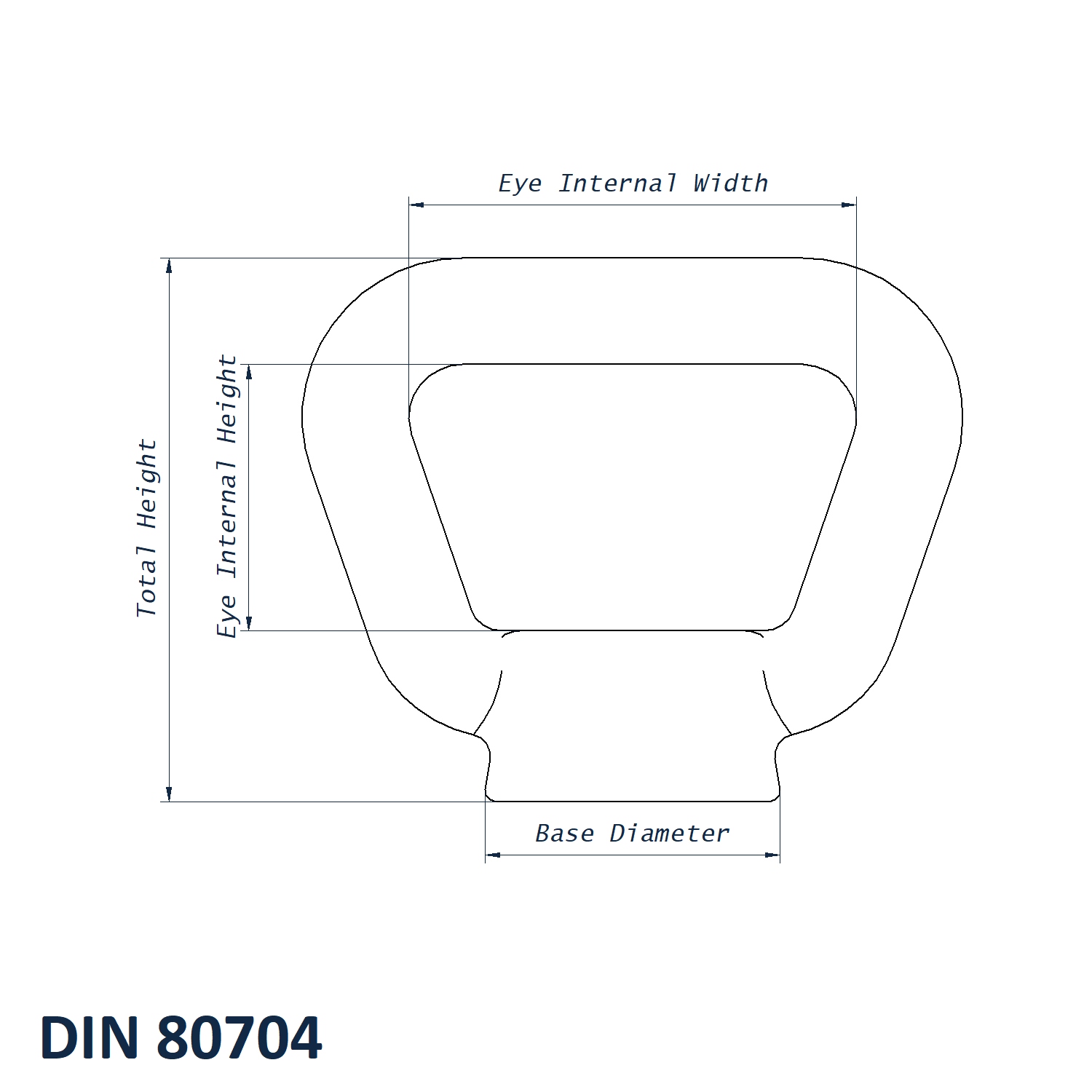

Product Specification
| Thread Size | M10 |
| Base Diameter | 23mm |
| Total Height | 45mm |
| Eye Internal Height | 25mm |
| Eye Internal Width | 42mm |
| Material | A4 Stainless Steel |
| Pitch | 1.50mm |
| Standard | DIN 80704 |
Frequently Bought Together
Total Price: £0.00
M10 Bow Nut A4 Stainless Steel DIN 80704 - BN80704-M10-A4
The M10 Bow Nut A4 Stainless Steel DIN 80704 (BN80704-M10-A4) is a robust hand-operated fastening nut featuring a large bow-shaped eye that provides a convenient grip for tightening and loosening without requiring a conventional spanner. Manufactured from A4 Stainless Steel, it offers excellent corrosion resistance and is well suited to demanding indoor, outdoor and marine environments.
What are Bow Nuts?
Bow Nuts are internally threaded fastening components with an enlarged loop-style head. The bow profile makes the nut easier to grip by hand and is useful in applications where components need to be secured, adjusted or removed regularly. This product is manufactured to DIN 80704.
Technical Specifications:
- Thread Size: M10
- Total Height: 45mm
- Eye Internal Width: 42mm
- Eye Internal Height: 25mm
- Base Diameter: 23mm
- Pitch: 1.50mm
- Standard: DIN 80704
- Material: A4 Stainless Steel
Applications:
Suitable for assemblies requiring frequent manual adjustment or removal, including access panels, covers, guards, fixtures, marine fittings and general engineering applications where a secure threaded fastener with an easy-to-grip head is beneficial.
Benefits:
- Bow-shaped head provides a large, easy-to-grip surface for manual operation.
- A4 stainless steel offers strong resistance to corrosion and weathering.
- DIN 80704 dimensions support consistent fit and interchangeability.
- Suitable for applications that require repeated tightening, adjustment or removal.
