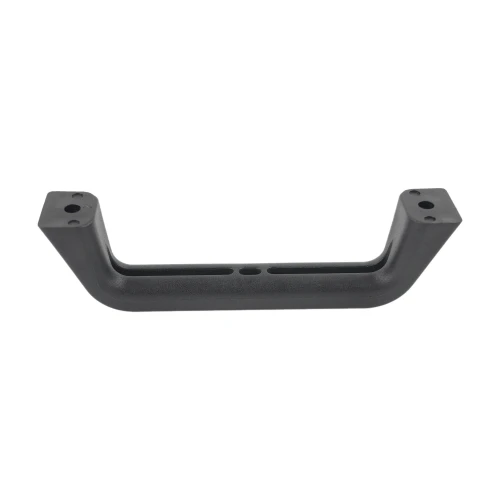

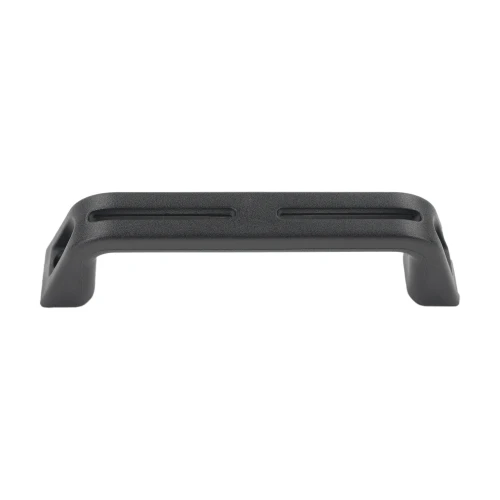

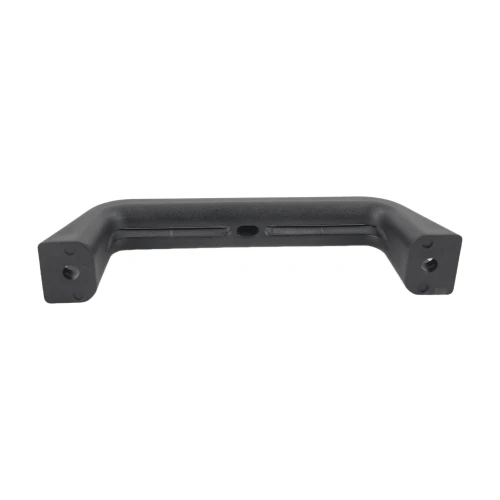

Bridge Handle with Hexagonal Counterbores - 145mm Concealed Fastener

Bridge Handles with Hexagonal Counterbores (Concealed Fastener) - 145mm Bolt to Bolt, 168mm Length – Black Reinforced Nylon | Vital Parts – HAND214

Our Bridge Handles with Hexagonal Counterbores are versatile and suitable for a wide range of applications including motorhomes, marine vessels, cabinets, drawers and doors in both domestic and industrial environments. Designed for performance and comfort, these handles offer a professional matt black finish that provides an excellent grip and a clean appearance.

What are Bridge Handles with Hexagonal Counterbores?

Theses cabinet handles with hexagonal counterbores are specially designed handles featuring hexagonal recesses that allow fixing from above. They can be secured with a hex bolt or hex nut from the opposing side, making them ideal for installations where access is restricted or limited.

Key Features:

• These black cabinet handles are made from 15% glass filled Nylon PA6
• UL 94 HB flammability rating for reliable safety performance
• Improved grip due to textured matt surface, ideal for marine environments
• Can be fastened from above using hex bolts or nuts
• Available in two fastening styles for versatile use

Available Variants:

• Concealed Fastener Cap Variant – Includes removable black caps to conceal fastener heads
• Exposed Fastener Variant – Exposed countersunk fastener head for visible mounting
• This cabinet handle style is Concealed Fastener

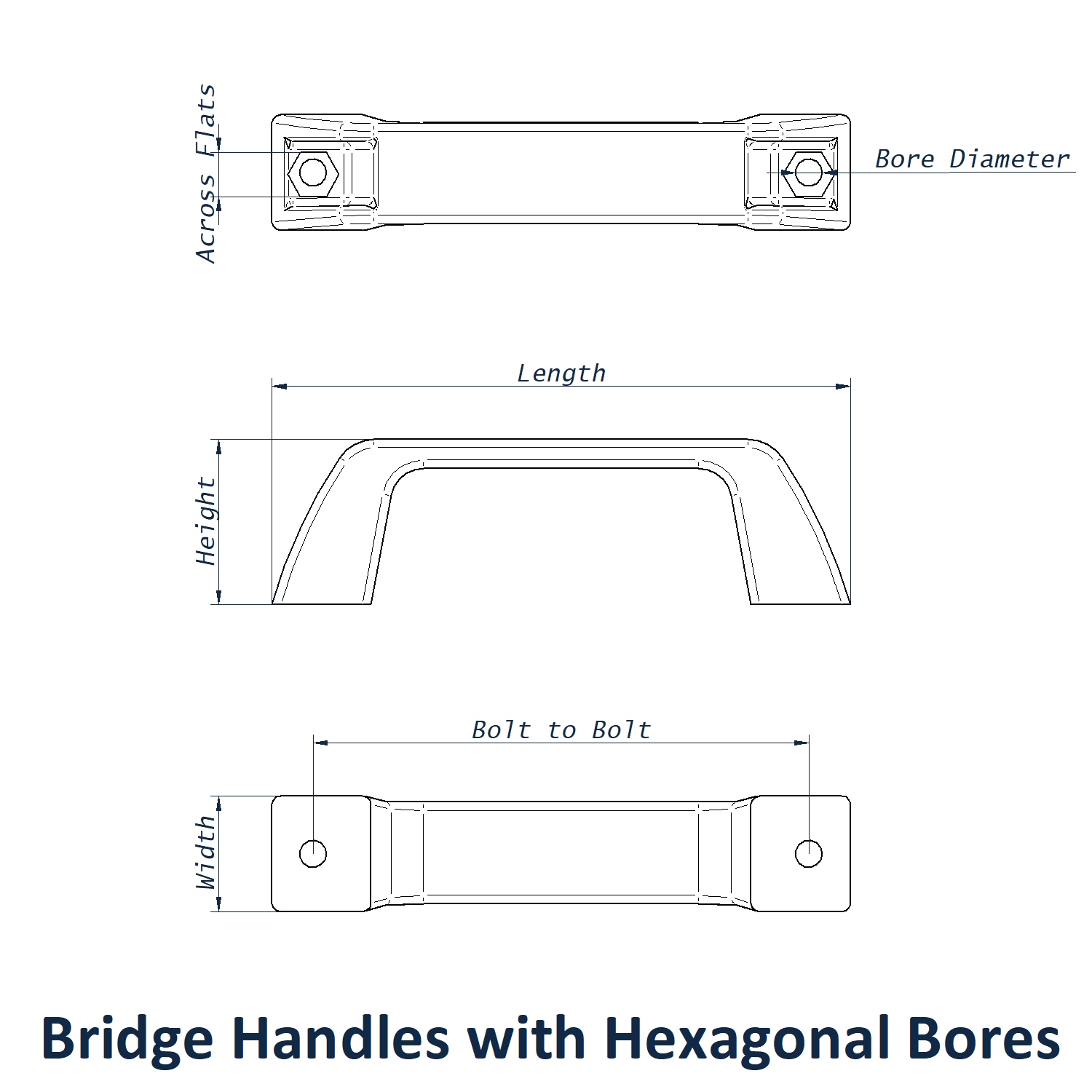

Technical Specifications

• Length: 168mm
• Width: 28mm
• Height: 44mm
• Bolt to Bolt: 145mm
• Thread / Bore Size: 6.5mm
• Across Flats: 10.5mm
• Material: Reinforced Nylon PA6 (15% glass filled)
• Finish: Matt black
• Fixing Type: From above with Hex Bolt or Hex Nut
• Flammability: UL 94 HB rated
• Compliant with RoHS, REACH, Conflict Materials and California Prop 65

Benefits:

• Lightweight yet highly durable construction
• Corrosion and impact resistant
• Enhanced grip for improved handling in demanding environments
• Ideal for marine, industrial and domestic cabinet applications

Why Buy from Vital Parts?

At Vital Parts we specialise in high-quality industrial handles manufactured to meet the demands of UK industries. Our Bridge Handles with Hexagonal Counterbores combine style and function, providing reliable performance and a professional finish for any project.

• Fast UK delivery on all stocked handle types
• Compliant and durable materials for industrial and marine use
• Expert support to help find the best handle for your application

If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
