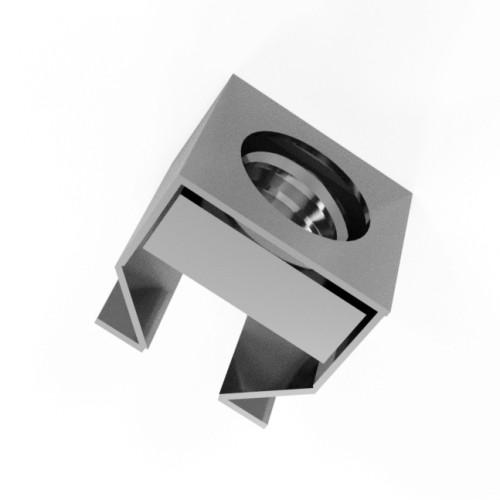

M10 Cage Nut (Clip Nut) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.67 | £0.80 |
| 100 - 499 | £0.65 | £0.78 |
| 500 - 999 | £0.64 | £0.77 |
| 1000 + | £0.62 | £0.75 |
Product Specification
| Thread Size | M10 |
| Thread Pitch | 1.50mm |
| Material | A2 Stainless Steel |
| Length | 16.4mm |
| Width | 15.5mm |
| Height | 12.0mm |
| Panel Thickness | 1.8-3.2mm |
Frequently Bought Together
Total Price: £0.00
M10 x 16.4mm Steel Cage Nut | A2 Stainless Steel
Engineered for stronger rack and panel assemblies, this M10 stainless steel cage nut combines a 1.50mm metric thread with a 15.5mm wide spring cage for clip-in installation. It is a practical choice where a removable threaded fixing is needed in sheet metal, equipment frames or square punched mounting rails.
The A2 stainless steel construction gives this steel cage nut excellent corrosion resistance for plant rooms, industrial cabinets and exposed service environments. Its floating nut design helps compensate for slight hole misalignment, making it easier to fasten covers, brackets and access panels without relying on tapped sheet metal.
What Are M10 Cage Nuts?
Steel cage nuts are captive fasteners made from a threaded nut held within a spring cage. Once compressed and inserted into a square hole, the cage grips the panel while the nut remains available for a matching machine screw or bolt. This makes them useful where threads may need to be replaced, adjusted or serviced after installation.
Common Applications
- Mounting heavier equipment into 19 inch rack cabinets and server frames
- Adding replaceable M10 threads to fabricated sheet metal panels
- Securing industrial control cabinet doors, side panels and service covers
- Supporting commercial equipment builds where a rotation-resistant fixing is required
- Providing a corrosion resistant fastening point in maintenance and repair work

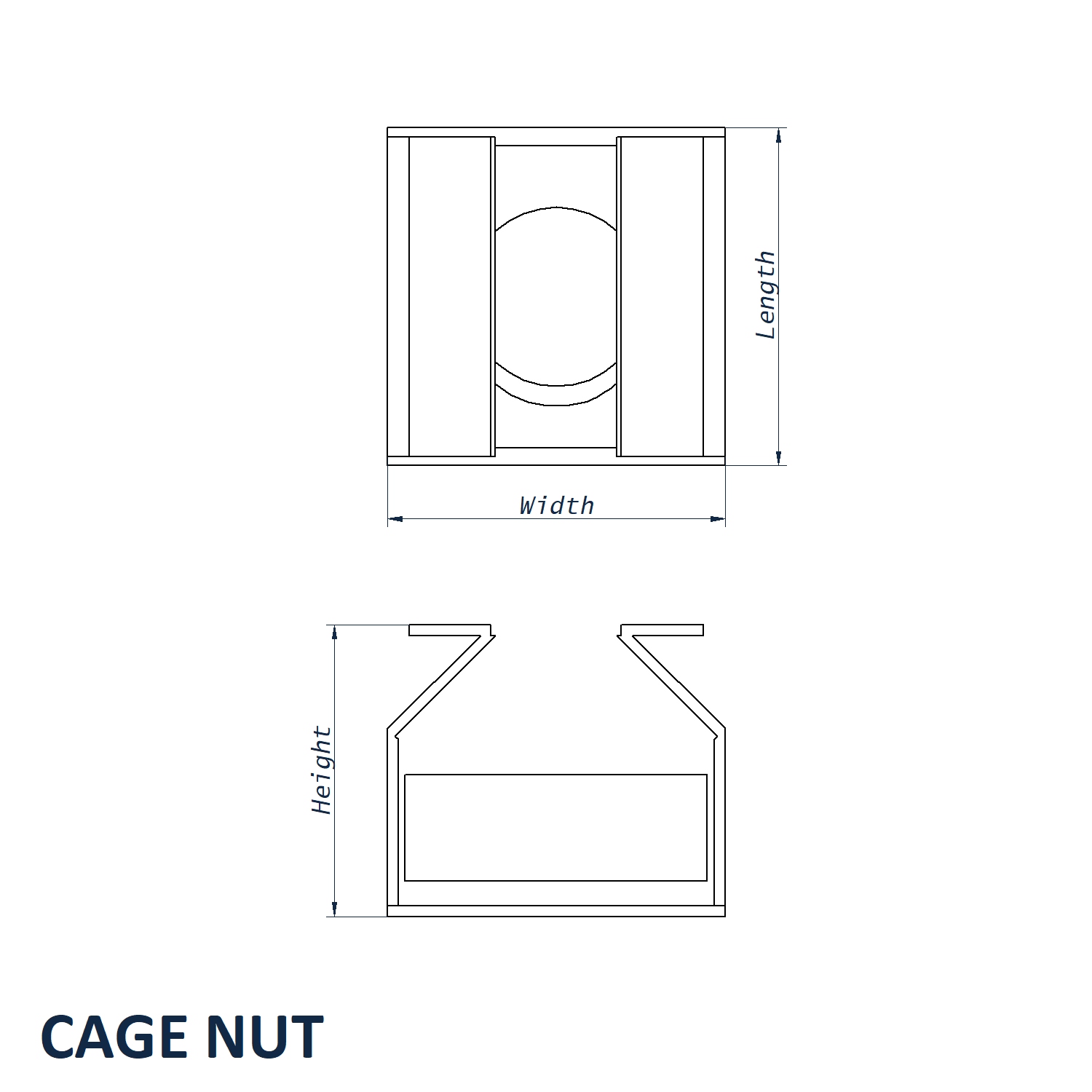

M10 x 16.4mm Steel Cage Nut Dimensions
- Thread Size: M10
- Thread Pitch: 1.50mm
- Length: 16.4mm
- Width: 15.5mm
- Height: 12.0mm
- Panel Thickness: 1.8-3.2mm
- Material: A2 Stainless Steel
Cage Nut Fixing Guidance
This M10 cage nut is suited to panel thicknesses from 1.8-3.2mm, giving a clip-in captive thread for square hole fixing. The spring cage helps hold the nut in position while still allowing a small amount of movement for alignment during assembly.
View our full Cage Nuts range.
Product Support and Trade Orders
For help checking thread size, panel thickness compatibility or repeat order quantities, the Vital Parts team can offer practical product support. Call 01233 713581 for advice on cage nut sizing, samples where available and trade supply options.
