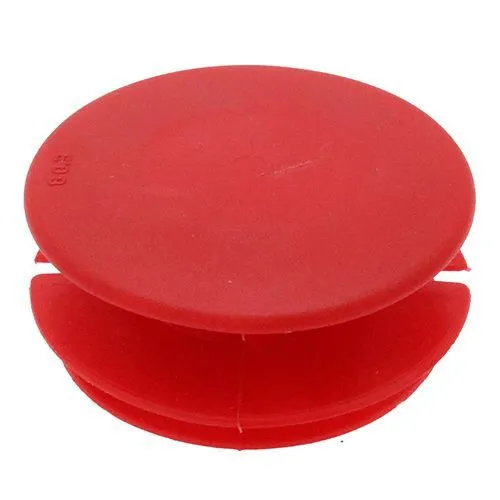

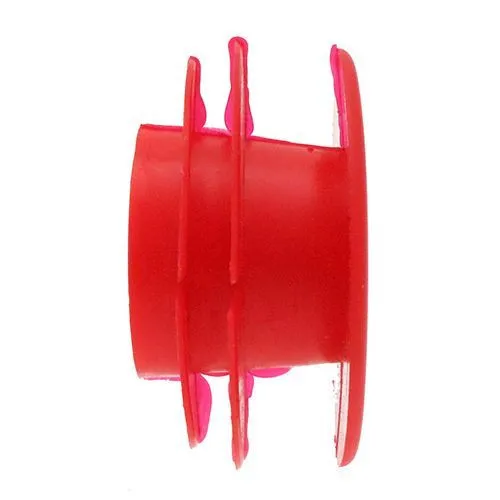

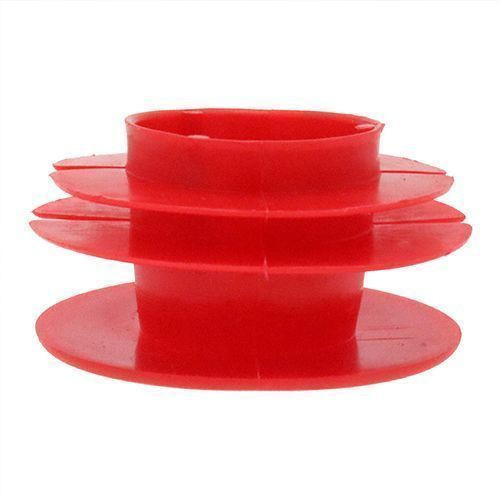

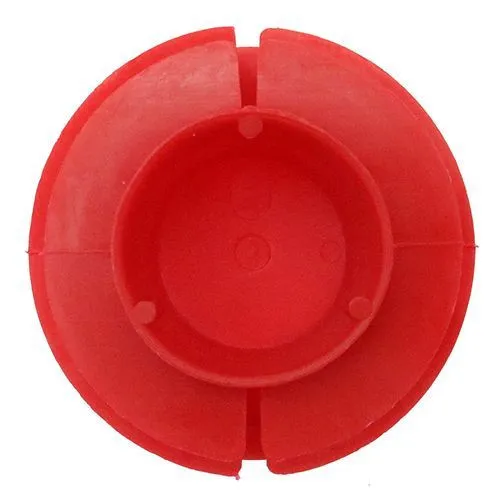

12-22mm Ribbed Pipe Plug (20mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.57 | £0.68 |
| 2 - 10 | £0.57 | £0.68 |
| 11 - 50 | £0.53 | £0.64 |
| 51 - 100 | £0.49 | £0.59 |
| 101 - 500 | £0.47 | £0.56 |
| 501 + | £0.42 | £0.51 |
£0.68 / each
.png)
Product Specification
| To Fit Internal Diameter | 12-22mm |
| Max Wall Thickness | 4.0mm |
| Head Diameter | 19.7 |
| Pipe Outside Diameter | 20.0mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00
20.0mm Ribbed Pipe End Plug (12-22mm Internal Fit) | Red LDPE
Commonly used on 20.0mm pipework, this red internal pipe end plug provides a flexible 12-22mm bore fit for walls up to 4.0mm thick. Its LDPE body is lightweight yet resilient enough for routine manufacturing, storage and distribution where exposed tube interiors need dependable temporary protection.
What Are Ribbed Pipe End Plugs?
Each rib on the shank compresses separately as the plug is pushed into the pipe. This helps the product adapt across the published internal diameter range and reduces unwanted slack during ordinary handling. The 19.7 head diameter rests at the pipe face to prevent excessive insertion.
Common Applications
- Pneumatic Equipment: Covers open pipe ends before air-system components are connected.
- Display and Signage Frames: Protects suitable tubular sections during fabrication and delivery.
- Light Construction Components: Keeps internal surfaces cleaner while pipework is stored on site.
- Repair and Refurbishment: Temporarily closes disconnected tube sections during planned work.

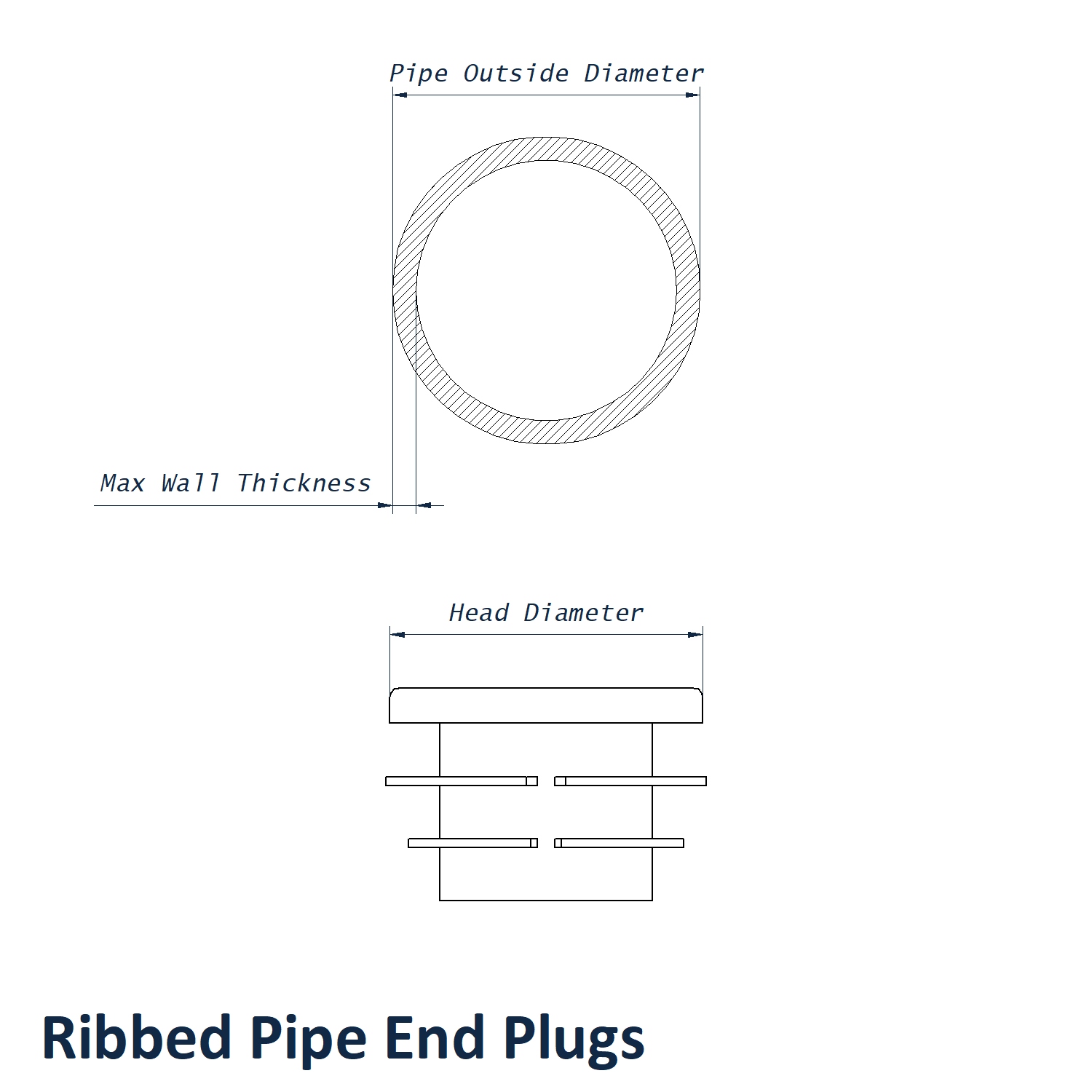

20.0mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 20.0mm
- Max Wall Thickness: 4.0mm
- To Fit Internal Diameter: 12-22mm
- Head Diameter: 19.7
- Material: Red LDPE
Key Benefits
- Designed for a 20.0mm pipe outside diameter
- Flexible fit across 12-22mm internal diameters
- 19.7 head diameter creates a visible fitting stop
- No specialist installation equipment is required
Alternative sizes are listed within the Vital Parts Ribbed Pipe End Plugs range. For product selection, sample enquiries or ongoing supply requirements, call 01233 713 581.
