M5 x 20mm Cap Head Captive Screw (H4) (~DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.27 | £3.93 |
| 50 - 99 | £2.91 | £3.49 |
| 100 - 249 | £2.62 | £3.14 |
| 250 - 499 | £2.38 | £2.86 |
| 500 - 999 | £2.18 | £2.62 |
| 1000 + | £1.88 | £2.25 |
£3.93 / each
.png)
Product Specification
| Thread Size | M5 |
| Pitch | 0.80mm |
| Length | 20mm |
| Captive Diameter | 3.8mm |
| Threaded Length | 10.0mm |
| Drive | H4 |
| Head Diameter | 8.5mm |
| Head Height | 5.0mm |
| Material | A2 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00

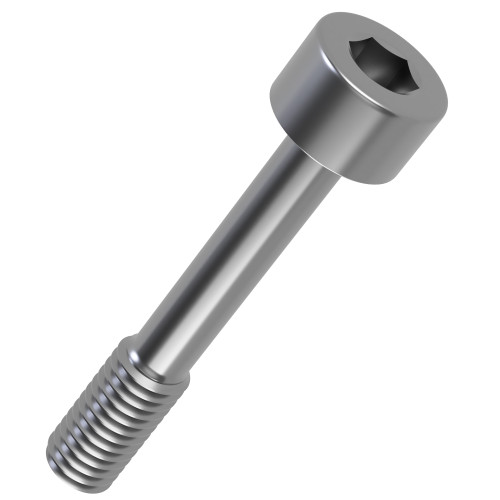

M5 x 20mm Captive Socket Cap Head Screw | Similar to DIN 912 | A2 Stainless Steel
Providing a retained fixing for automation systems, machine covers and removable guards, this M5 x 20mm retained socket cap screw combines a hex socket cap head with a purpose-designed captive diameter. The format helps keep the screw with the assembly during inspection, adjustment or maintenance when used with a compatible retention method. A2 Stainless Steel provides good corrosion resistance for general engineering, machinery, equipment and indoor or suitably protected external applications.
What Are Captive Socket Cap Head Screws?
Captive Cap Screws are used where a conventional fully removable screw could create a loose-part risk during maintenance. Their reduced captive diameter allows a suitable retention feature to hold the screw to the panel while the threaded end engages and disengages from the mating component.
Common Applications
- Industrial Enclosures: Provides a retained fastening point for covers and doors on suitable equipment housings.
- Instrumentation: Keeps small fastening hardware attached to precision panels, test equipment and technical housings.
- Automation Equipment: Supports repeat-access panels on machinery, control systems and production equipment.
- Transport Equipment: Provides retained fixings for suitable removable covers and inspection panels.

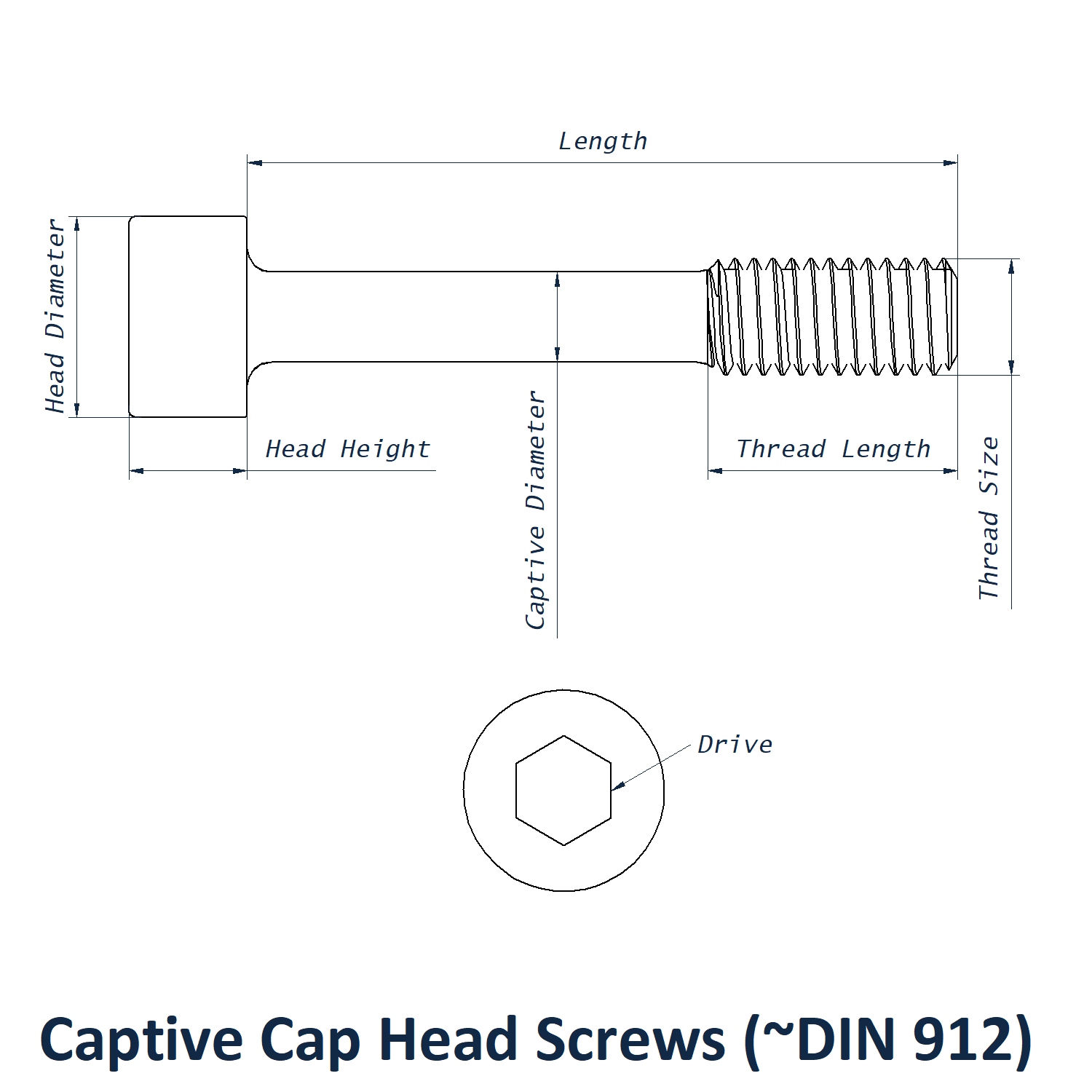

M5 x 20mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M5
- Length: 20mm
- Threaded Length: 10.0mm
- Captive Diameter: 3.8mm
- Head Diameter: 8.5mm
- Head Height: 5.0mm
- Drive: H4
- Pitch: 0.80mm
- Standard: Similar to DIN 912
- Material: A2 Stainless Steel
Key Benefits
- Captive format can reduce dropped or misplaced fasteners during servicing when installed with a suitable retaining feature.
- 10.0mm threaded length provides the portion that engages the mating internal thread.
- 5.0mm head height provides the specified socket cap head profile.
- 0.80mm metric pitch matches the stated thread specification.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. For different head styles, browse our complete Captive Screws range. We also offer countersunk captive screws as well as pan head, button head and knurled options. We can help you choose the correct option on 01233 713581.
