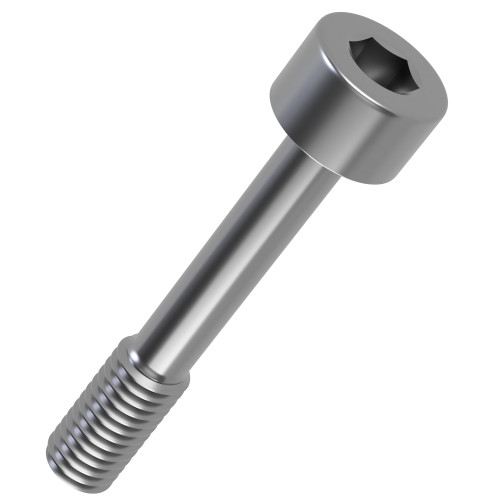

M6 x 65mm Captive Socket Cap Head Screw (~DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £6.60 | £7.92 |
| 50 - 99 | £5.87 | £7.04 |
| 100 - 249 | £5.28 | £6.34 |
| 250 - 499 | £4.80 | £5.76 |
| 500 - 999 | £4.40 | £5.28 |
| 1000 + | £3.77 | £4.53 |

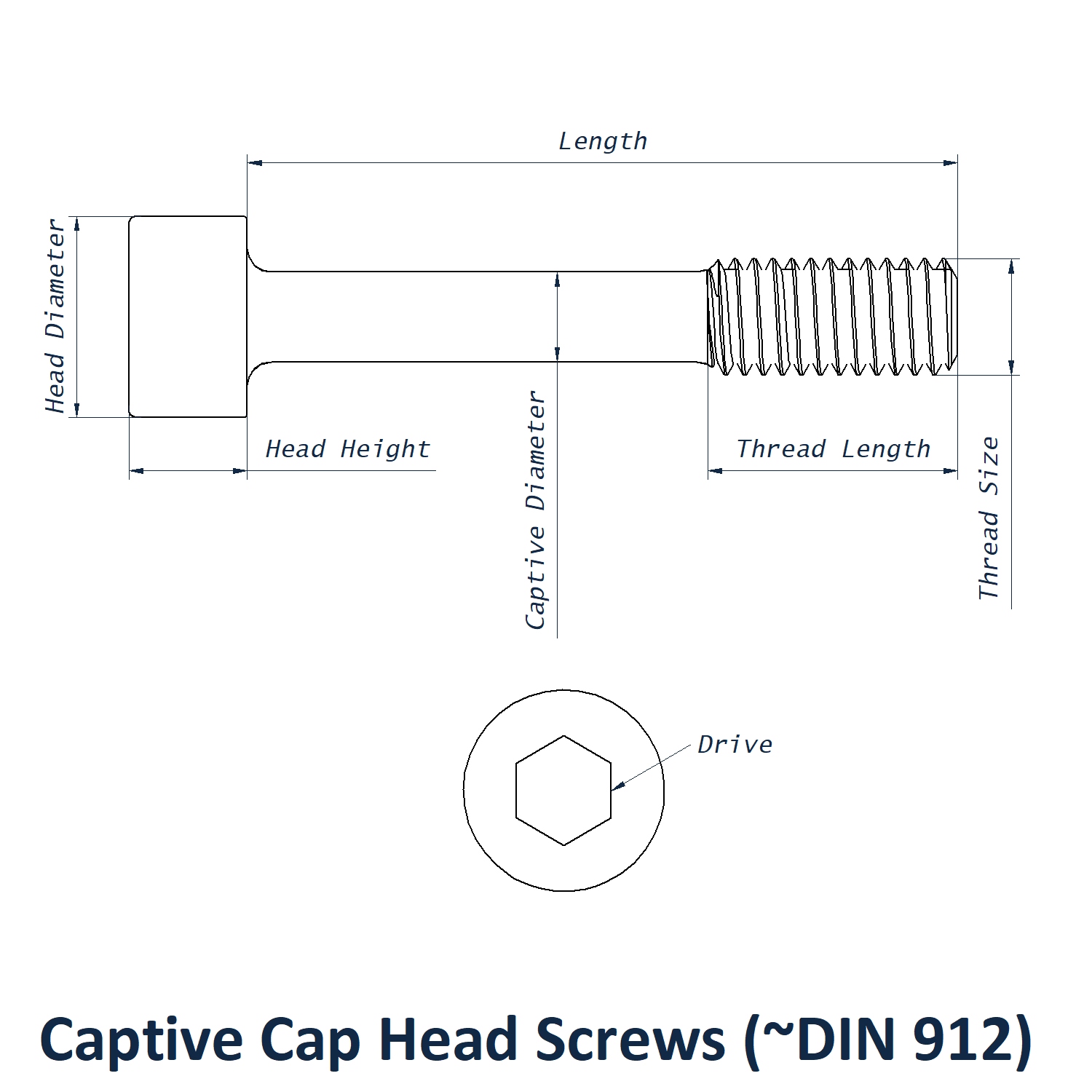

Product Specification
| Thread Size | M6 |
| Pitch | 1.00mm |
| Length | 65mm |
| Captive Diameter | 4.5mm |
| Threaded Length | 12.0mm |
| Drive | H5 |
| Head Diameter | 10.0mm |
| Head Height | 6.0mm |
| Material | A2 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M6 x 65mm Captive Socket Cap Head Screw (Similar to DIN 912) | A2 Stainless Steel | Vital Parts – HSC912CT-M6-65-A2
Fasten with accuracy using this M6 x 65mm Captive Socket Cap Head Screw, a stainless steel fixing based on the recognised DIN 912 socket cap head screw style. Designed for assemblies where the screw needs to remain with the panel or component, this part combines a 12mm threaded length with a 4.5mm captive diameter, helping support repeat access and controlled installation. The 10mm head diameter, 6mm head height, H5 drive and 1.00mm pitch make it suited to deeper housings, thicker panels and applications that need extra reach through an assembly.
Manufactured from A2 Stainless Steel with a self-colour finish, this captive cap head screw is selected for secure fastening in engineering, manufacturing and equipment maintenance environments. A2 stainless steel offers dependable corrosion resistance for indoor, workshop, engineering and general industrial use while maintaining a clean self-colour finish. The socket cap head allows installation with a hex key or socket driver, giving a positive drive interface in applications where space around the head may be limited.
What Are Captive Socket Cap Head Screws?
Captive Socket Cap Head Screws are specialist fasteners used where a screw must stay attached to a panel, cover or access point after loosening. Unlike a standard fully removable cap screw, the captive design uses a reduced section and defined captive diameter so the fixing can be retained once installed with a compatible panel, washer, sleeve or retaining feature. This helps improve safety, speeds up servicing and reduces the risk of loose fasteners falling into machinery or being lost during maintenance.
Applications and Key Industries
This M6 captive socket cap head screw is used across UK manufacturing, engineering and equipment assembly where DIN 912 style head geometry, stainless steel material and a retained fixing format are required. Common use cases include:
- Machinery and Equipment: The M6 thread size and 65mm length make this screw useful for equipment doors, removable covers and maintenance access panels.
- Captive Panel Fixings: The 4.5mm captive diameter helps the fixing remain retained in prepared assemblies, reducing dropped or misplaced fasteners during maintenance.
- Stainless Steel Assemblies: The A2 stainless construction supports indoor machinery, workshop equipment and general engineering assemblies where a neat socket cap head finish is needed.
Typical purchasers include procurement teams, design engineers, maintenance technicians, panel builders and production managers who need reliable stainless steel captive screws for repeat-access assemblies and controlled fixing points.
Why Choose This M6 x 65mm Captive Socket Cap Head Screw?
This screw is a practical choice when a standard socket cap screw could be removed and misplaced during servicing. The 12mm threaded section gives a defined engagement area while the 4.5mm captive diameter supports retention in the assembly. Because the part is Similar to DIN 912, it follows the familiar DIN 912 cap head style while providing the retained functionality required for access panels, machinery covers and specialist equipment.
Key Features
- DIN 912 style cap head: Familiar socket cap geometry with a H5 drive for secure tightening and controlled installation.
- Captive fixing design: The 4.5mm captive diameter and 12mm threaded length help keep the screw associated with the panel or component during removal.
- Durable a2 stainless steel construction: Suitable for stainless steel assemblies where strength, clean appearance and corrosion resistance are important.
- Application-specific length: The 65mm overall length is suited to where additional shank length is useful while the captive diameter supports retention in the panel.
Product Specifications
- Thread Size: M6
- Length: 65mm
- Threaded Length: 12mm
- Captive Diameter: 4.5mm
- Head Diameter: 10mm
- Head Height: 6mm
- Drive: H5
- Pitch: 1.00mm
- Standard: Similar to DIN 912
- Material: A2 Stainless Steel
- Colour: Self-colour
