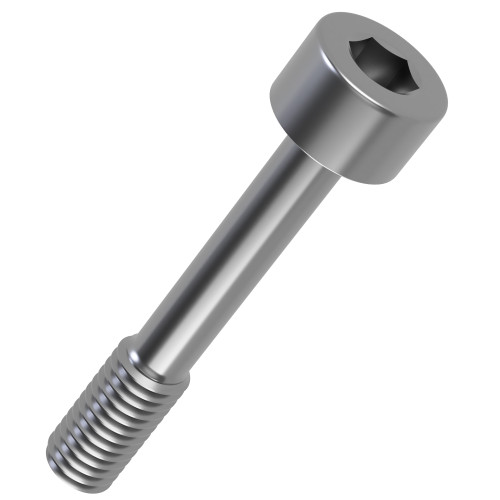

M2.5 x 18mm Cap Head Captive Screw (H2) (~DIN 912) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £4.30 | £5.16 |
| 50 - 99 | £3.83 | £4.59 |
| 100 - 249 | £3.44 | £4.13 |
| 250 - 499 | £3.12 | £3.75 |
| 500 - 999 | £2.87 | £3.44 |
| 1000 + | £2.46 | £2.95 |
£5.16 / each
Product Specification
| Thread Size | M2.5 |
| Pitch | 0.45mm |
| Length | 18mm |
| Captive Diameter | 1.8mm |
| Threaded Length | 5.0mm |
| Drive | H2 |
| Head Diameter | 4.5mm |
| Head Height | 2.5mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M2.5 x 18mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
For transport equipment, inspection panels and removable covers, this M2.5 x 18mm captive machine screw provides a retained fastening format that can reduce loose screws during servicing or repeated access. The H2 hex socket gives positive tool engagement while the 4.5mm head diameter and 2.5mm head height follow a DIN 912-style cap head geometry. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Captive Socket Cap Head Screws are specialist fasteners designed to stay attached to a panel, cover or component after the threaded portion has been loosened. A reduced captive section works with a compatible panel, washer, sleeve or retaining feature so the screw can remain retained instead of falling free.
Common Applications
- Machinery Guards: Keeps compatible screws attached to removable guards during inspection, adjustment and maintenance.
- Control Cabinets: Retains panel fixings on electrical and automation enclosures that require repeated access.
- Equipment Covers: Supports serviceable covers where loose screws could be dropped inside machinery or misplaced.
- Maintenance Panels: Helps keep fastening hardware associated with access panels during routine servicing.

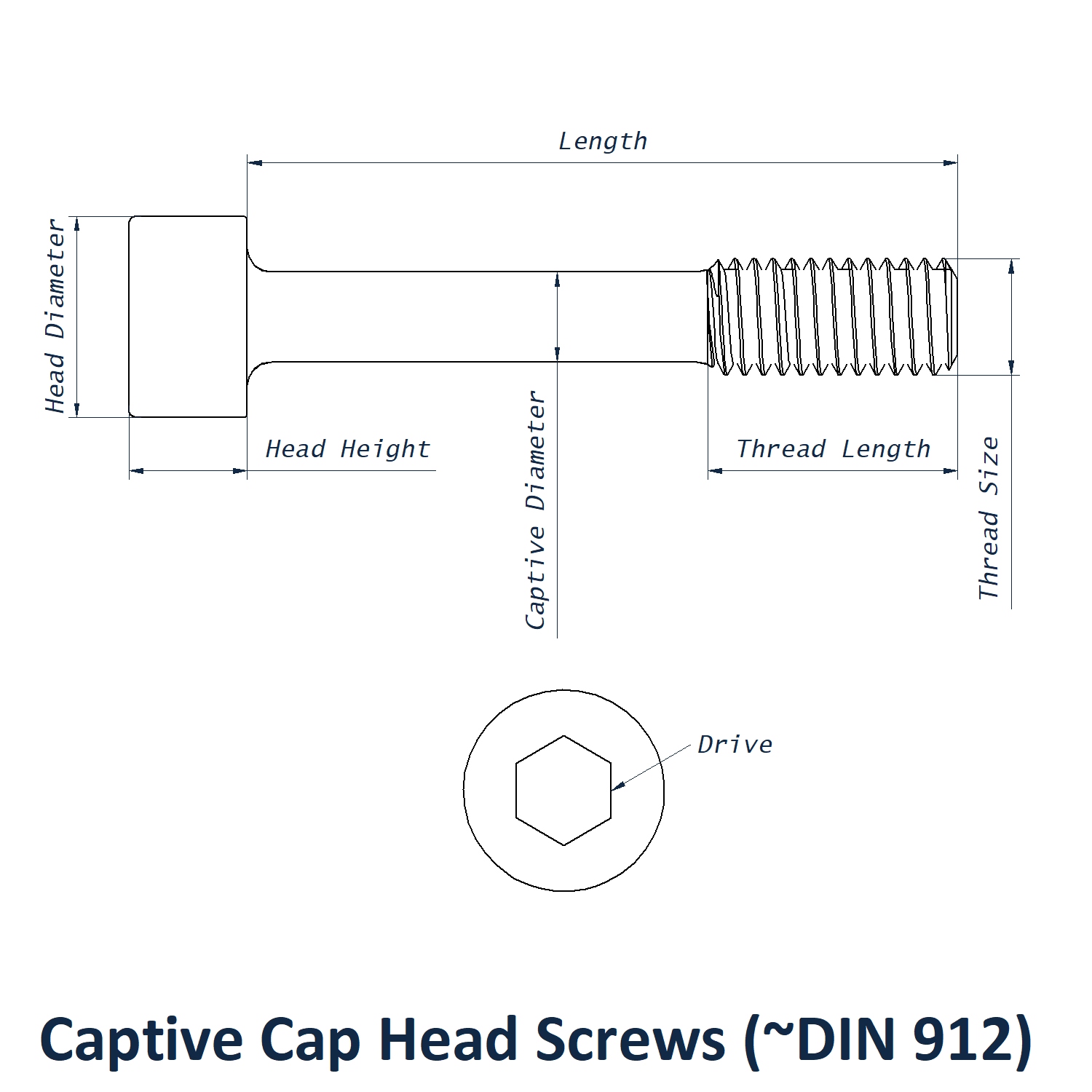

M2.5 x 18mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M2.5
- Length: 18mm
- Threaded Length: 5.0mm
- Captive Diameter: 1.8mm
- Head Diameter: 4.5mm
- Head Height: 2.5mm
- Drive: H2
- Pitch: 0.45mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- A4 Stainless Steel construction provides the specified stainless steel grade and corrosion resistance.
- M2.5 thread size with 18mm overall length provides the primary screw dimensions.
- 4.5mm head diameter gives the stated DIN 912-style cap head width.
- H2 hex socket drive provides positive engagement with a matching driver or key.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. You can compare more retained fastening styles in our Captive Screws collection, including countersunk captive screws for flush-fitting panel applications. We can help you choose the correct option on 01233 713581.
