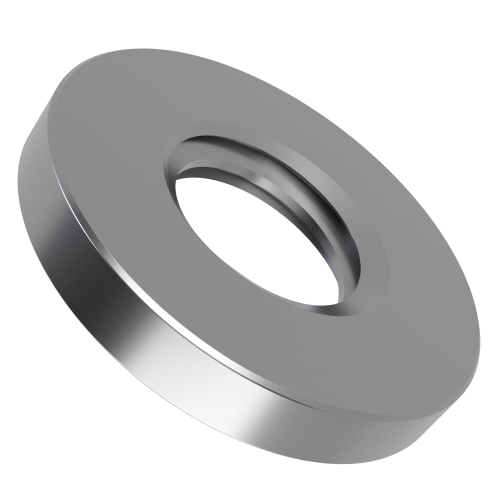

M3 x 6mm Captive Washer | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 199 | £1.14 | £1.37 |
| 200 - 499 | £0.89 | £1.07 |
| 500 - 999 | £0.72 | £0.87 |
| 1000 - 4999 | £0.62 | £0.74 |
| 5000 + | £0.57 | £0.69 |

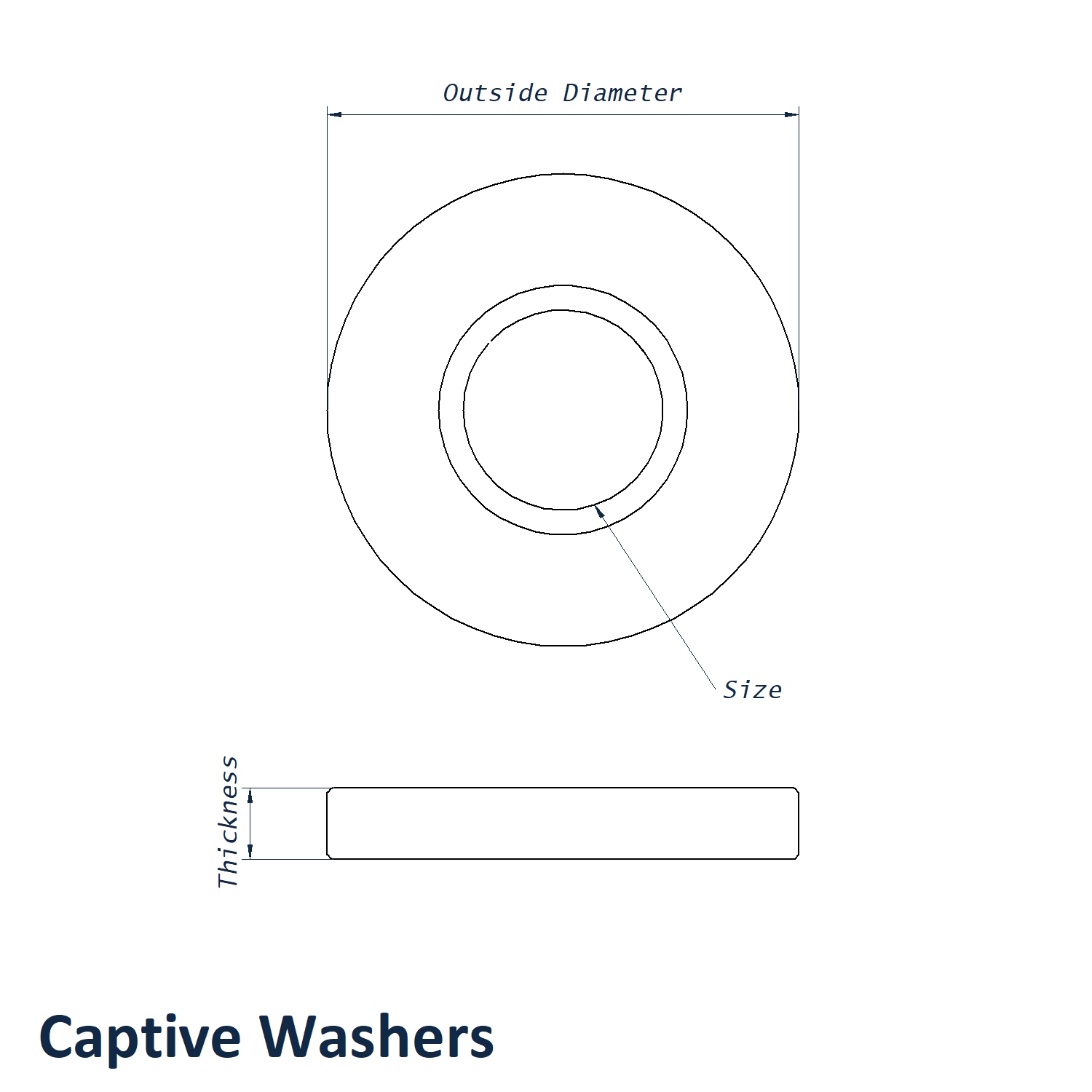

Product Specification
| Size | M3 |
| Thread Pitch | 0.50mm |
| Outside Diameter | 6mm |
| Thickness | 1.0mm |
| Material | A1 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 6mm Captive Washer | A1 Stainless Steel | Vital Parts - WCT-M3-A1
Our M3 x 6mm Captive Washer is produced from A1 Stainless Steel for reliable use with compatible M3 captive fasteners. The 6mm outside diameter provides a compact bearing surface, while the 0.50mm thread pitch and 1.0mm thickness make this washer suitable for control panels, electronic enclosures, small machinery covers and frequently accessed assemblies.
What Are Captive Washers?
A captive washer is intended to stay attached to its matching screw rather than separating when the fixing is undone. This retained arrangement supports quicker assembly and maintenance, prevents the washer from being lost inside equipment and helps maintain a consistent bearing surface beneath the screw head.
Common Applications
- Control Panels: Suitable for removable covers and access plates secured with M3 captive hardware.
- Electronic Enclosures: Keeps the washer retained during servicing of compact cases and housings.
- Small Machinery: Ideal for guards and adjustment covers that are removed periodically.
- Production Assembly: Supports efficient fitting where separate loose washers would slow installation.
Technical Specifications
- Size: M3
- Outside Diameter: 6mm
- Thread Pitch: 0.50mm
- Thickness: 1.0mm
- Material: A1 Stainless Steel
