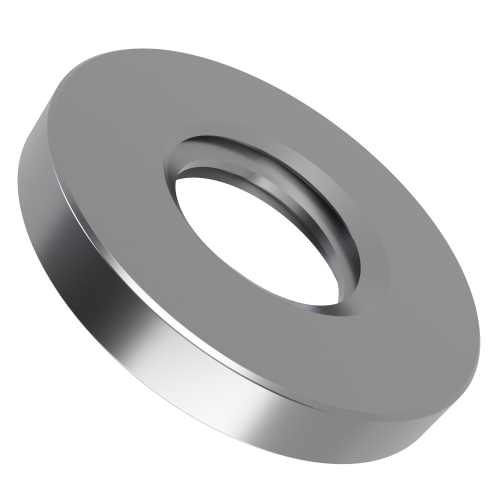

M8 x 16mm Captive Washer | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 199 | £1.57 | £1.89 |
| 200 - 499 | £1.23 | £1.47 |
| 500 - 999 | £1.00 | £1.20 |
| 1000 - 4999 | £0.85 | £1.02 |
| 5000 + | £0.78 | £0.94 |

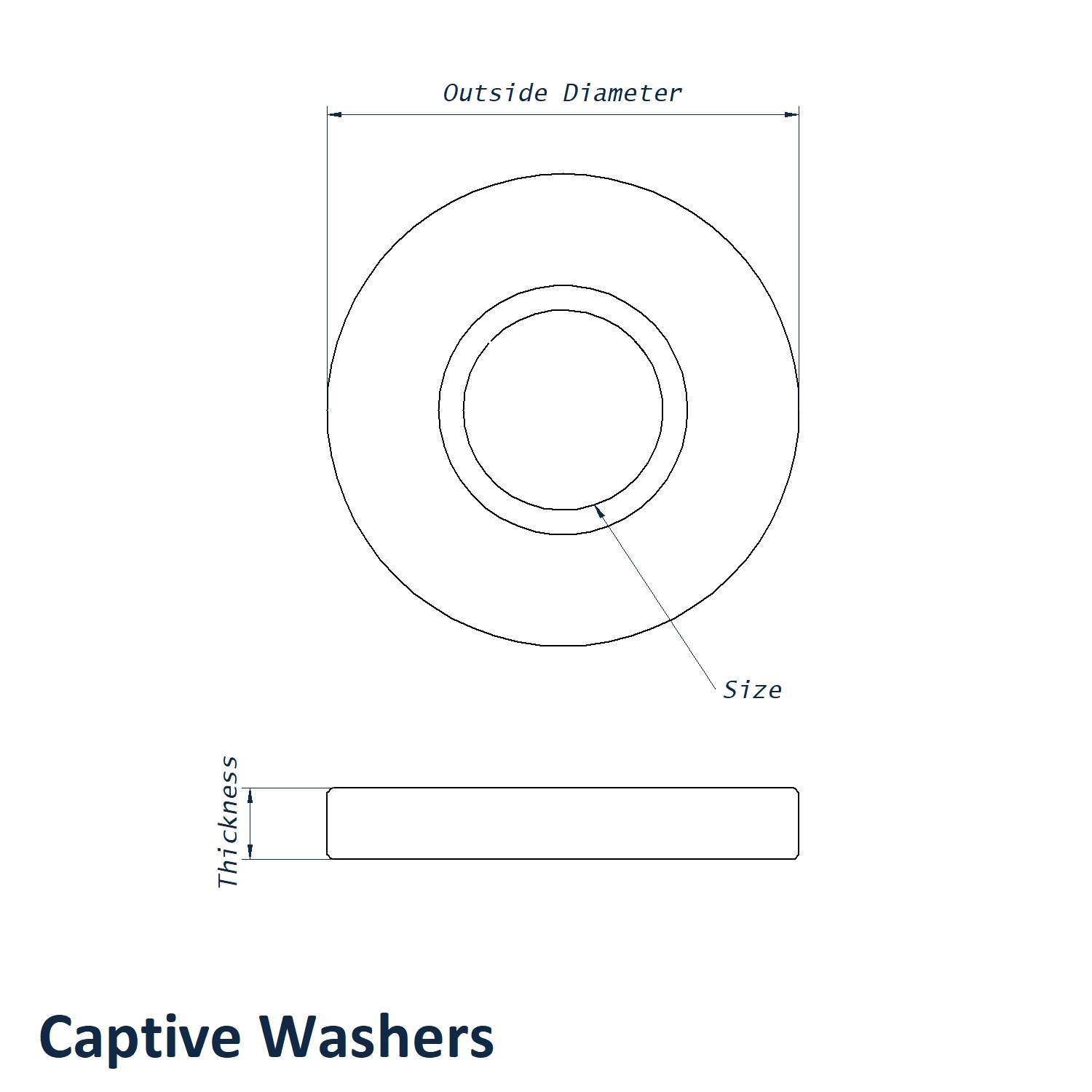

Product Specification
| Size | M8 |
| Thread Pitch | 1.25mm |
| Outside Diameter | 16mm |
| Thickness | 2.0mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M8 x 16mm Captive Washer | A4 Stainless Steel | Vital Parts - WCT-M8-A4
Our M8 x 16mm Captive Washer is manufactured from A4 Stainless Steel for larger retained fastening points exposed to wet or corrosive conditions. The 16mm outside diameter and 2.0mm thickness provide a broad bearing area, while the 1.25mm thread pitch corresponds with compatible M8 captive screws used on marine guards, outdoor machinery, access hatches and stainless frames.
What Are Captive Washers?
Large A4 captive washers remain retained beneath the screw head, allowing a panel or guard to be removed without separating the washer from the fastener. This assists safe servicing and helps distribute clamping pressure across the mounting surface, with A4 stainless steel selected for increased corrosion resistance.
Common Applications
- Marine Guards: Suitable for larger protective panels on coastal and marine equipment.
- Outdoor Machinery: Provides retained M8 washer hardware for weather-exposed assemblies.
- Access Hatches: Ideal for frequently opened covers in damp working areas.
- Stainless Frames: Supports corrosion-resistant fabrication and equipment construction.
Technical Specifications
- Size: M8
- Outside Diameter: 16mm
- Thread Pitch: 1.25mm
- Thickness: 2.0mm
- Material: A4 Stainless Steel
