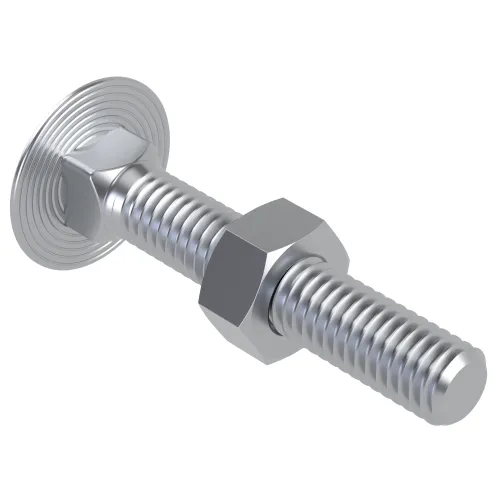

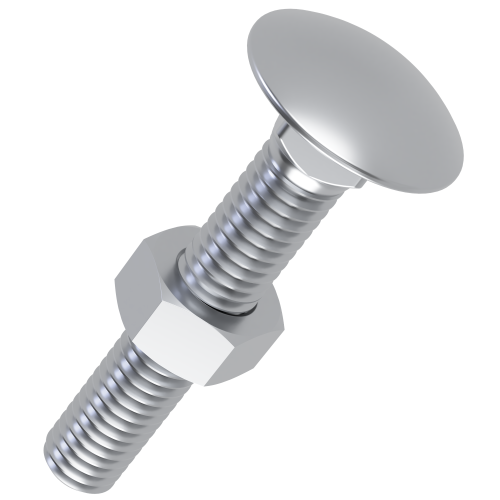

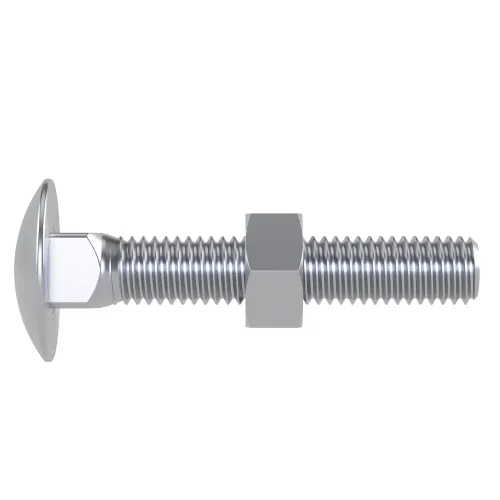

M10 x 90mm Coach Bolt & Nut (DIN 603) - Full Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.58 | £0.70 |
| 100 - 999 | £0.52 | £0.62 |
| 1000 - 9999 | £0.44 | £0.53 |
| 10000 + | £0.37 | £0.44 |
£0.70 / each
Product Specification
| Thread Size | M10 |
| Length | 90mm |
| Thread Length | Fully Threaded |
| Pitch | 1.50mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 24.65mm |
| Head Height | 5.38mm |
| Square Width | 10mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M10 x 90mm Coach Bolt & Nut (DIN 603) | Fully Threaded | CE Certified 4.8 Steel BZP
The M10 x 90mm Coach Bolt & Nut is made for portable structures, including folding stands, modular frames and temporary timber assemblies that require secure fixing through timber, plates or bracketry. Its square section below the head resists spinning, making installation easier from the nut side.
The square neck allows the bolt to grip timber fibres or a matching square aperture before final tightening. This makes the M10 x 90mm size useful for assemblies where only one side is easy to access during installation. The DIN 603 bolt is supplied with a matching DIN 555 nut for a complete metric fixing set. The CE certified specification supports consistent use in regulated supply chains and trade counters. This size suits projects where a stronger fixing is needed without moving to larger heavy section hardware.
Common Applications
- Securing deeper timber sections, spacer blocks and braced frames using an M10 metric coach bolt.
- Portable structures where the round head needs to remain neat and low snag.
- Repairing existing coach bolt installations with a supplied DIN 555 nut for a complete fixing set.
- Building through-fixing where extra reach is required on 90mm coach bolt installations.

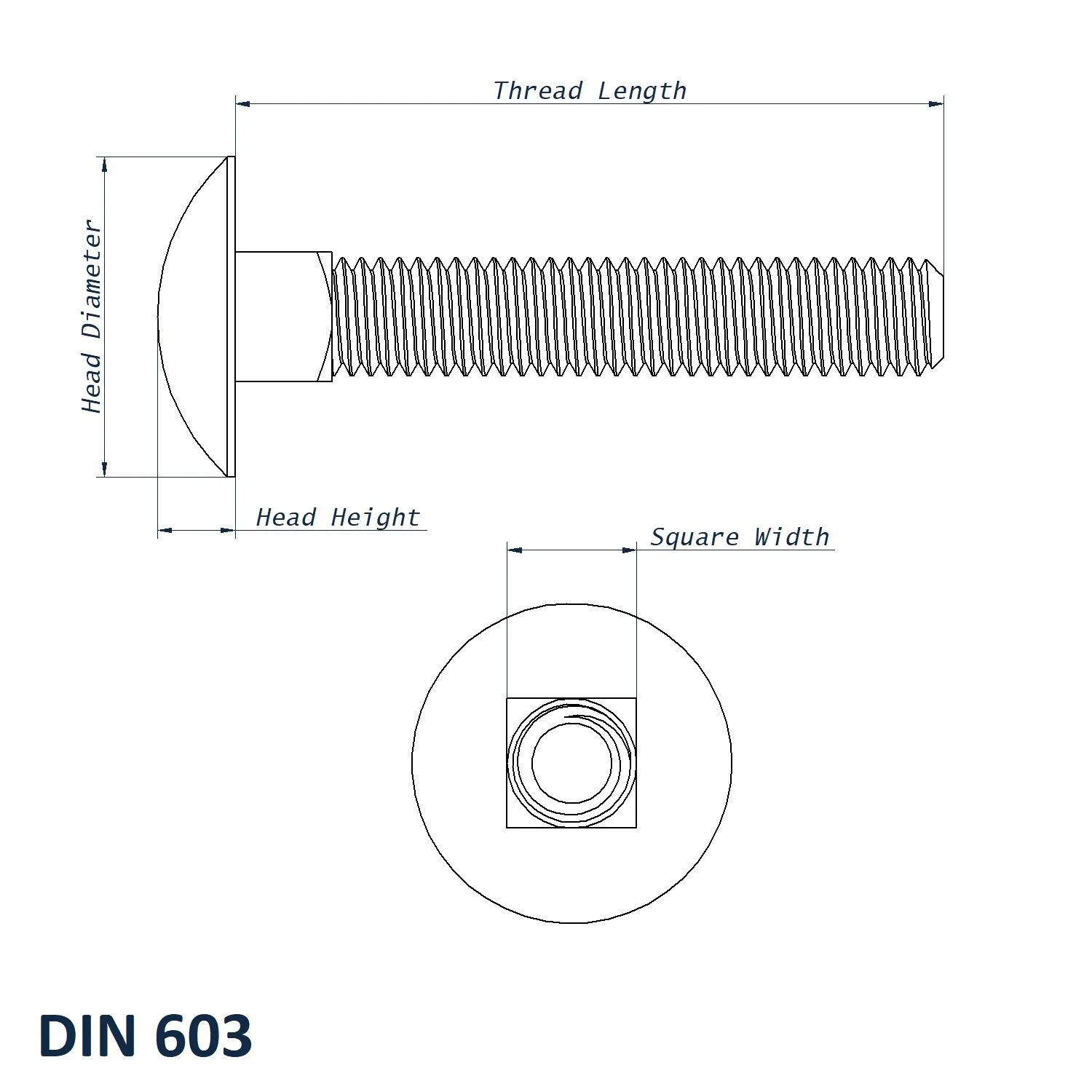

M10 x 90mm Coach Bolt & Nut Dimensions
- Thread Size: M10
- Length: 90mm
- Threaded Length: Fully Threaded
- Pitch: 1.50mm
- Head Diameter: 24.65mm
- Head Height: 5.38mm
- Square Width: 10mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
