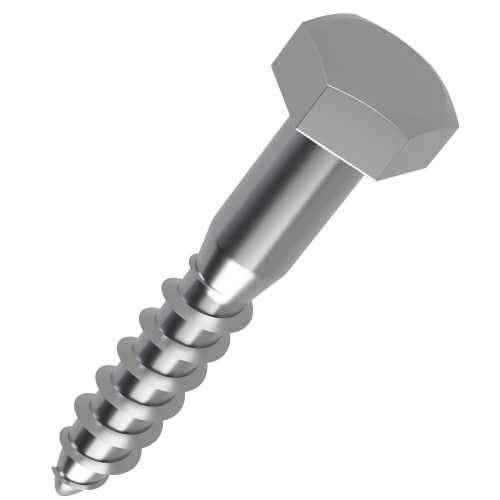

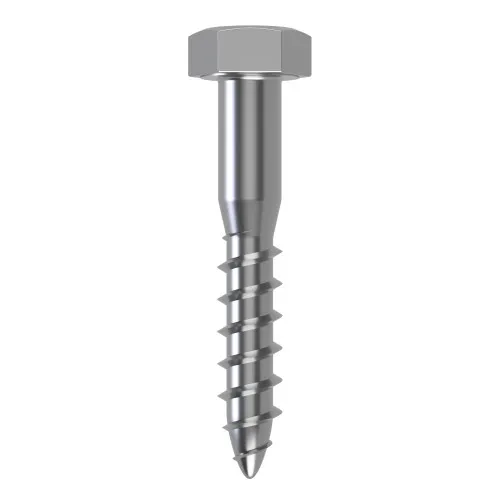

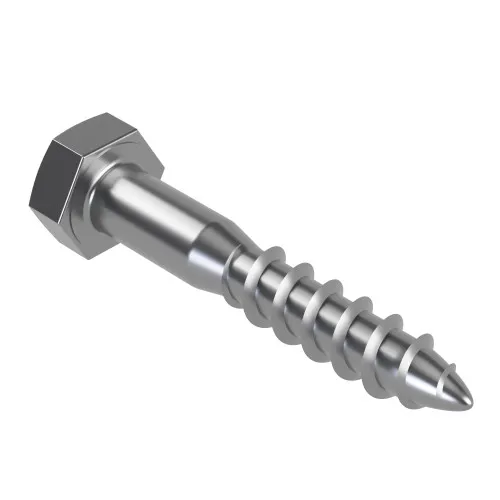

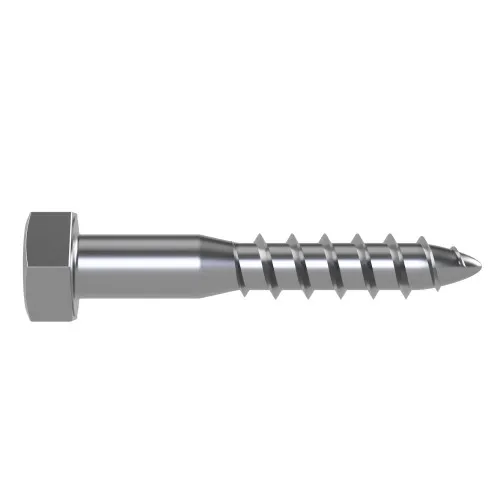

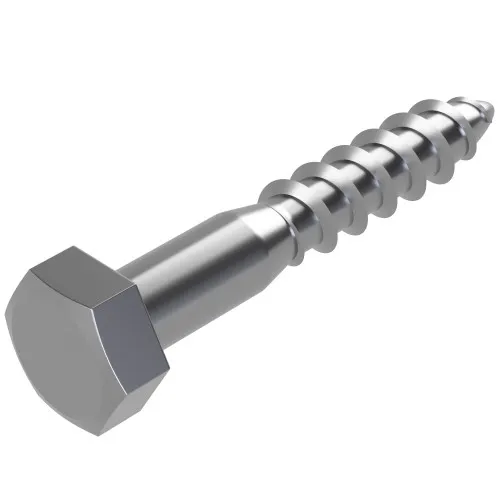

7mm x 35mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £4.12 | £4.94 |
| 50 - 99 | £3.71 | £4.45 |
| 100 - 499 | £3.34 | £4.01 |
| 500 - 999 | £2.84 | £3.41 |
| 1000 + | £2.06 | £2.47 |
£4.94 / each
.png)
Product Specification
| Size | 7mm |
| Length | 35mm |
| Head Height | 5mm |
| Thread Length | 21mm |
| Material | A4 Stainless Steel |
| Across Flats | 12mm |
| Shank Diameter | 7mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M7 x 35mm Coach Screw DIN 571 | A4 Stainless Steel
Made for trade installation, this 7mm x 35mm Coach Screw gives a robust hex head drive, 12mm across flats and a pointed thread profile for fixing into timber with a correctly prepared pilot hole. The 35mm length helps provide the reach required for timber backing plate installation without moving away from the DIN 571 coach screw pattern.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. Its 12mm across flats head makes tool selection straightforward for site work, maintenance benches and production assembly areas. The 7mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Decking subframes and outdoor timber supports
- Gate hinges, straps and latch plates
- Marine-adjacent decking, posts and timber rails
- Maintenance of wooden platforms and service walkways

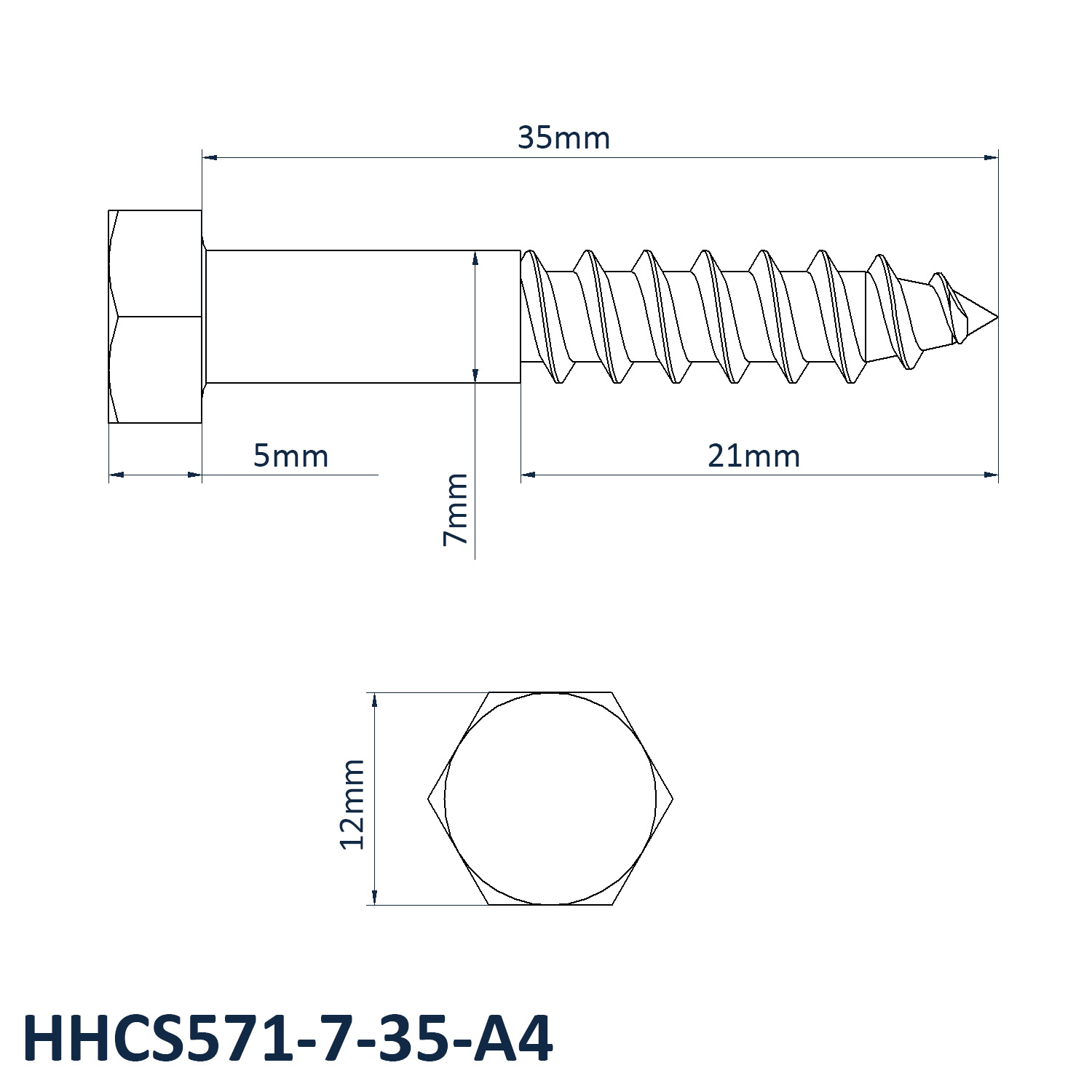

M7 x 35mm Coach Screw Dimensions
- Size: 7mm
- Length: 35mm
- Across Flats: 12mm
- Head Height: 5mm
- Thread Length: 21mm
- Shank Diameter: 7mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
For best results, drill a pilot hole before installation. Our coach screw guide explains sizing, pilot hole selection and typical uses for timber fixing work. Click here to read our coach screws guide.
Browse the complete Coach Screws DIN 571 range and visit our coach screws blog guide for installation guidance.
