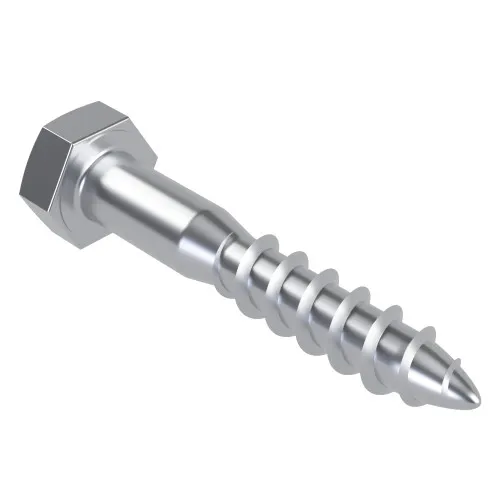

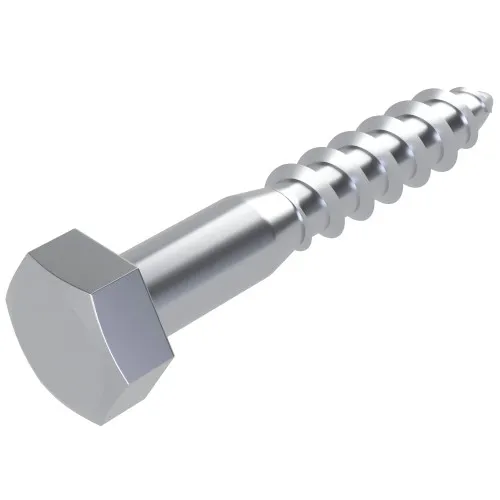

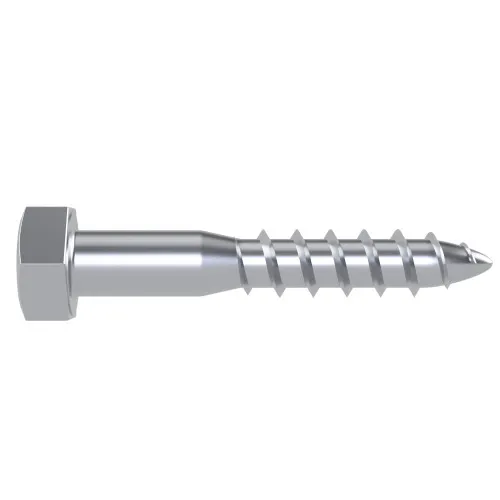

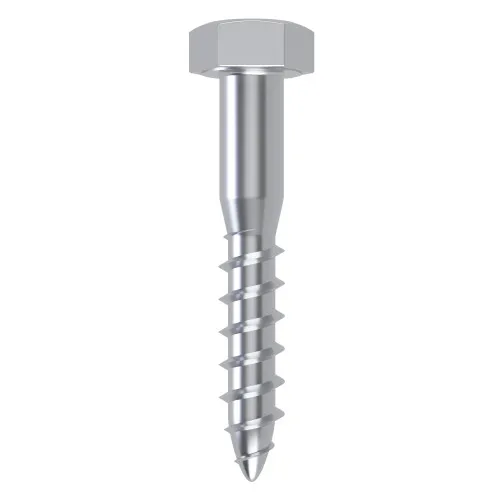

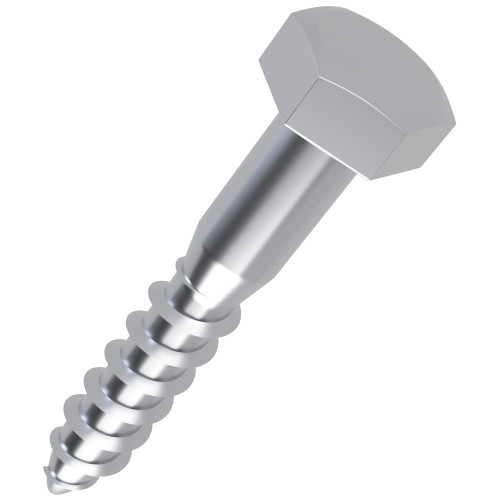

8mm x 30mm Coach Screw (DIN 571) | 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.19 | £0.23 |
| 50 - 99 | £0.17 | £0.21 |
| 100 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.12 | £0.15 |
| 1000 + | £0.06 | £0.07 |
£0.23 / each
Product Specification
| Size | 8mm |
| Length | 30mm |
| Head Height | 5.5mm |
| Thread Length | 18mm |
| Material | 4.8 Steel BZP |
| Across Flats | 13mm |
| Shank Diameter | 8mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M8 x 30mm Coach Screw DIN 571 | 4.8 Steel BZP
This M8 coach screw is sized at 8mm x 30mm and manufactured to DIN 571, giving installers a clear specification for structural timber assemblies, brackets and support plates. It gives specifiers a precise M8 coach screw option for timber projects requiring 4.8 Steel BZP.
The bright zinc plated 4.8 steel construction gives practical surface protection for workshops, production areas and internal joinery where stainless steel is not required. The partly threaded body helps pull mating components together, which is useful when clamping brackets, plates or timber sections into position. The 8mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Construction timberwork requiring a DIN 571 profile
- Steel plates secured into structural timber
- BZP coach screw installation for brackets and support plates
- Bracket fixing on commercial maintenance projects

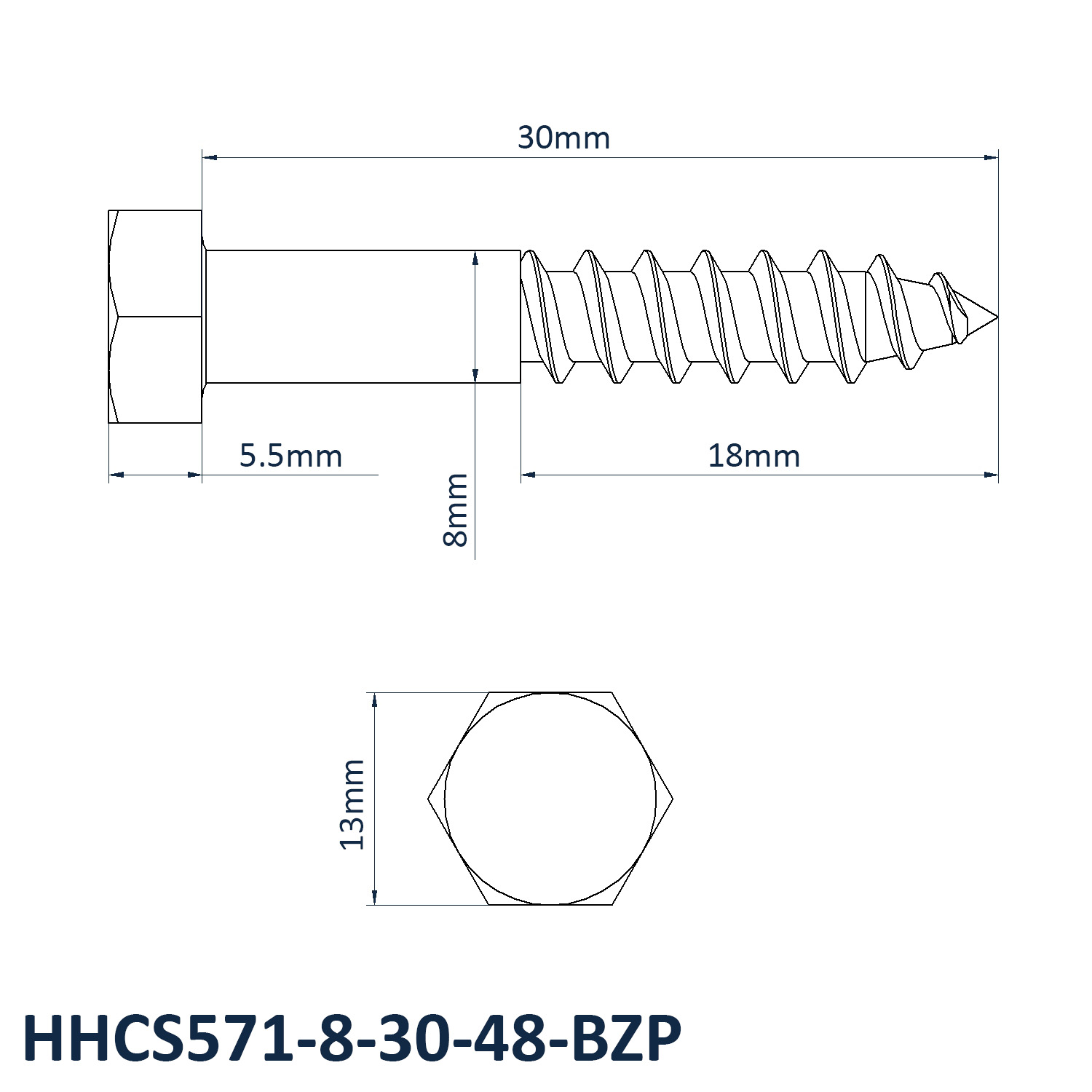

M8 x 30mm Coach Screw Dimensions
- Size: 8mm
- Length: 30mm
- Across Flats: 13mm
- Head Height: 5.5mm
- Thread Length: 18mm
- Shank Diameter: 8mm
- Material: 4.8 Steel BZP
- Standard: DIN 571
Coach Screw Buying Guide
Pilot holes are especially important in hardwoods, dense treated timber and fixings close to an edge. This helps improve alignment and reduce splitting. Click here to read our coach screws guide.
Explore the full DIN 571 Coach Screws range and use our coach screw guide when comparing sizes, pilot holes and applications.
