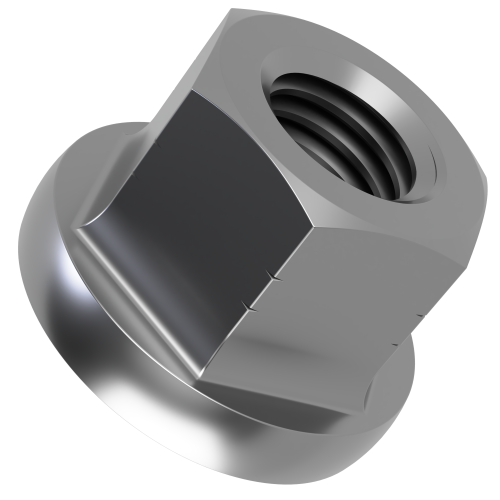

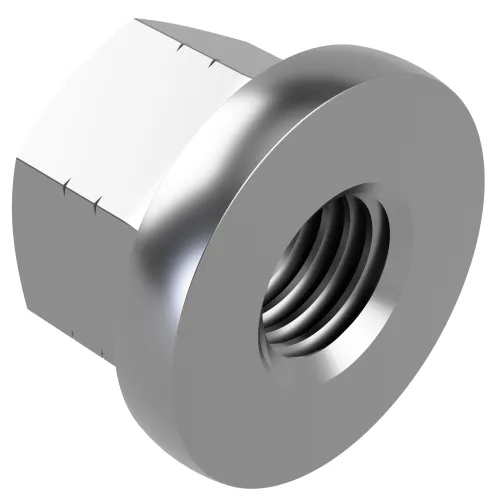

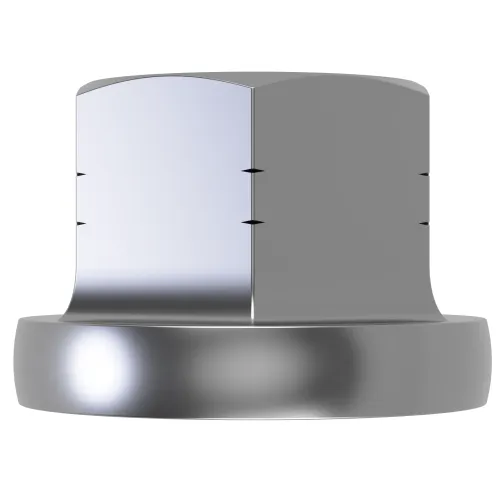

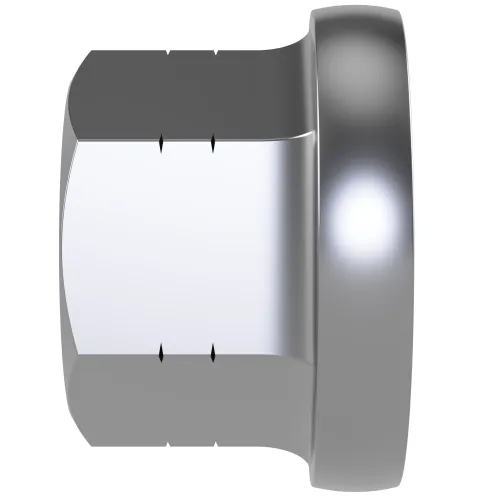

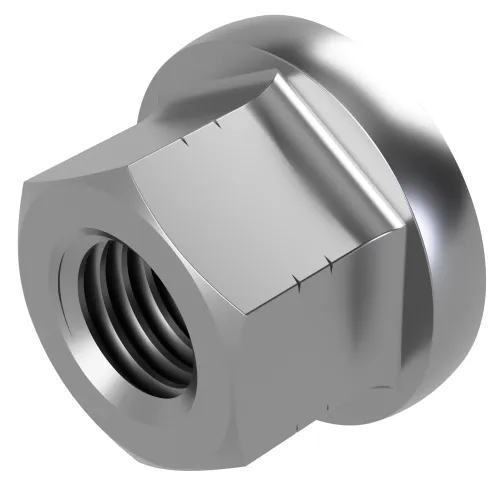

M24 Collar Nut DIN 6331 | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £16.68 | £20.02 |
| 100 - 999 | £13.90 | £16.68 |
| 1000 - 9999 | £10.43 | £12.51 |
| 10000 + | £9.27 | £11.12 |
£20.02 / each
.png)

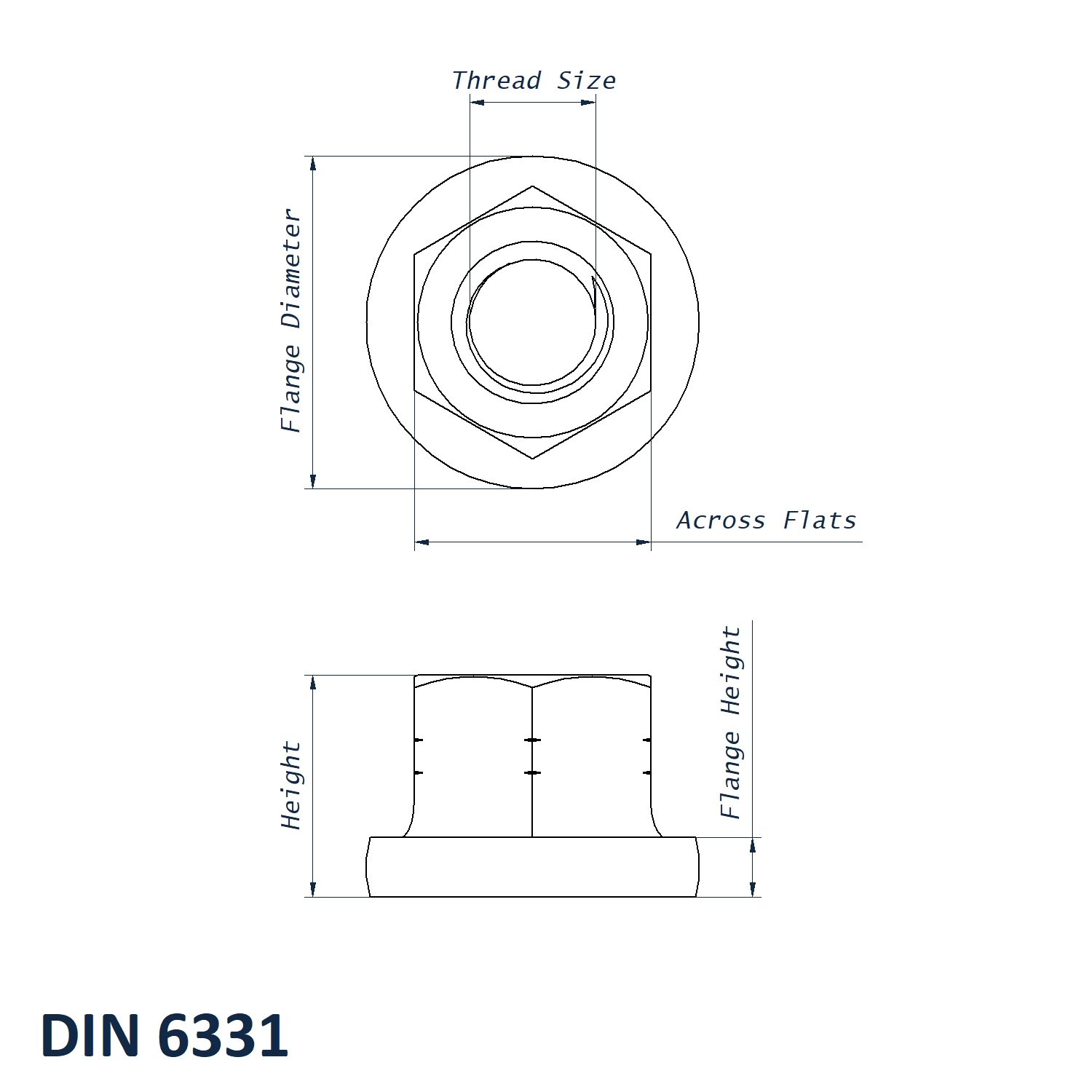

Product Specification
| Across Flats | 36mm |
| Flange Diameter | 25.90mm |
| Flange Height | 6.0mm |
| Height | 36mm |
| Material | A2 Stainless Steel |
| Standard | DIN 6331 |
| Thread Size | M24 |
Frequently Bought Together
Total Price: £0.00
M24 Collar Nut DIN 6331 | A2 Stainless Steel | CN6331-M24-A2
This M24 Collar Nut is manufactured from A2 Stainless Steel to DIN 6331. The integrated collar provides a broader bearing surface than a standard hex nut, helping to spread the clamping load across the mating surface while providing a robust fastening solution.
What are Collar Nuts DIN 6331?
DIN 6331 Collar Nuts are high-profile hex nuts with an integral flange or collar at the base. They are commonly used in clamping, fixture and machine-building applications where a larger contact area and a strong, accessible hex drive are required.
Technical Specifications:
- Thread Size: M24
- Height: 36mm
- Flange Diameter: 25.90mm
- Flange Height: 6.0mm
- Across Flats: 36mm
- Material: A2 Stainless Steel
- Standard: DIN 6331
Applications:
- Machine and equipment assembly
- Jigs, fixtures and workholding systems
- Industrial clamping applications
- General engineering and maintenance
Benefits:
- Integral collar helps distribute clamping pressure over a wider area
- Hexagonal profile allows straightforward installation using standard tools
- A2 Stainless Steel construction provides good corrosion resistance
- Manufactured to DIN 6331 for consistent dimensional compatibility
Why Buy from Vital Parts?
Vital Parts supplies a broad range of industrial fasteners and engineering components, with support available to help identify the correct size, material and specification for your application.
Contact us today at 01233 713581 to explore our full range of options or request a sample to test the quality firsthand.
