M30 Collar Nut DIN 6331 | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £49.05 | £58.86 |
| 100 - 999 | £40.88 | £49.05 |
| 1000 - 9999 | £30.66 | £36.79 |
| 10000 + | £27.25 | £32.70 |
£58.86 / each
.png)

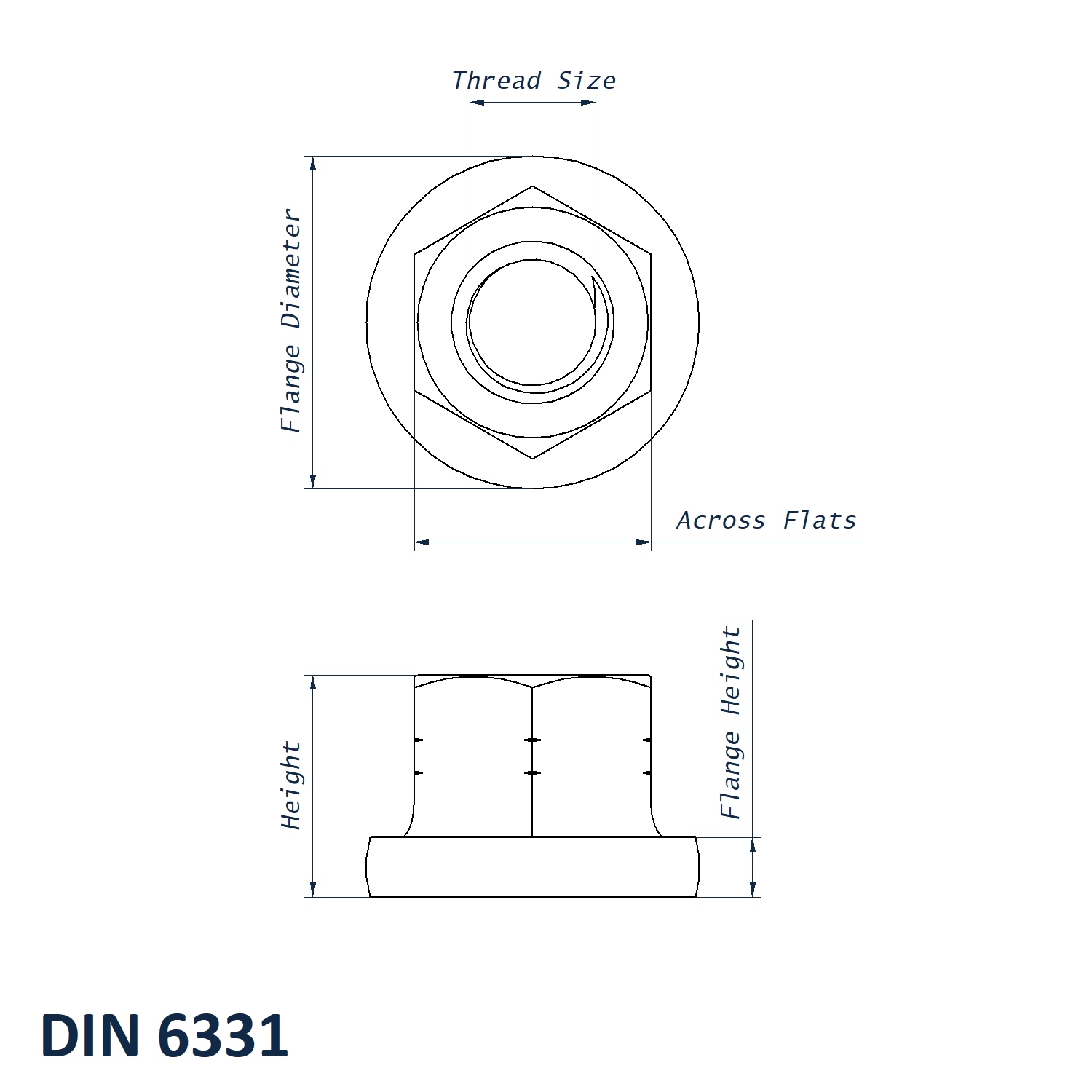

Product Specification
| Across Flats | 46mm |
| Flange Diameter | 32.40mm |
| Flange Height | 8.0mm |
| Height | 45mm |
| Material | A4 Stainless Steel |
| Standard | DIN 6331 |
| Thread Size | M30 |
Frequently Bought Together
Total Price: £0.00
M30 Collar Nut DIN 6331 | A4 Stainless Steel | CN6331-M30-A4

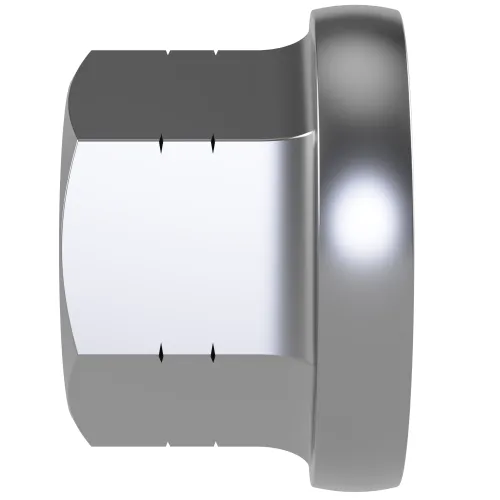

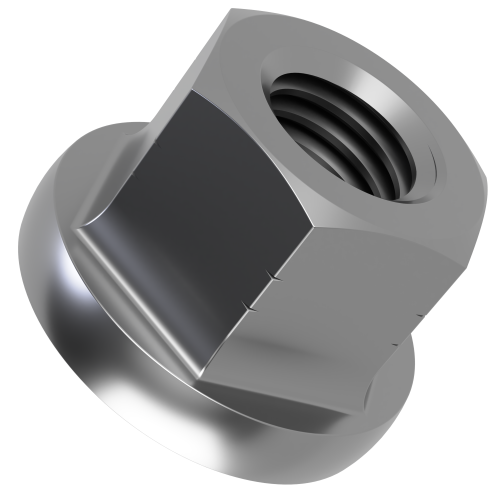

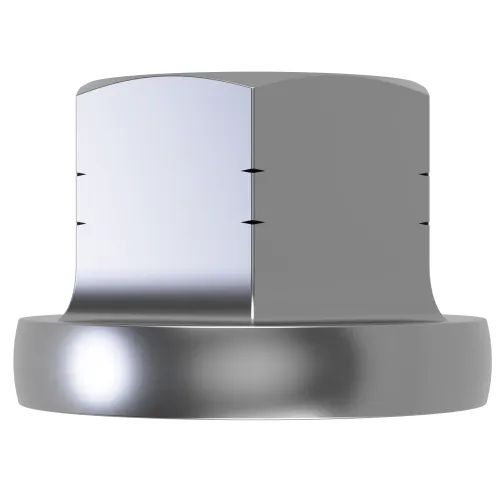

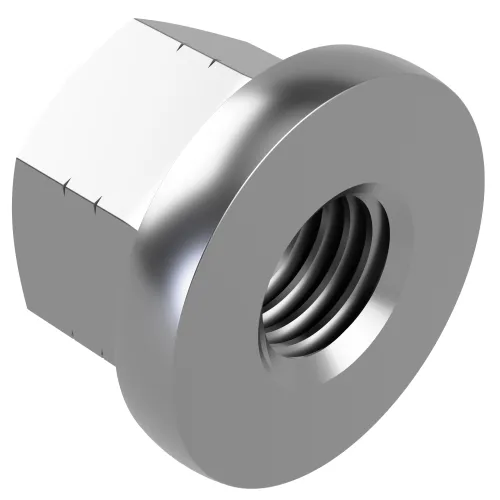

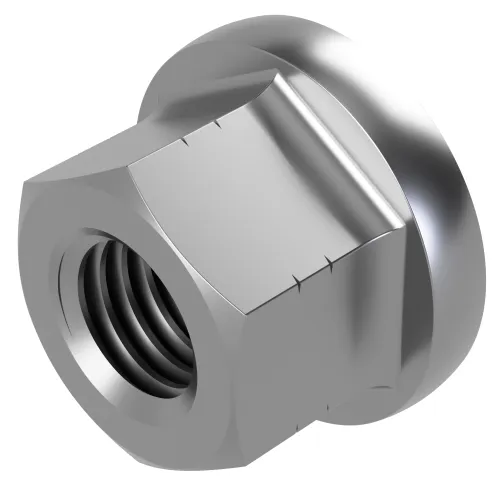

This M30 Collar Nut is manufactured from A4 Stainless Steel to DIN 6331. The integrated collar provides a broader bearing surface than a standard hex nut, helping to spread the clamping load across the mating surface while providing a robust fastening solution.
What are Collar Nuts DIN 6331?
DIN 6331 Collar Nuts are high-profile hex nuts with an integral flange or collar at the base. They are commonly used in clamping, fixture and machine-building applications where a larger contact area and a strong, accessible hex drive are required.
Technical Specifications:
- Thread Size: M30
- Height: 45mm
- Flange Diameter: 32.40mm
- Flange Height: 8.0mm
- Across Flats: 46mm
- Material: A4 Stainless Steel
- Standard: DIN 6331
Applications:
- Machine and equipment assembly
- Jigs, fixtures and workholding systems
- Industrial clamping applications
- General engineering and maintenance
Benefits:
- Integral collar helps distribute clamping pressure over a wider area
- Hexagonal profile allows straightforward installation using standard tools
- A4 Stainless Steel construction provides good corrosion resistance
- Manufactured to DIN 6331 for consistent dimensional compatibility
