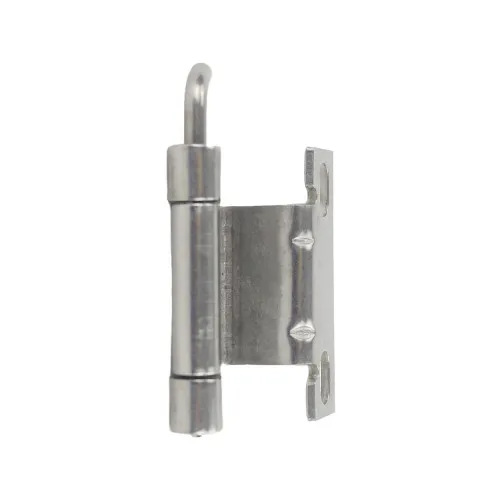

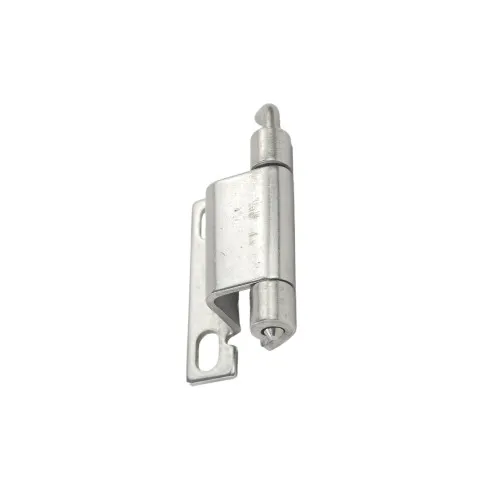

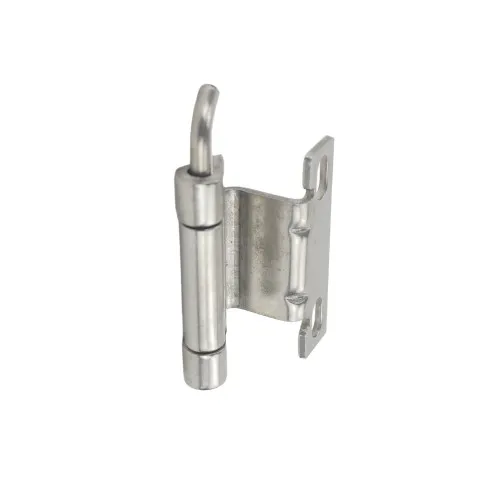

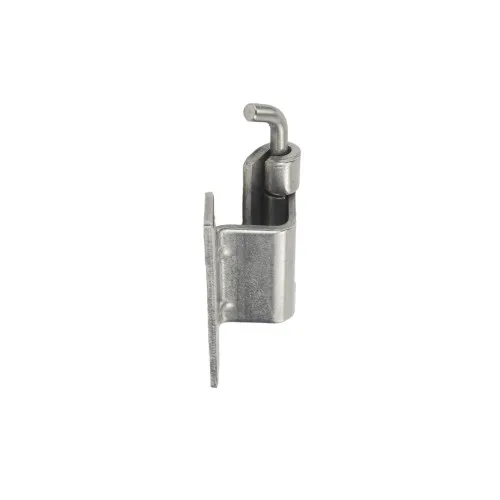

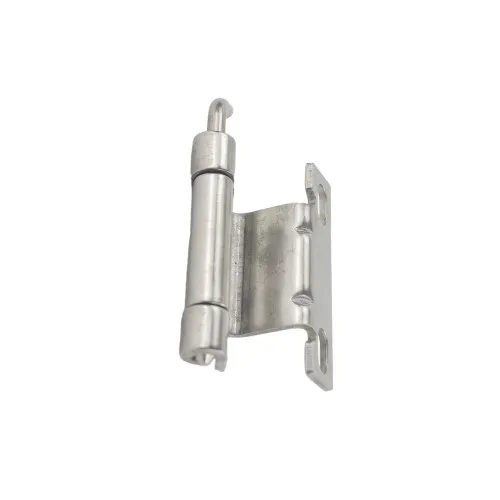

60mm x 35mm Concealed Hinge with Removable Pin - Zinc Plated Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 9 | £7.52 | £9.02 |
| 10 - 24 | £7.39 | £8.87 |
| 25 - 49 | £7.04 | £8.45 |
| 50 - 99 | £6.19 | £7.43 |
| 100 + | £4.88 | £5.86 |
Product Stock

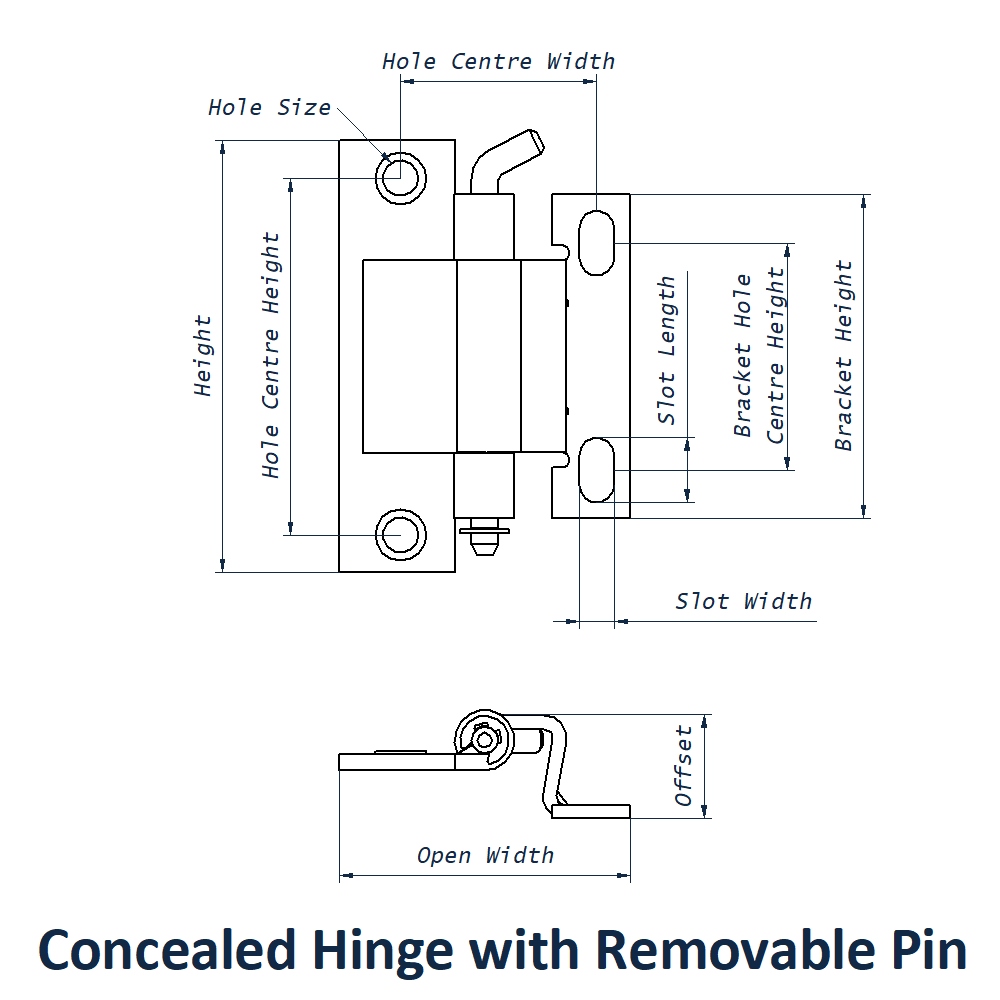

| Product Specifications | HIN434 |
|---|---|
| Height | 60mm |
| Open Width | 35.0mm |
| Offset | 19.5mm |
| Hole Size | No Hole |
| Hole Centre Height | N/A |
| Hole Centre Width | N/A |
| Bracket Hole Centre Height | 42mm |
| Bracket Height | 60mm |
| Slot Length | 12mm |
| Slot Width | 6.5mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This Concealed Hinge with Removable Pin has a Height of 60mm, an Open Width of 35mm and an Offset measurement of 19.5mm. It is made from Zinc Plated Steel which makes it ideal for applications such as internal, enclosure and machinery doors. This Concealed Hinge with Removable Pin has a Hole Size of No Hole, a Hole Centre Height of N/A and a Hole Centre Width of N/A. It also features a Bracket Hole Centre Height of 42mm, a Bracket Height of 60mm, a Slot Length of 12mm and a Slot Width of 6.5mm. This Hinge has a 120° opening angle which allows the user to gain access to the application with ease. The Radial Load of this Hinge is 350N and the Axial Load is 778N.
